Power Jet-Light 3 x 36 W IP 54
Operating Manual 18 GB

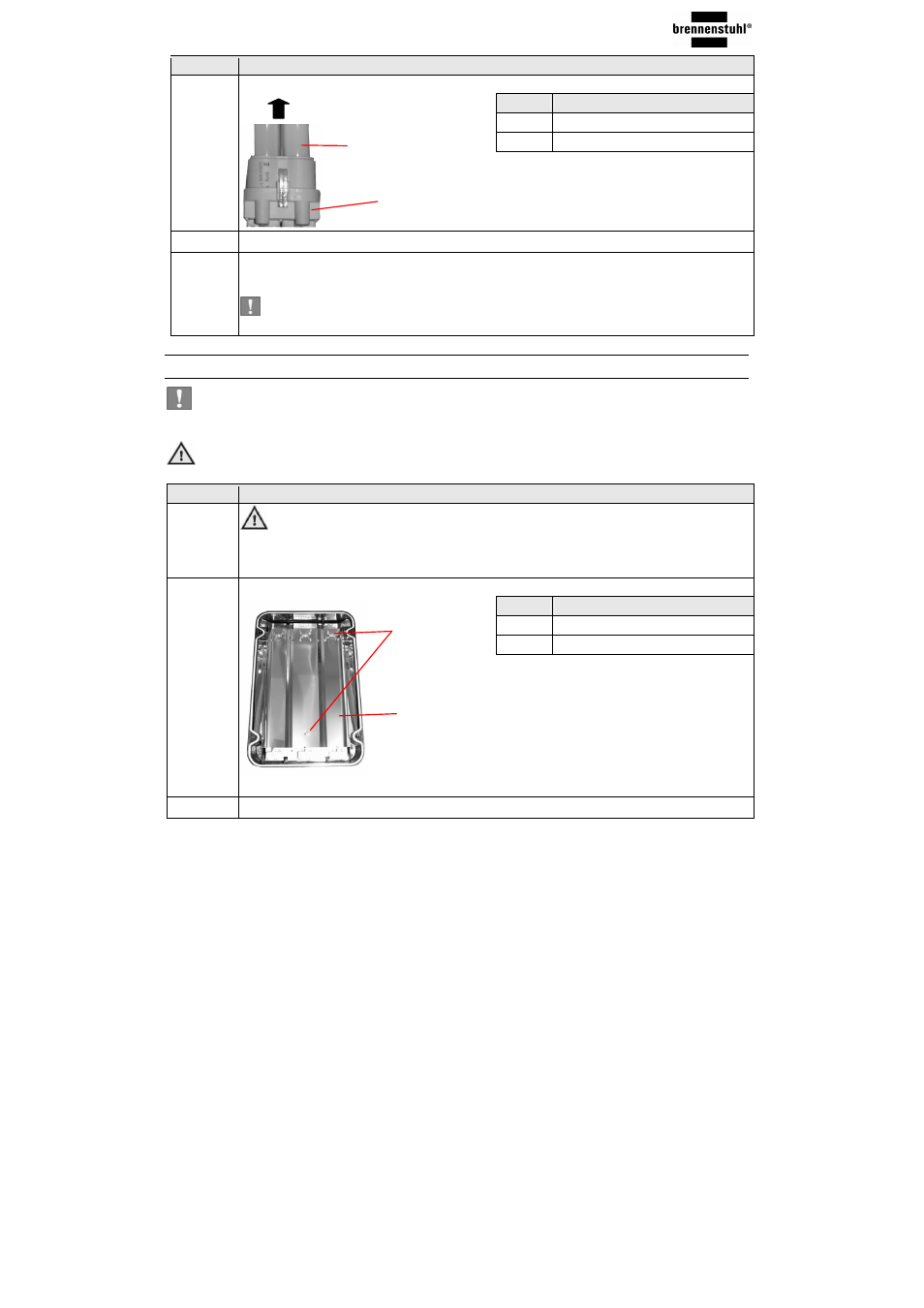

Step Activity
Now pull the illuminant upwards towards the clamp
Pos. Name
4 Illuminant
5 Clamp
3
4 Insert the new illuminant downwards with gentle pressure.
5 Lay the protective cover on the casing. Screw in the 4 protective cover bolts into the
protective cover. Push the seal over the protective cover again.
IMPORTANT: Please note the correct position of the seal between the casing and the
protective cover
6.3 Replace wiring
IMPORTANT: Damaged wiring should only be replaced with similar wiring by the manufacturer,
manufacturer’s service representative or similar authorized person.
DANGER: Such interventions may mean danger to life through electric attack.
Step Activity
1
DANGER: Pull the mains plug before opening the work lamp!
Remove the illuminant (See chapter change illuminant step 1-3)
Unscrew the 6 reflector screws. Carefully remove the reflector.
Pos. Name
17 Reflector screw
18 Reflector
2
A metal plate is present under the reflector.
3 Unscrew the bolts from the metal plate. Position the metal plate.
5
4
18
17
