Lingenfelter L850181410 Camaro Grill Insert v0.8 - Manual (Page 6)

Page 5.

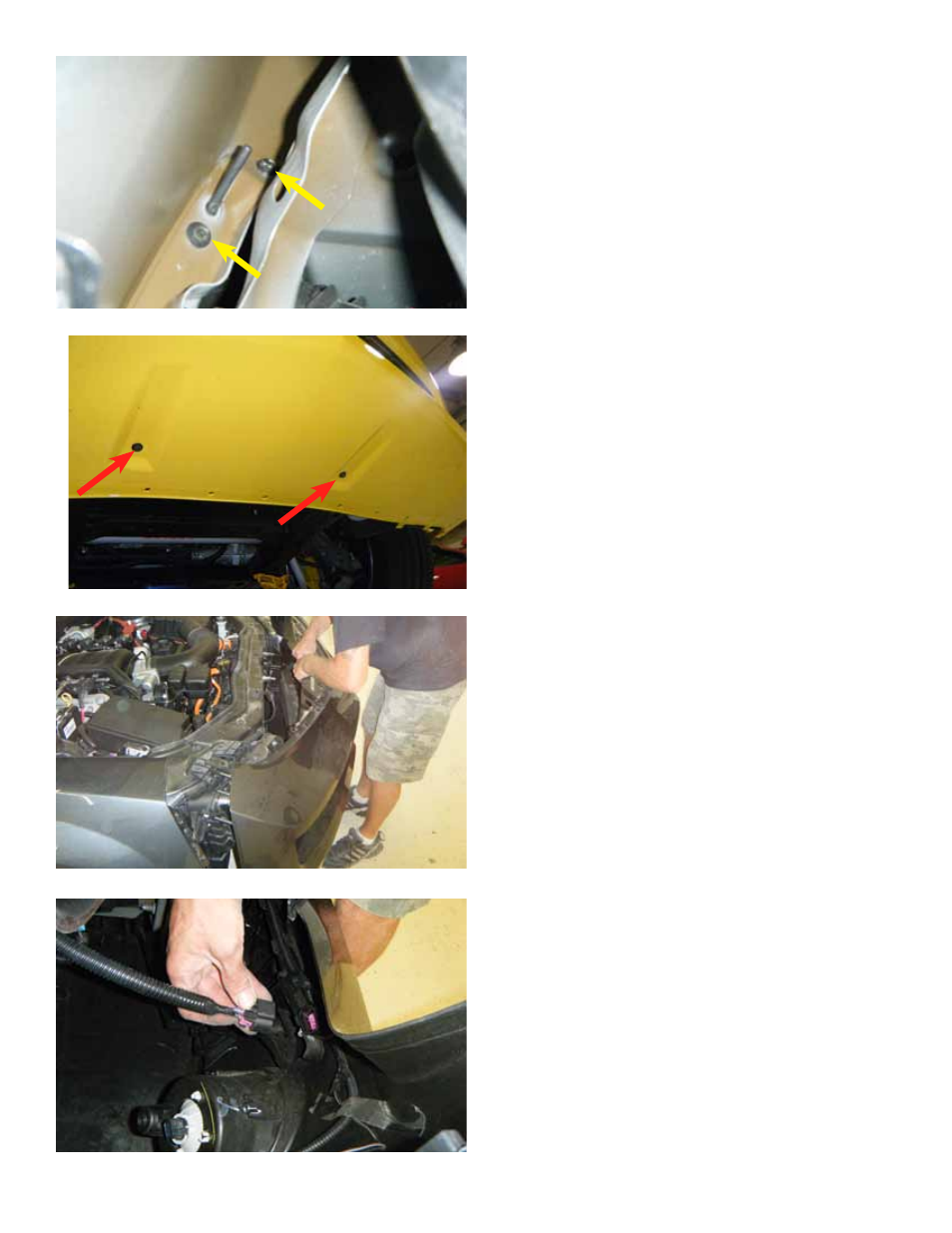

10. Using a 10 mm socket and ratchet,
remove the two (2) lower support bolts under the
front fascia of the vehicle.
11. Remove the front fascia by gently lifting up
on the top of the fascia and pulling it away from
the vehicle.
CAUTION: The wiring harness is still connected
on the front fascia, do not try to completely
remove it from the vehicle.
12. Disconnect the front fascia wiring harness
electrical connector and remove the front fascia
from the vehicle.
9. Using a 10 mm socket and ratchet,
remove the two (2) bolts indicated. These bolts
are located directly above the bolt removed
in step 7. Step 7-9 are to be repeated for the
passenger side.
