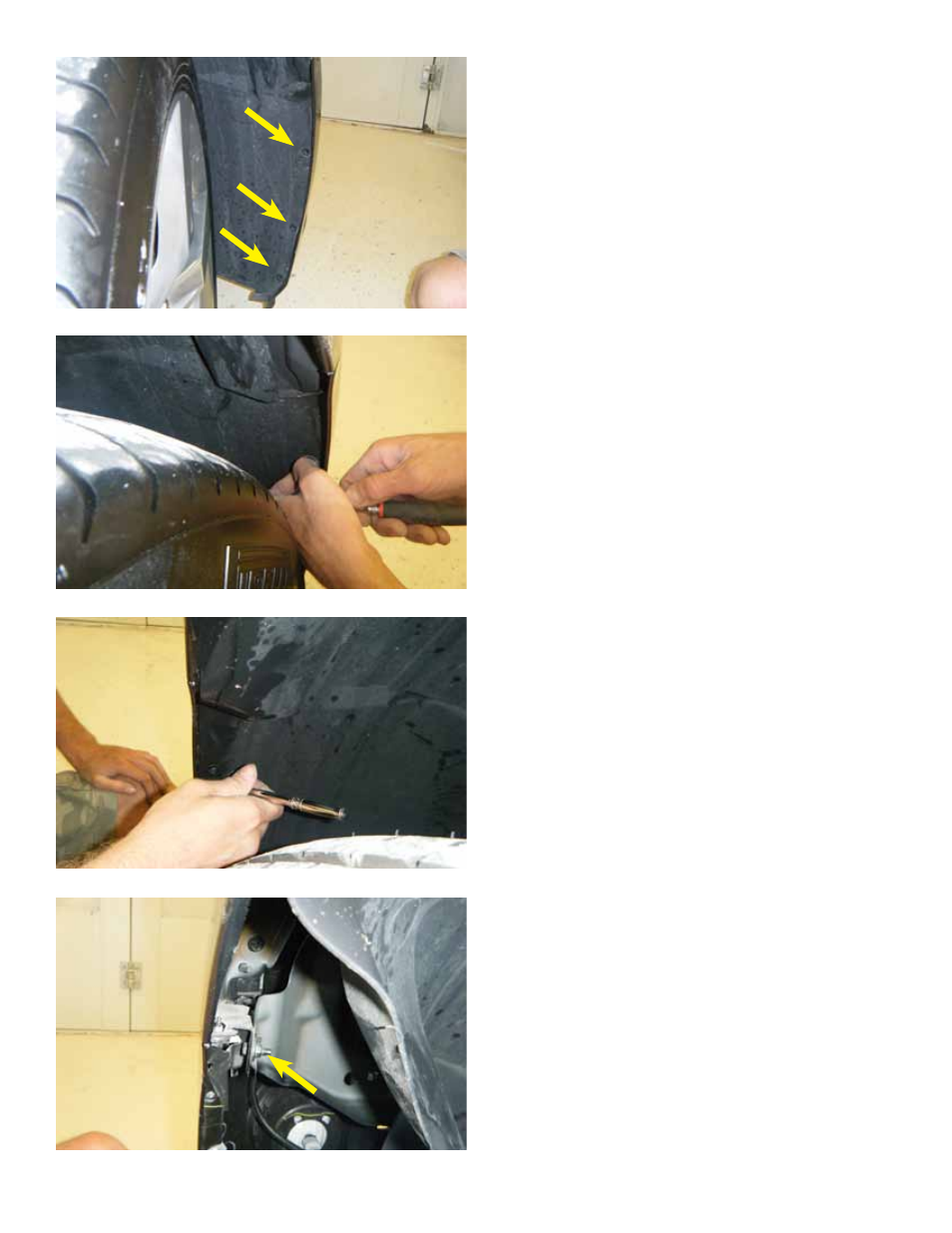

5. There are three scrivets on the passenger
side of the front wheel well liner.
NOTE: Scrivets are a rivet and screw
combination, a rivet that uses a screw to tighten
and loosen the rivet.
6. Using a Torx 20 socket or driver, remove
the three (3) scrivets on the passenger side of the
vehicle.
7. Remove the three (3) scrivets, as
illustrated, on the driver side of the vehicle.
8. Peel back the front wheel well liner and
using a 10 mm socket and ratchet, remove the
bolt shown. The other two (2) bolts are located
directly up from this bolt.
