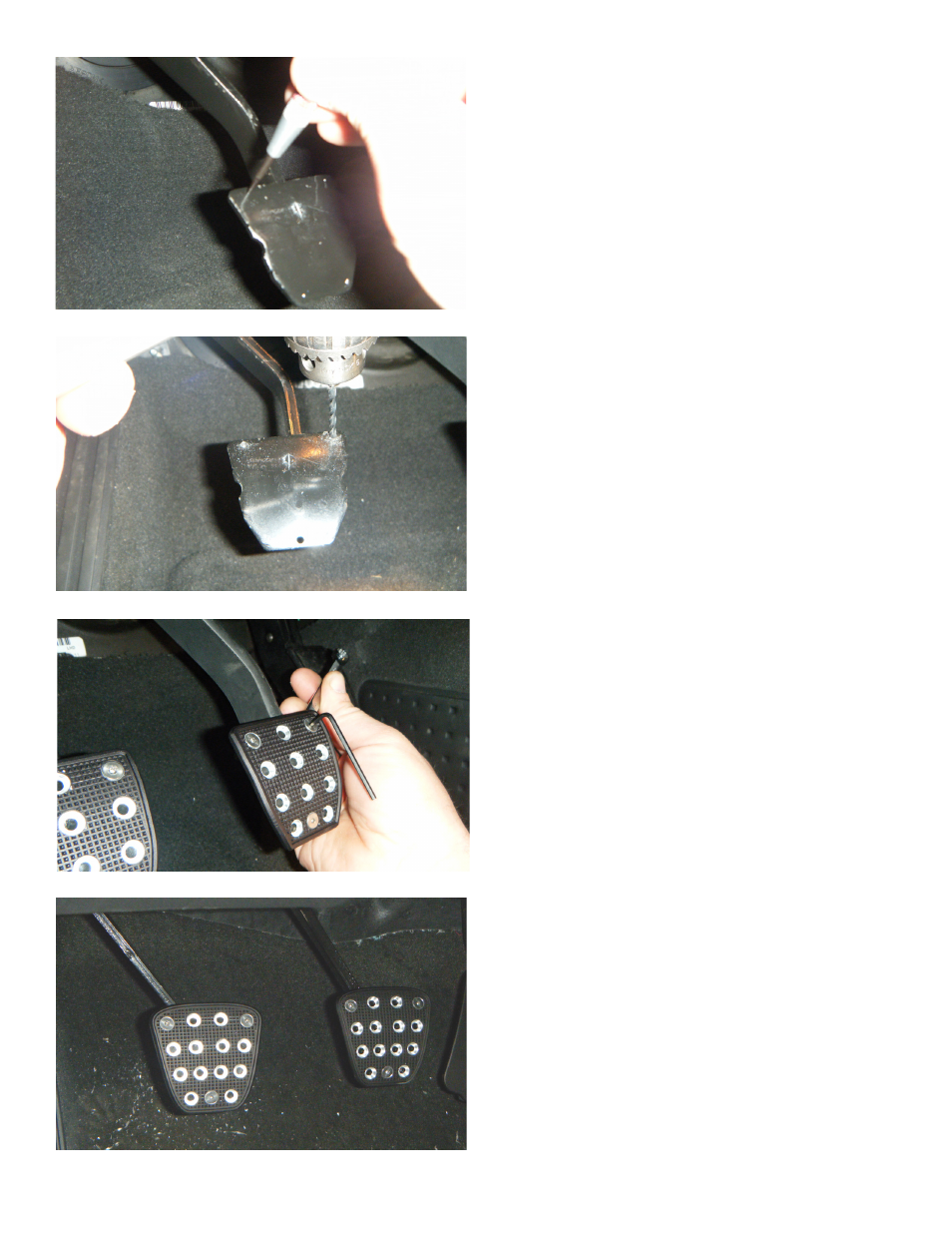

9. Using the supplied 3/32” Allen key and a

9 mm wrench, install the three (3) bolts and the

three (3) locking nuts on the brake pedal.

10. Repeat steps 5-9 for the clutch pedal

if installing this kit on a MT application. This

illustration shows the brake and clutch pedal

covers installed.

8. Using a 3/16” drill bit and drill, drill out the

three (3) pilot holes created in the previous step.

7. Using a 1/8” drill bit and drill, drill the three

(3) pilot holes in the locations that you marked

with the center punch on your brake pedal.

NOTE: Since the pedal is made of hard steel,

LPE recommends using a pilot hole to make

drilling the larger hole much easier.
