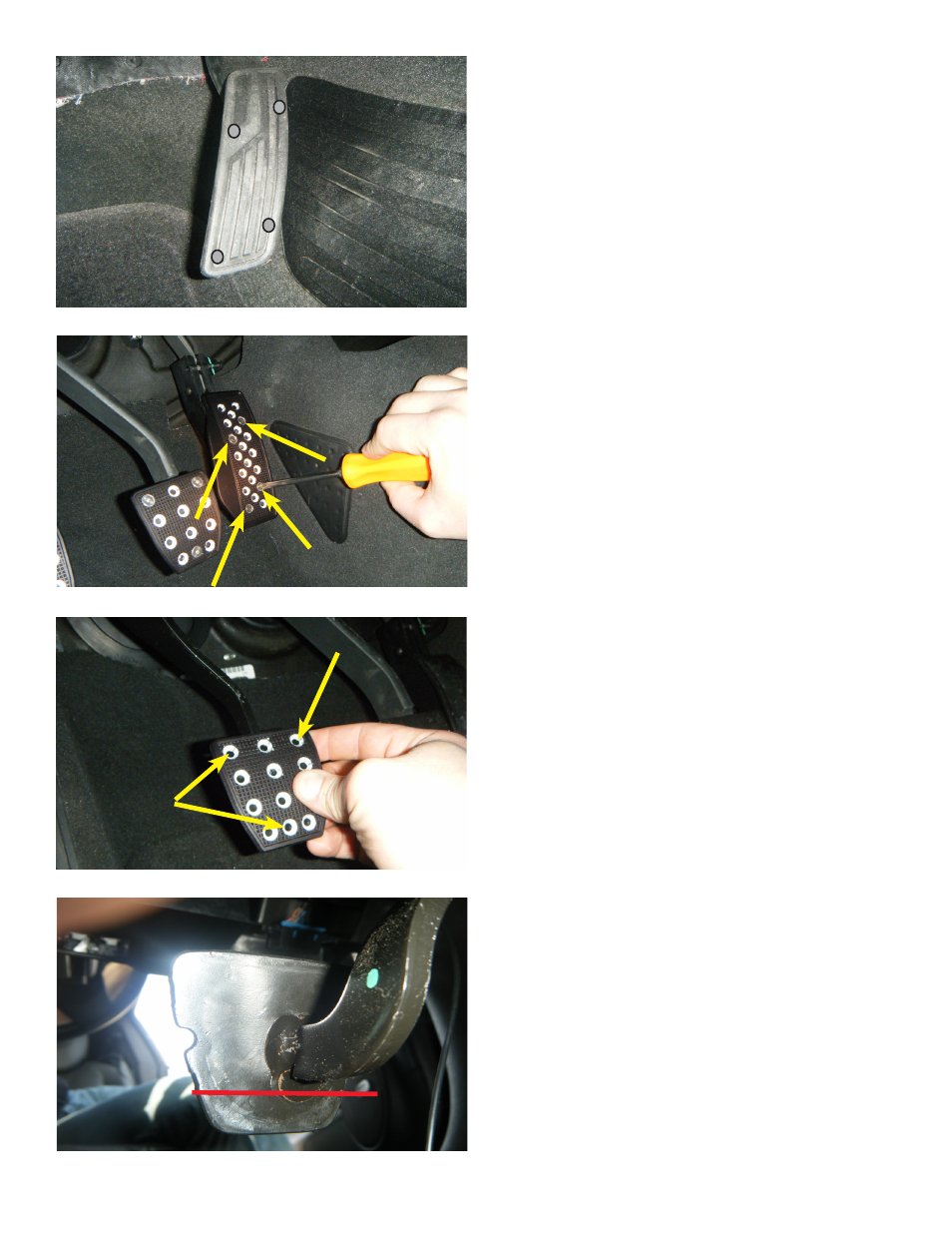

4. Line up the accelerator pedal cover and,
using the supplied self tapping screws, install the
four (4) screws into the pedal cover holes shown
by the yellow arrows.
NOTE: The accelerator pedal is made of a hard
plastic. Take care not to overtighten the self
tapping screws.
5. Line up the pedal cover on the brake pedal
and, using a center punch, mark the location of
the three (3) holes indicated on your brake pedal.
NOTE: The brake pedal cover and clutch pedal
cover are dimensionally the same, so either one
can be installed on either pedal.
6. Make sure that the lower hole is below
the bottom of the pedal arm (shown by the red
line). The screws that will be used are only long
enough to secure the pedal cover to the pedal
plate.
4.
3. Line up the supplied gas pedal cover on
the gas pedal and mark the location of the four
screw holes with a silver marker, as shown in the
illustration by the silver dots. Remove the gas
pedal cover and drill a pilot hole at each marked
location using a 1/8” drill bit.
