ASSFMBLY

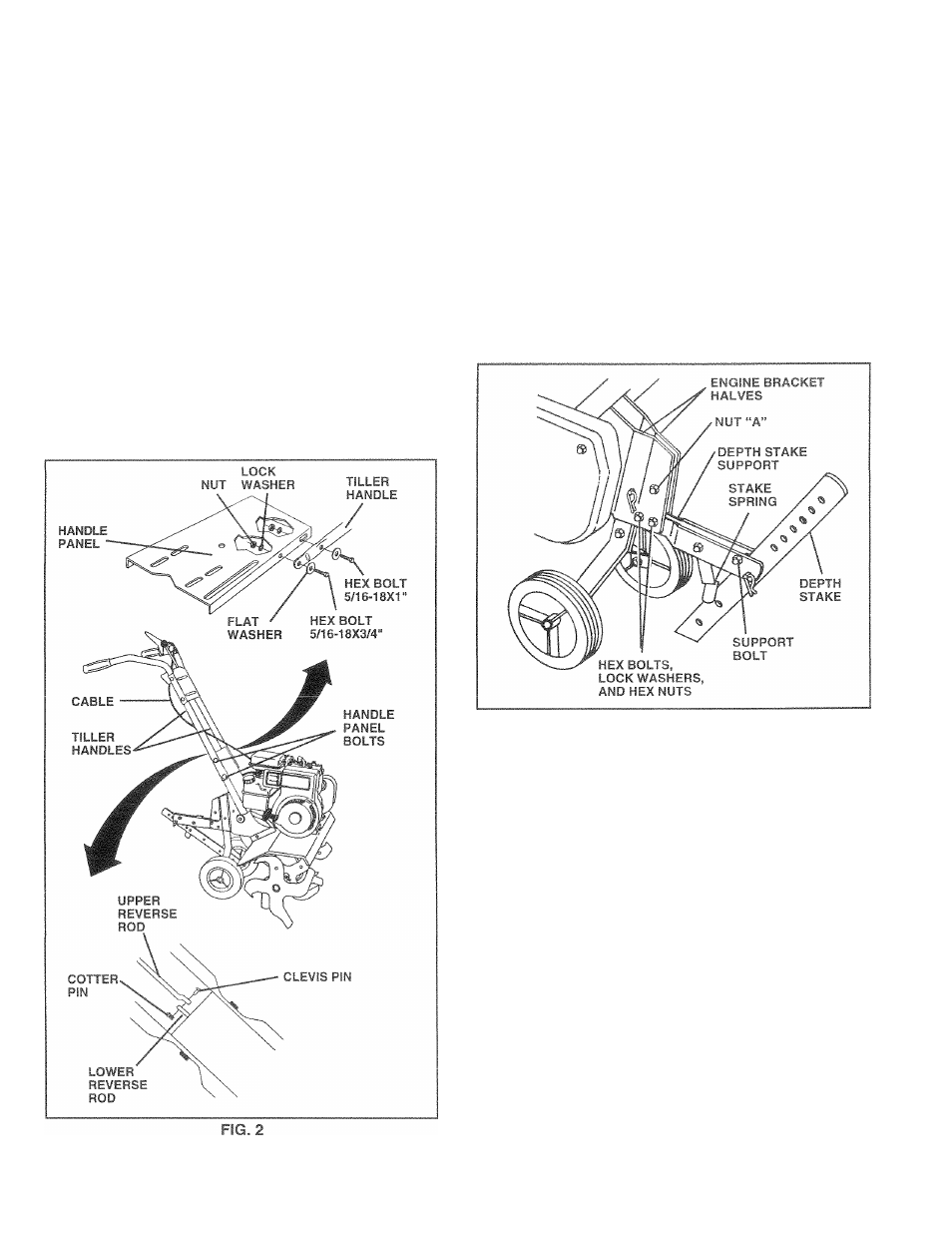

UNPACK CARTON & INSTALL HANDLE (See
Fig. 2|
A
CAUliON:
Be careful of exposed
staples when handling or disposing of
cartortina material.
IMPORTANT:
WHEN UNPACKING AND ASSEMBLING
TILLER. BE CAREFUL MOT TO STRETCH OR KINK
CABLE(S).
•
Cut cable ties securing handies.
•
Slowly lift handle assembly up and align handle holes
with handle panel hole and slot.
•
Loosely assemble hardware as shown. Be sure the
shorter (3/4" long) hex bolt is assembled in lower hole
of handle. Repeat for opposite side. Tighten all
hardware securely.
•
Cut cable ties securing tiller to skid and remove tiller
from skid.
riFFTH STAKE ASSEMBLY
(See Fig. 3)
•
Loosen nut “A”.
jrt between engine bracket halves
wit'-i - K - r fi I < down.
to engine brackets w'ith bolts, lock
wa
II
13 ..I
j
nUiS Tighten securely. Tighten nut
“A”.
® Depth stake must move freely. If it does not, loosen
support bolt.
INSTALL REVERSE ROD (See Fig. 2)
*
Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
FIG. 3
HANDLE HEIGHT
•
Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Adjust
ments section of this manual).
TILLING WIDTH
•
Tilling width may be adjusted to better handle your
tilling conditions {See “TINE ARRANGEMENT” in the
Service and Adjustments section of this manual).
TINE OPERATiON
•
Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
