A S S r P B l f
Your new tiller has been assembled at the facYjry with e/X‘r-piion of those parts left unassembled for shipping purposes. To
ensure safe and proper operation of your
tille? all parts and
hardware
you
assemble
musí
be
tightened
securely. Use the
correct tools as necessary to insure proper tightness.
Tu*JI S
FOB ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Pair of pliers
(1) Screwdriver
(2) 1/2" wrenches

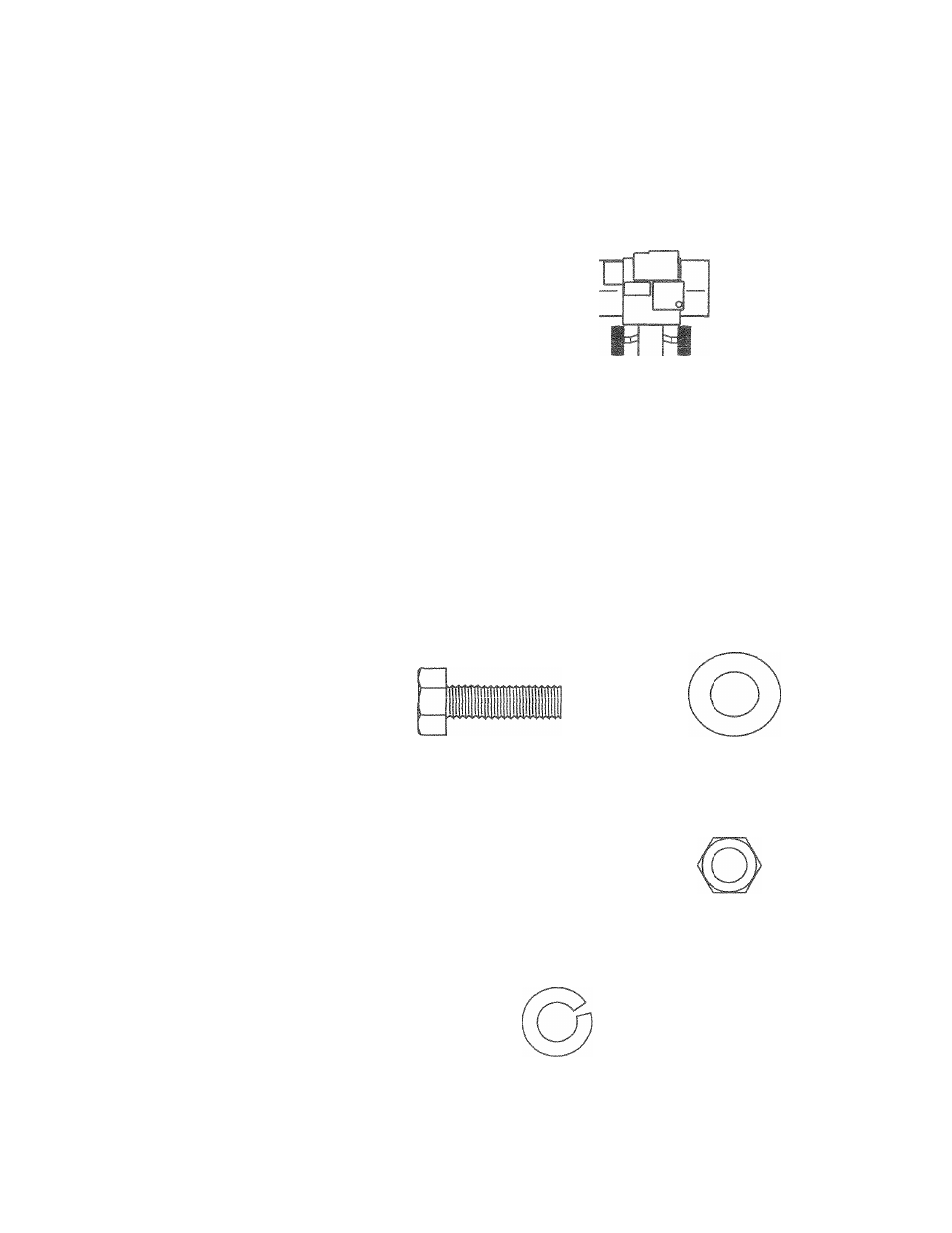

OPERATOR’S POSITION (See Fig. 1)
When right or left hand is mentioned in this manual, it
means when you are in the operating position (standing
behind tiller handles).
LEFT
FRONT
RIGHT
OPERATOR'S
POSITION
FIG. 1
CONTENTS OF HARDWARE PACK
(2) Hex Bolts 5/16-18 X 3/4
(2) Hex Bolts 5/16-18 X 1
( s
(1) Cotter Pin
(1) Clevis Pin
(4)
Washers
3/8 x 7/8 x 14
(6) Hex Nuts 5/16-18
(2) Hex Bolts 5/16-18x1-1/4
(6) Lock Washers 5/16
