SERVSCE AND ADJUSTMENTS
MID-WiDTh 1 f l UNf. - I' 41 k ? i
Asr
she
e.mbi
ft
1
O
Q
, 1
c i
^Jt
<±> O I
FIG. 17
NARROW TILLING/CULTIVATiNG -12^3/4" PATH (See
Fig. 18)
• Remove outer tines.
FIG. 18
NOTE: When reassembling outer tines, be sure right tine
assembly (marked “R”) and left tine assembly (marked “L”)
are mounted to correct side
of tine shaft.

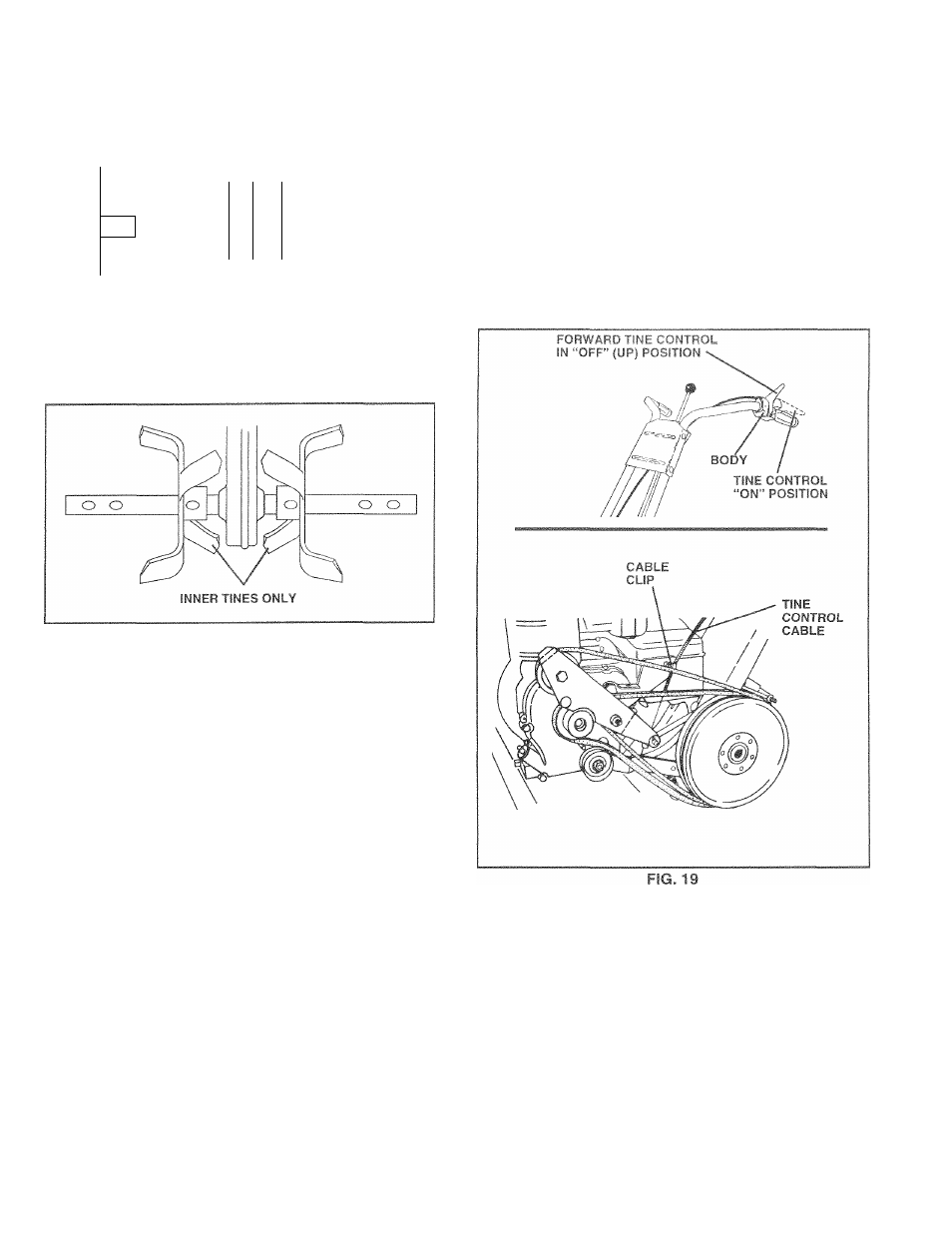

TINE OPERATION CHECK (See Fig. 19)
A WARNING: Disconnect spark plug wire
from spark plug to prevent starting
while checking tine operation.
For propertine operation, forward tine control lever must be
against control body and all slack removed from inner wire
of control cable when control is in the “OFF” (up) position.
If lever and cable are loose, loosen cable clip at lower end
of cable. Puli up on cable to remove slack, without
extending spring on end of cable, and retighten cable clip.
FINAL CHECK “OFF” POSITION
• With tine control “OFF” (up), push down on handle to
raise tines off the ground.
® Slowly pull recoil starter handle while observing tines.
Tines should not rotate.
• If tines rotate, inner wire of control cable is too tight
which is extending lower spring and engaging tines.
Loosen cable clip and push down on cable only enough
to relieve spring tension. Tighten cable clip."
• Recheck in “OFF” position and adjust if necessary.
FINAL CHECK “ON” POSITION
* With tine control “ON” (held down to handle) push down
on handle to raise tines off the ground.
* Slowly pull recoil starter handle while observing tines.
Tines should rotate forward.
* i • t* I'l- I* . vin (• it It.,! >*. t (
lorvf Lt -f, li K I hu iidp,.>il 't N lj(- iw , II jve
slack and i>^iinhtr n nip
* Recheck in “ON” position and adjust if necessary.
NOTE: If “ON” position check required adjustment, re­
check “OFF” position adjustment to insure tines do not
rotate when control is “OFF” (up).
