R E S P O N S i B f ì
mñí e
MUFF
=LER
Do not opere Ite tiller without muffi ^er. Do not tamper with
exhauEst sysl:em. Damaged muffi ers or spark arre; sters
could create ^a fire hazard. Inspect iperiodically and rep-lace
if nece issary., If your engine is «
fli.l <.( << Willi U - park
arreste r sere sen assembly, remoi /e every 50 hours j for
ig and inspection. Replace if damaged.
SFARK PLUt
Replace spark plugs at the beginning of each tilling season
orafter every 50 hours of use, whichevercomesfirst. Spark
plug type and gap setting are
shown in “PRODUCT SPECI­
FICATIONS” on page 3 of this manual.
TRANSMISSION
Your transmission is sealed and will not require lubrication
unless serviced.
CLEANING
9 Clean engine, wheels, finish, etc. of all foreign matter.
ke. jf 1 1 1 'heo suifai f nd wh e l s f s e e u f ail .Kisulne,
oil. etc.
• Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose to clean your
unit unless the muffler, air filter and carburetor are covered
to keep water out. Water in engine can result in a shortened
engine life.
SERVICE AND ADJUSTMENTS
A
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into
contact with plug.
TILLER

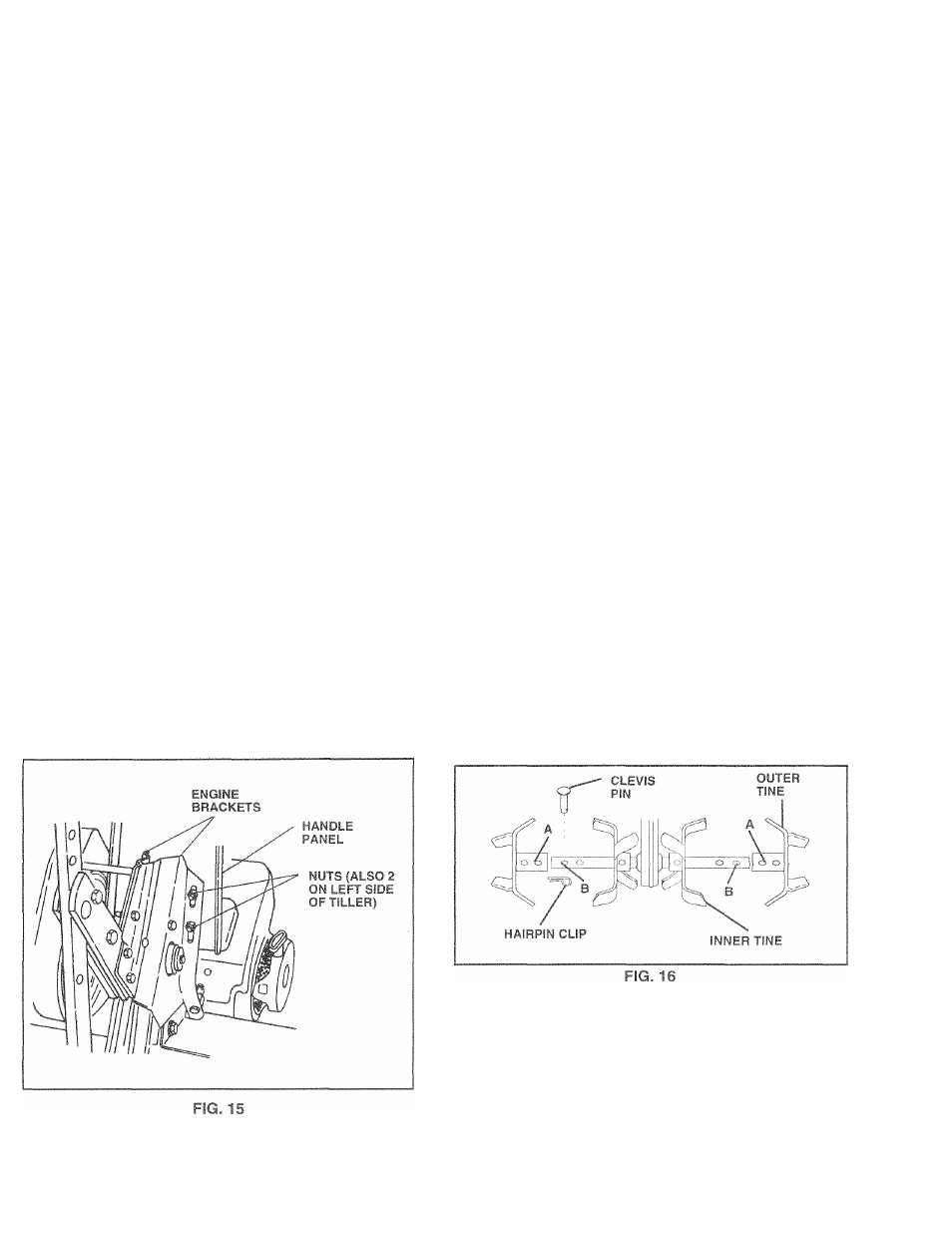

TO ADJUST HANDLE HEIGHT (See Fig. 15)
Factory assembly has provided lowest handle height. Se­
lect handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.
• If a higher handle height is desired, loosen the four nuts
securing handle panel to engine brackets.
• Slide handle panel to desired location.
• Tighten the four nuts securely.
TINE ARRANGEMENT
Youroutertinescan be assembled in several different ways
to suit your tilling or cultivating needs.
A
CAUTION: Tines are sharp. Wear
gloves or other protection when han­
dling tines.
NORMAL TILLING - 26" PATH (See Fig. 16)
• Assemble holes “A” in tine hubs to holes “B” in tine
shaft.
