based on the transducer’s maximum range, before it transmits the next signal, regardless of how quickly
the previous signal was returned. MaxRange is the default and recommended setting for End Range.

• Target — if the transducer detects a target closer than the maximum range (i.e., the total time to transmit

and receive the signal is less than the prescribed time), the transducer sends out the next signal, rather
than waiting until the prescribed time has elapsed.

79 delAy offset (consult Kistler-Morse before Modifying!)

Delay Off is a parameter related to the operating frequency of the transducers. It sets the propagational delay
for the electronic circuitry. Not that a change made to Delay Offset for a particular type of transducer affects all
channels that are monitoring that type of transducer. For example, if you modify Delay Offset for a 56T-25, all
channels that are using 56T-25 will use the new Delay Offset value.

90 serVice Menu

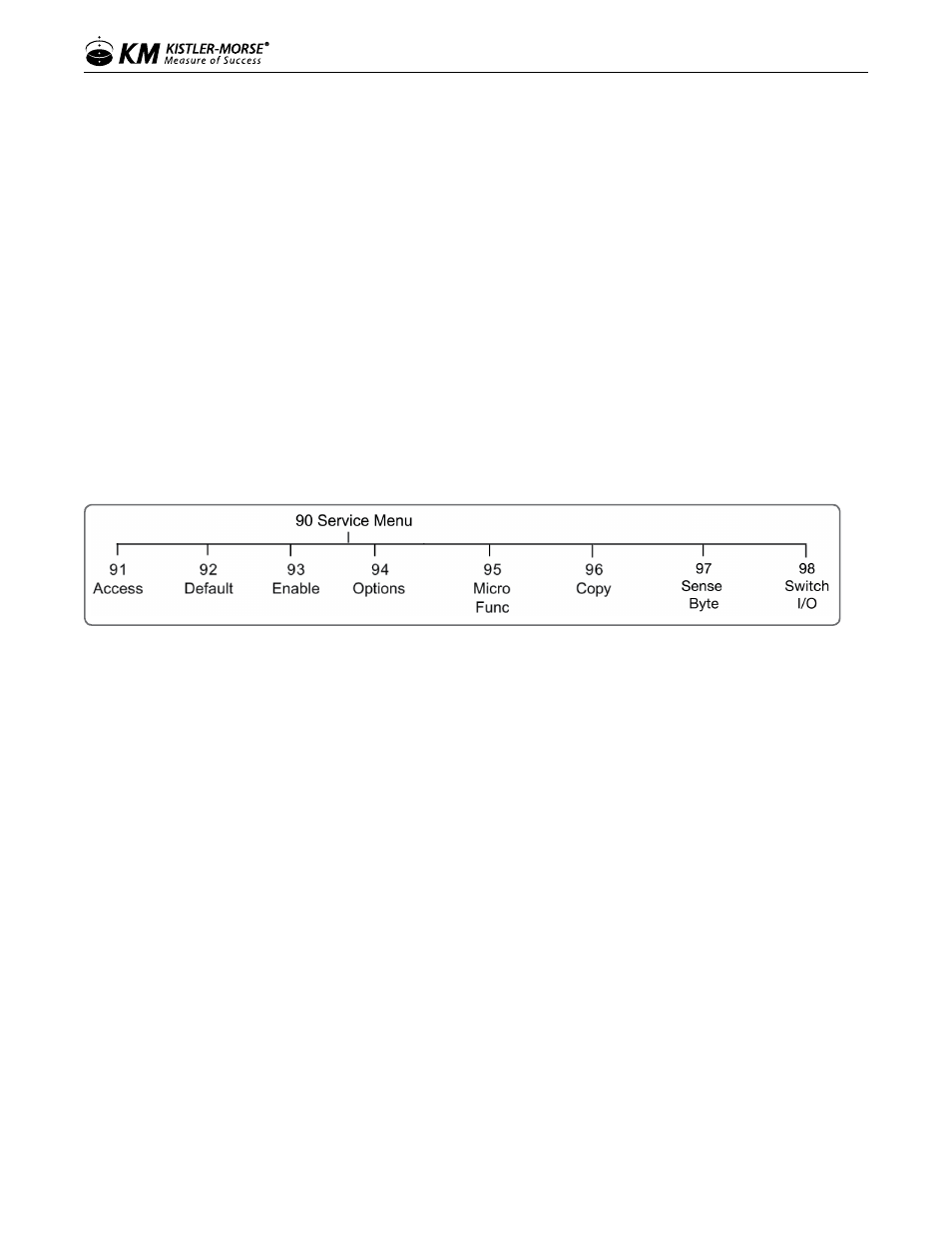

Figure 27: Service Menu Tree

91 Access

The Access menu allows you to:

• Set a user-defi ned access code

• Input the Kistler-Morse Mfg Code, which is needed when performing certain troubleshooting functions.

Access has two submenus: User and Kistler-Morse

user

The UltraWave Series arrives from the factory without a user-defi ned access code in place, allowing the user
to access any function (other than those requiring the Kistler-Morse Mfg Code or Kistler-Morse Service Code)
in the system at will. The User function allows you to set up a code to limit access to changing most system
parameters (i.e., display parameters, setpoint parameters, calibration parameters, etc.). Once a User Code is
in place and activated, your operator(s) will be able to go into the menu tree to view parameters, but will not be
able to change parameters without entering the code. Follow this procedure to set up an access code:

1. If the controller is in Auto Mode (Auto LED illuminated), press the Scan/Hold Key to put the system in

Manual Mode. The Auto LED turns off.

2. Press the Menu Key to display the Main Menu. The display shows:
