Routing Table – IP to Trunk Group
Configuration > Protocol Configuration > Routing Tables > IP to Trunk Group Routing

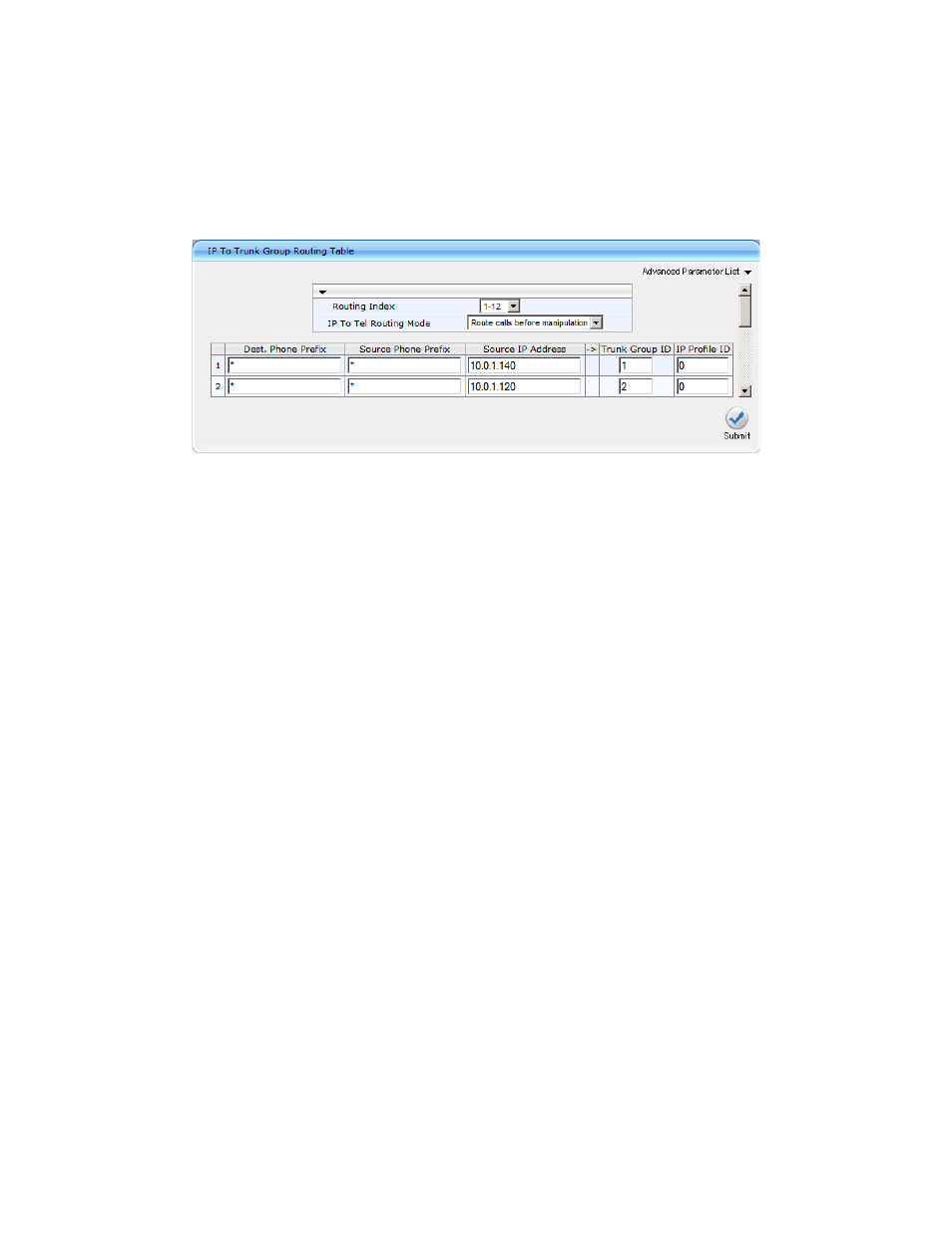

This page allows you to route calls from IP addresses to the telephony interfaces on the device. The following screen shot is an
example only, your hardware will need a different configuration. Read below for details.
Create one entry:
Dest. Phone Prefix *
Source Phone Prefix *
Source IP Address The IP address of the fax server
Trunk Group ID 1
IP Profile ID 0
If you are using an FMIS, create another entry:
Dest. Phone Prefix *
Source Phone Prefix *
Source IP Address The IP address of the FMIS server
Trunk Group ID 2
IP Profile ID 0
Click “Submit” when you are done. Click “Burn” at the top of the page.
