Routing Table – Tel to IP
Configuration > Protocol Configuration > Routing Tables > Tel to IP Routing

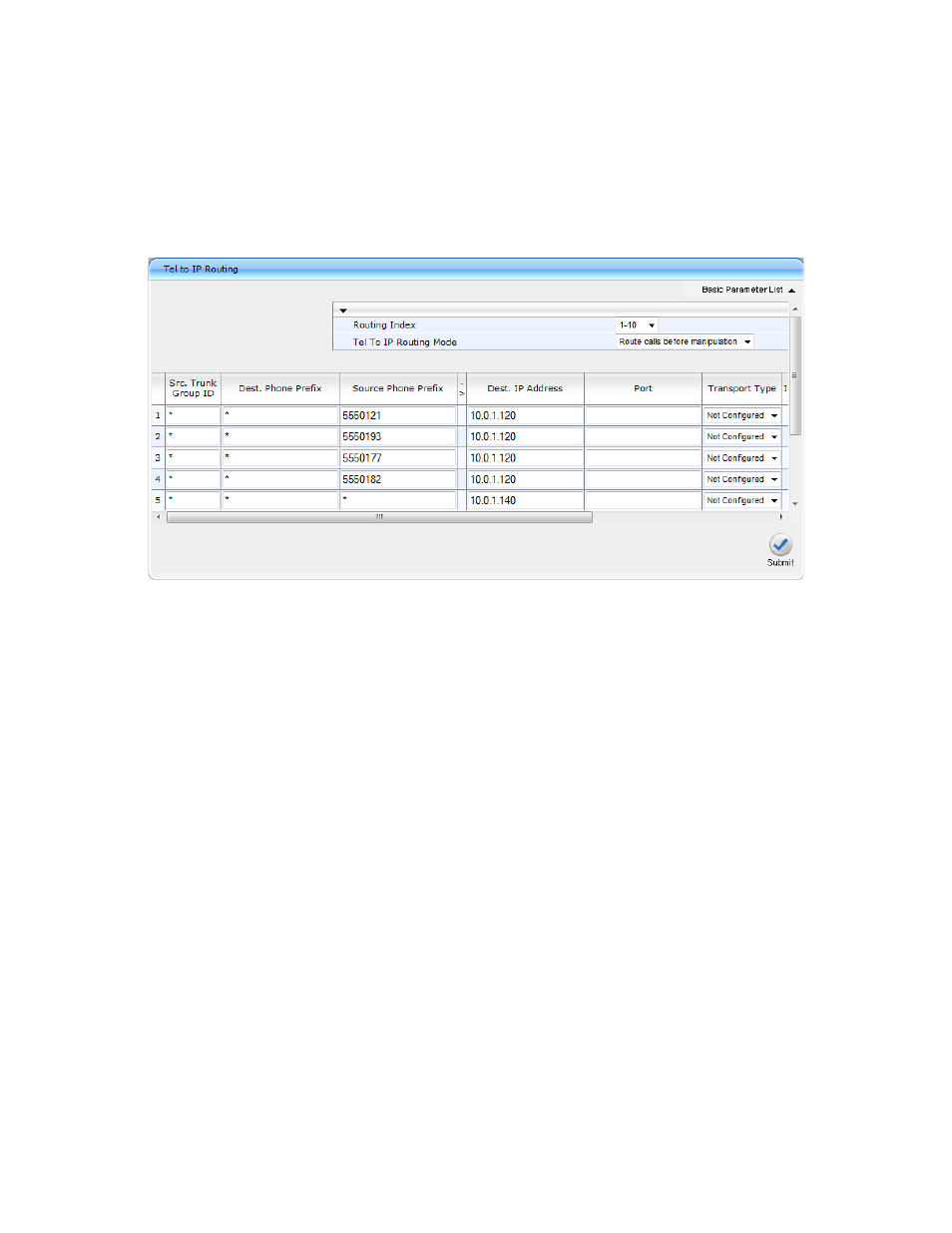

This page allows you to route calls from the telephony interfaces to the IP address of the fax server. The following screen shot is
an example only, your hardware will need a different configuration. Read below for details. See also “Media Gateway Configuration
Examples” for sample configurations.
If you are using any FXS ports, first we need to route their DIDs to your FMIS server. Create one entry per FXS port:
Dest. Phone Prefix *
Source Phone Prefix
The port’s “Phone Number” that was assigned on the Trunk Group page.
Dest. IP Address The IP address of the FMIS server
IP Profile ID 0
After all FXS port entries, create one entry that will route everything else to the fax server:
Dest. Phone Prefix *
Source Phone Prefix *
Dest. IP Address The IP address of the fax server
IP Profile ID 0
Click “Submit” when you are done. Click “Burn” at the top of the page.
