ASSEM BLY

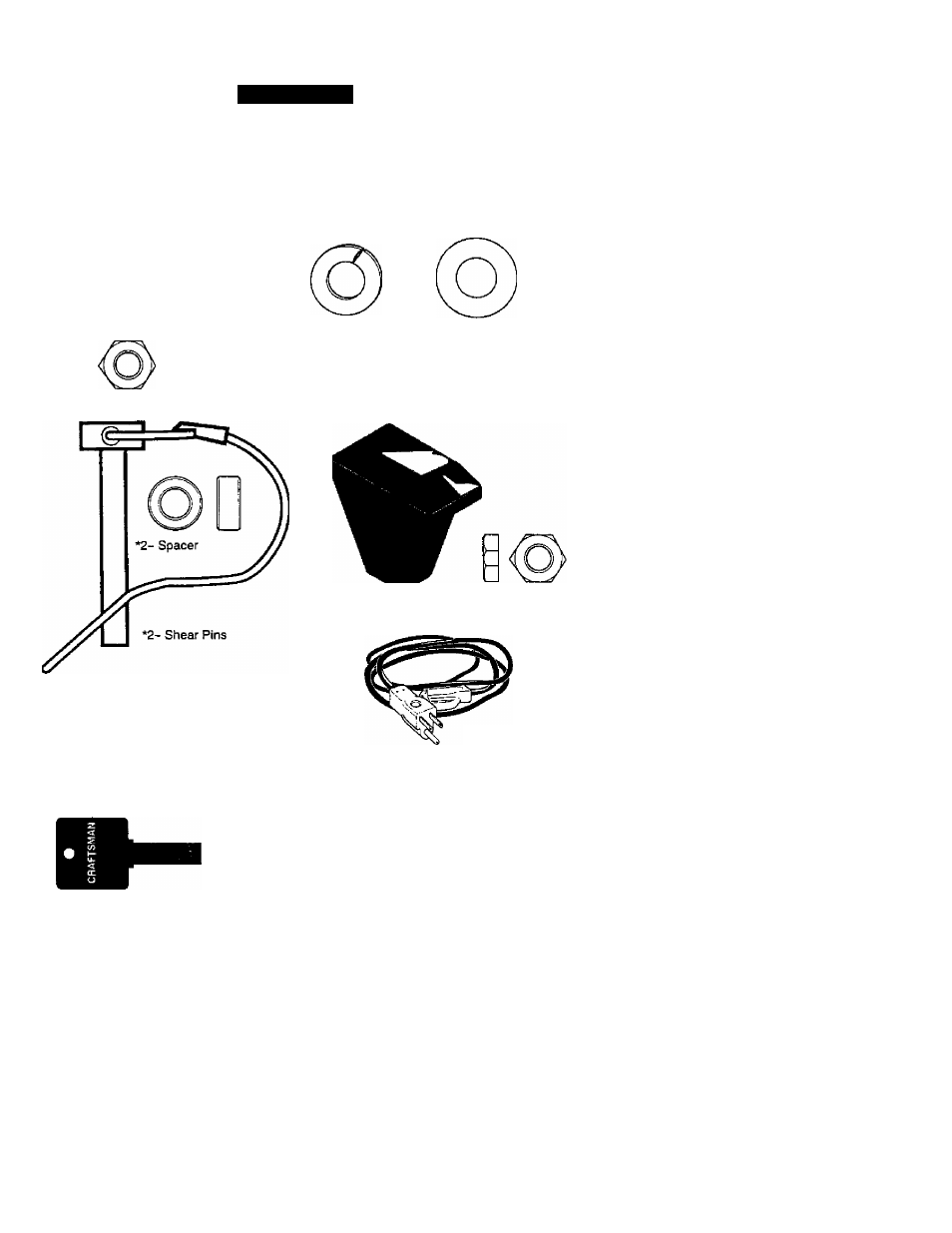

Contents of Parts Bag (actual size)

1 - Owner’s Manual {not shown)
1 - Packet of Fuel Stabilizer (not shown)
1 - Warranty Card (not shown)

2 - Parts bags (not shown)

•Non-Assembly Parts, found in toolbox located on belt cover

1 - Screw, 3/6-16

2 in

- Nut, 3/8 In.

1 -Split Lockwasher 1 -Flatwasher

3/8 In.

2 - Shift Lever Knobs 2 ” 3/8

(not actual size)

Hex Jam Nuts

1 - Starter Cord
(not actual size)

Parts packed separately in carton (not shown fuii size)

2- Ignition Keys

(Attached to engine in plastic bag)

F-001060J
