TILLER - - MODEL NUMBER 917.296040

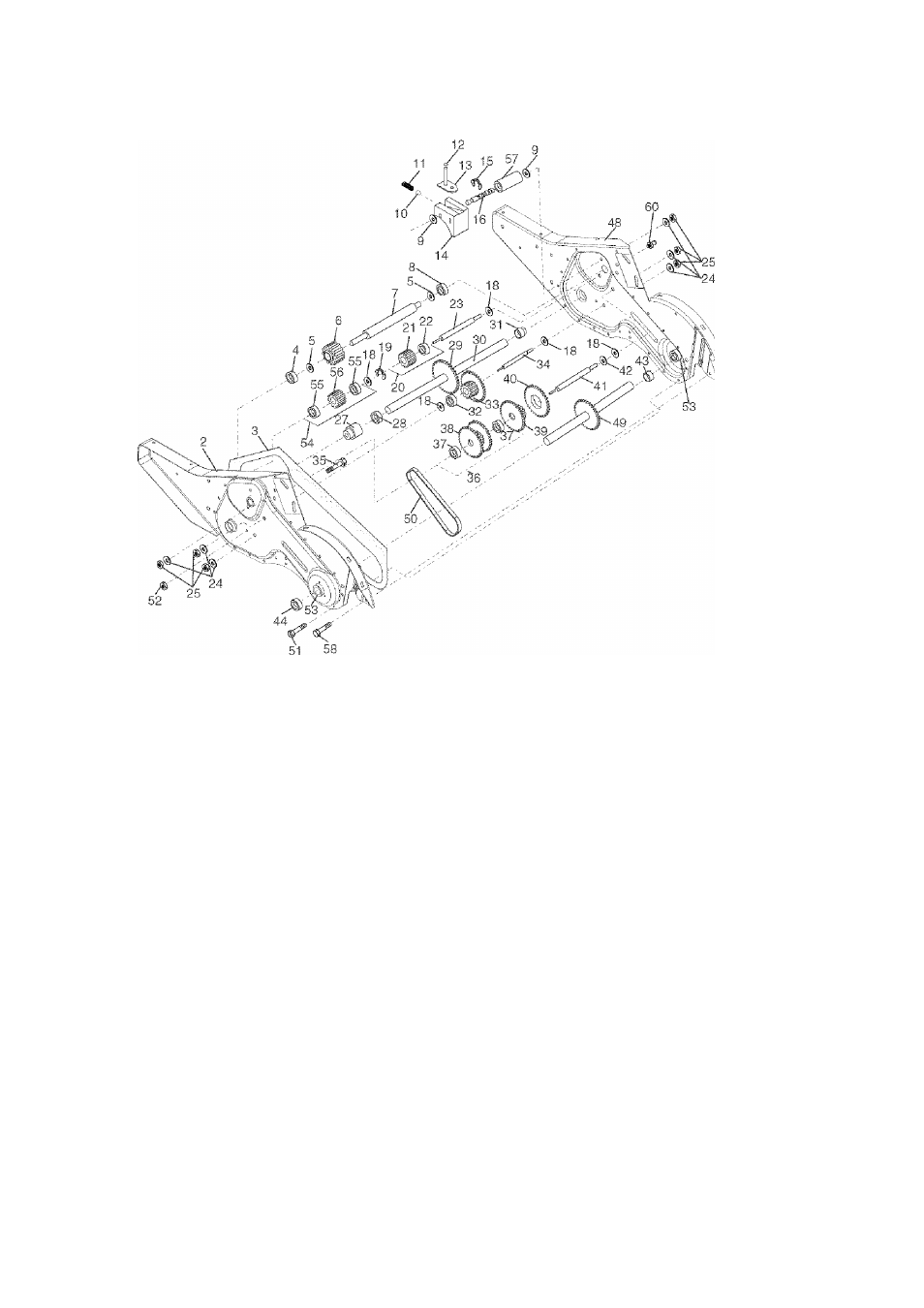

TRANSMISSION
,®^44
1ransmlsslon_7
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 188240 Transmission Assembly (Includes 32 106388X Spacer 0.70 X 1.00 X 1.150
Key Nos. 2-52) 33 102121X Sprocket and Gear Assembly
2 188220 Gearcase, L.H. w/Bearing 34 102112X Shaft, Reduction (2nd)
(Includes Key No. 4) 35 102101X Screw, Whiz, Lock 5/16-18 x 3-1/2
3 161963 Gasket, Gearcase 36 161524 Sprocket Assembly w/Bearing
4 5020J Bearing, Needle (Includes Key Nos. 37 and 38)
5 1370H Washer, Thrust 5/8 x 1.10 x 1/32 37 100413K Bearing, Needle
6 161520 Pinion, Input 38 161525 Sprocket, Tine
7 161518 Shaft, Input 39 161526 Gear, Cluster, Red 1st & 2nd
8 4895H Bearing, Needle 40 105346X Gear, Reverse
9 154467 Washer, Seal 41 161523 Shaft, Reduction (1st)
10 7392M Ball, Steel 42 4220R Washer, Thrust
11 100371K Spring, Shift, Fork 43 106146X Spacer 1.01 x 1.75x0.760
12 106160X 0-Ring 44 155236 Seal Asm. OH
13 142145 Arm, Shift 48 188235 Gearcase, R.H. w/Bearing
14 8353J Fork, Shift (Includes Key No. 8)
15 12000039 Ring, Klip 49 132688 Shaft, Tine
16 161516 Shaft, Shift 50 106147X Chain, Roller #50-50 Pitch
18 4358J Washer 51 17720408 Screw 1/4-20x1/2
19 12000040 Ring, Klip 52 73220500 Nut, Hex 5/16-18
20 102114X Gear, Assembly, Reverse Idler 53 165140 Bearing Kit, Tine Shaft
(Includes Key Nos. 21 and 22) 54 161528 Gear, DRT Idler w/Bearing
21 102115X Gear, Reverse Idler (Includes Key No. 55)
22 6803J Bearing, Needle 55 3400R Bearing, Needle
23 161527 Shaft, Reverse Idler 56 161529 Gear, DRT Idler
24 STD551143 Washer, Lock 7/16 57 165889 Spacer, Split .52 x .64 x 1.04
25 STD541143 Nut, Hex 7/16-20 58 179520 Screw 1/4-20 x .875
27 143009 Bearing, Shaft, Ground Drive L.H. 60 183226 Fitting Grease
28 106390X Spacer 0.765 X 1.125 x 1.23
- -
6066J Grease, Plastilube #1
29 102134X Chain #35-50 Pitch
30 150737 Ground Shaft Assembly
NOTE i: All component dimensions given in U.S.
31 143008 Bearing, Shaft, Ground Drive R.H. inches. 1 inch = 25.4 mm
47
