FAX-L1000 Chapter 5: Appendix

b) Installation

Please refer to FAX-L1000 PostScript Kit step b-8) for the procedures up to opening the
side cover.

b-1)

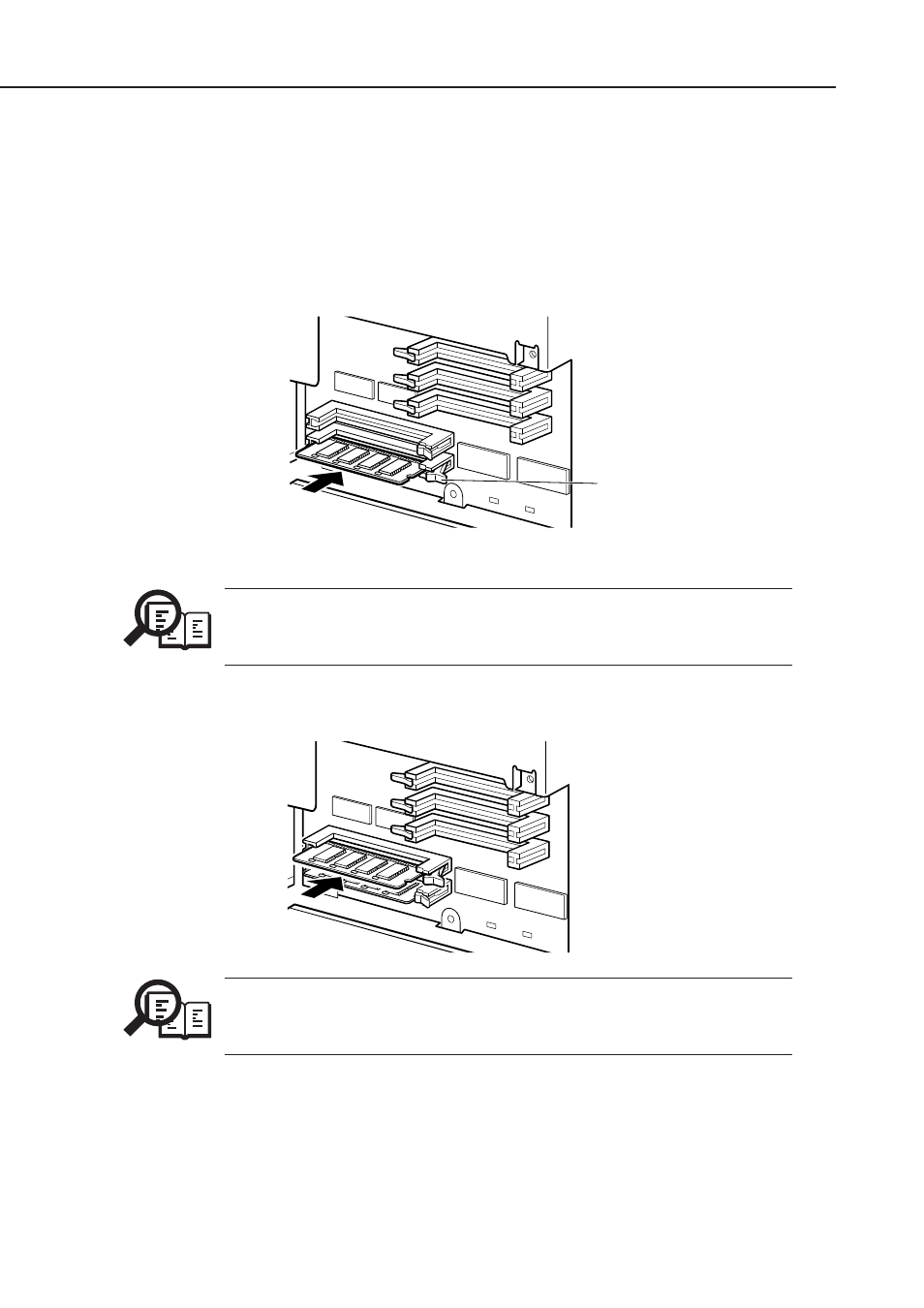

Open the tab on the right side of the memory slot by the moving it
to the right.

b-2)

Remove the RAM DIMM from its packaging and insert it into the
socket at the bottom of the memory slot board.

b-3)

Make sure: the tab of the memory slot snaps close.

b-4)

Insert the other RAM DIMM into the second slot above the first DIMM
following the procedure above.

b-5)

Perform the Cold Reset. Please refer to

3.10.2 Service Operations: c)

Cold Rest

when performing the Cold Reset.

tab

NOTE

Make sure the notch on the front edge of the RAM DIMM is to the left
when you insert the RAM DIMM into the socket.

NOTE

There are 4MB, 8MB, and 16MB RAM DIMMs available.
