Page 283
4-31
FAX-L1000 Chapter 4: Maintenance and Service
3.17 Fixing Unit Entrance Guide
a) Preparations for cleaning
(1) Disconnect the power cord of the fax from the power source.
(2) Remove the right rear cover and the left rear cover.
(3) Remove the face-up tray.
(4) Loose the two screws and remove the fixing ass’y.

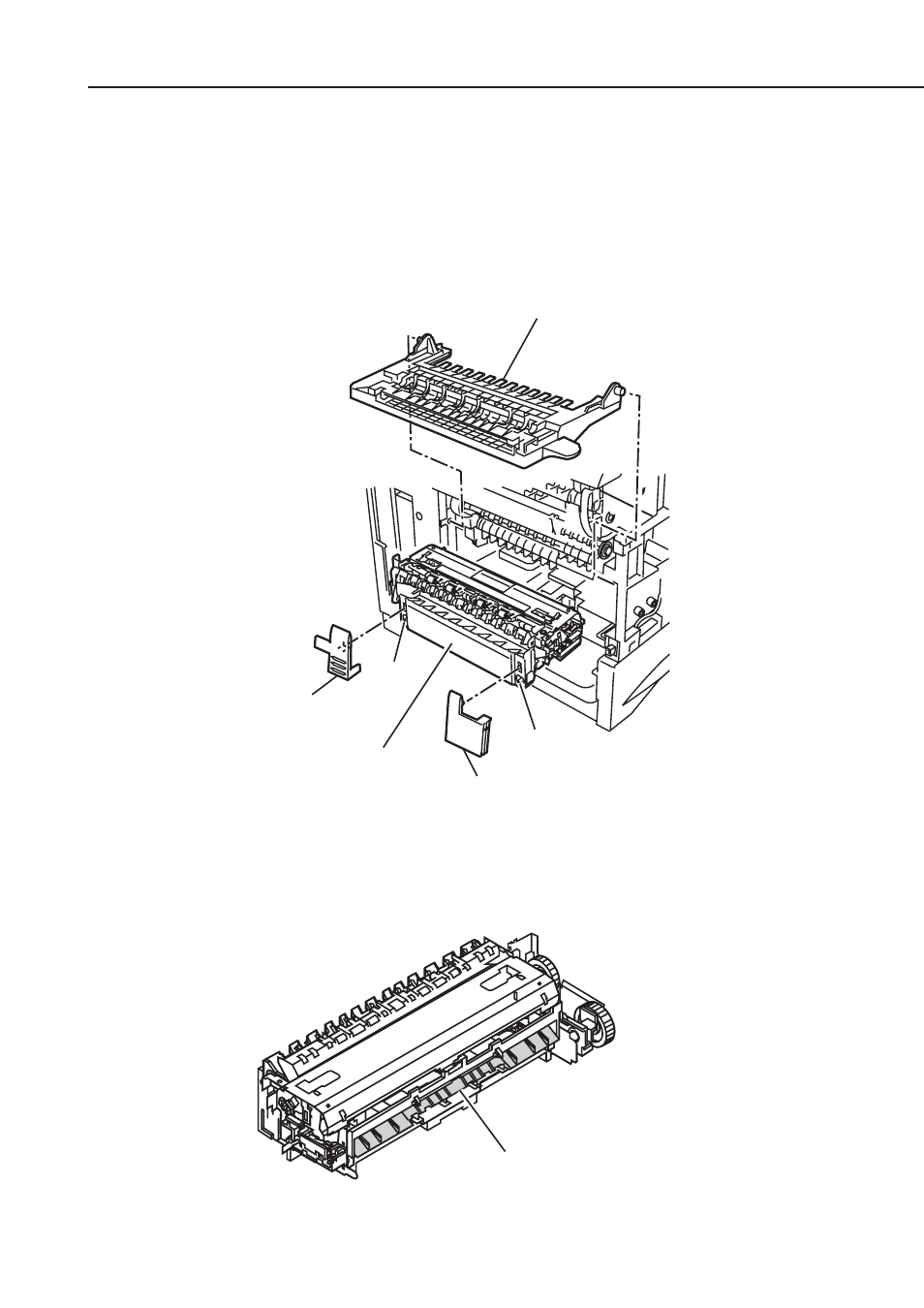

Figure 4-36 Preparation for Cleaning
b) Cleaning
(1) Using lint-free paper dipped in alcohol, wipe any dirt off the fixing entrance guide.
Figure 4-37 Cleaning Location
Face-up tray
Left rear cover
Right rear cover
Fixing ass'y
Screw
Screw
Fixing unit entrance guide
