1-2
FAX-L1000 Chapter 1: Safety and Precautions
1.1.1 AC line (AC 230V household current)
Power supply unit (primary side)
The AC 230V is supplied to the primary side of the power supply unit when the power cord
is plugged in.
1.1.2 Telephone line
NCU board (primary side)
When connected to the telephone line, a line voltage of approx. DC 48V is supplied to the
fax from the telephone line.
And when the ringing signal is received, approx. AC 90Vrms is supplied.
1.1.3 Printer high voltage terminal
When the printer cover sensor is pressed with the printer cover closed, voltage of approx. AC
1600V p-p maximum is supplied to the printer high voltage terminal. When you press the
printer cover sensor, be careful not to touch the high voltage terminal.

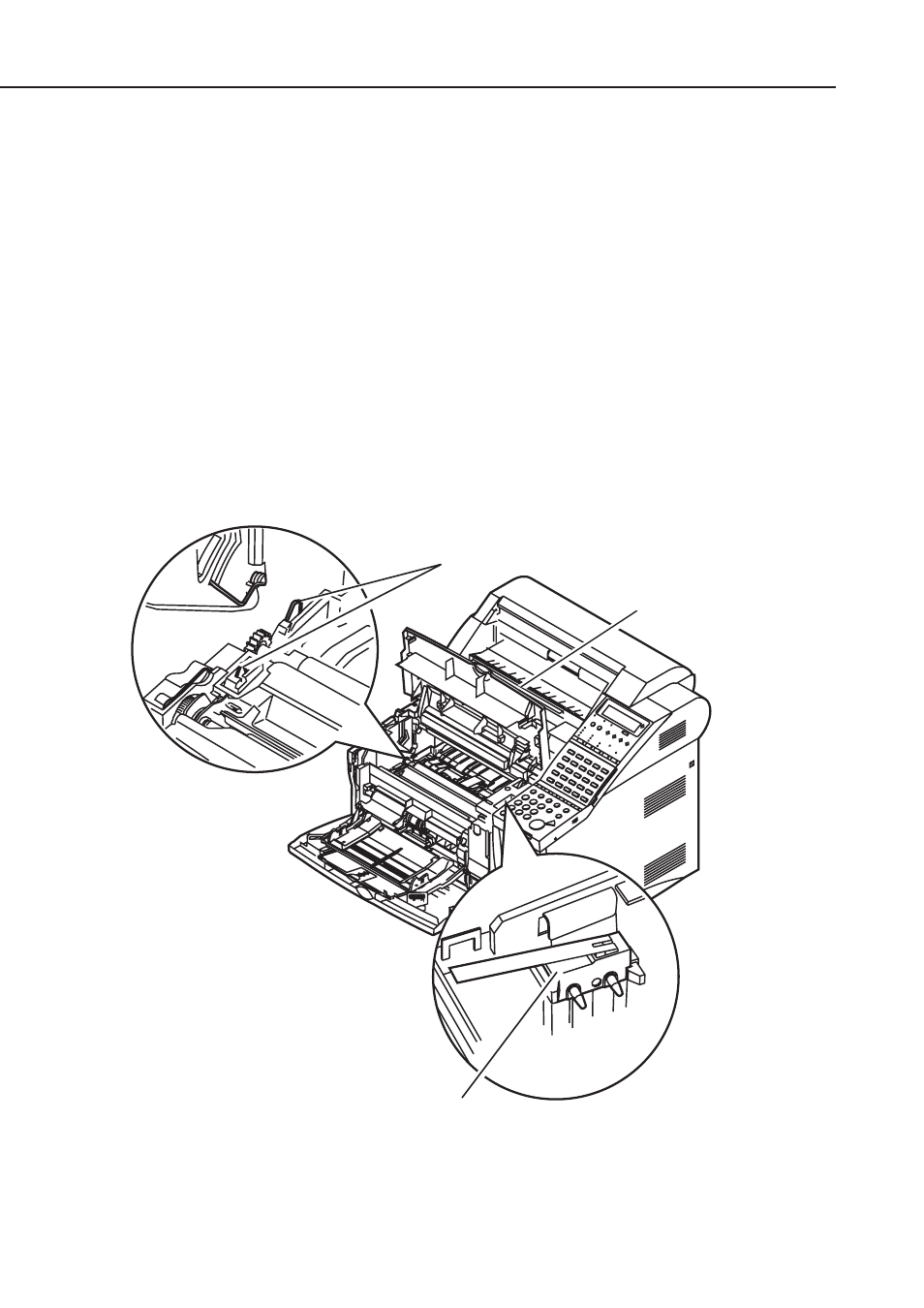

Figure 1-1 Printer High Voltage Terminal
Printer cover sensor
High voltage terminal
Printer cover
