5-81
FAX-L1000 Chapter 5: Appendix
3.4 Envelope Feeder EF-52
3.4.1 Service operations
a) External Views

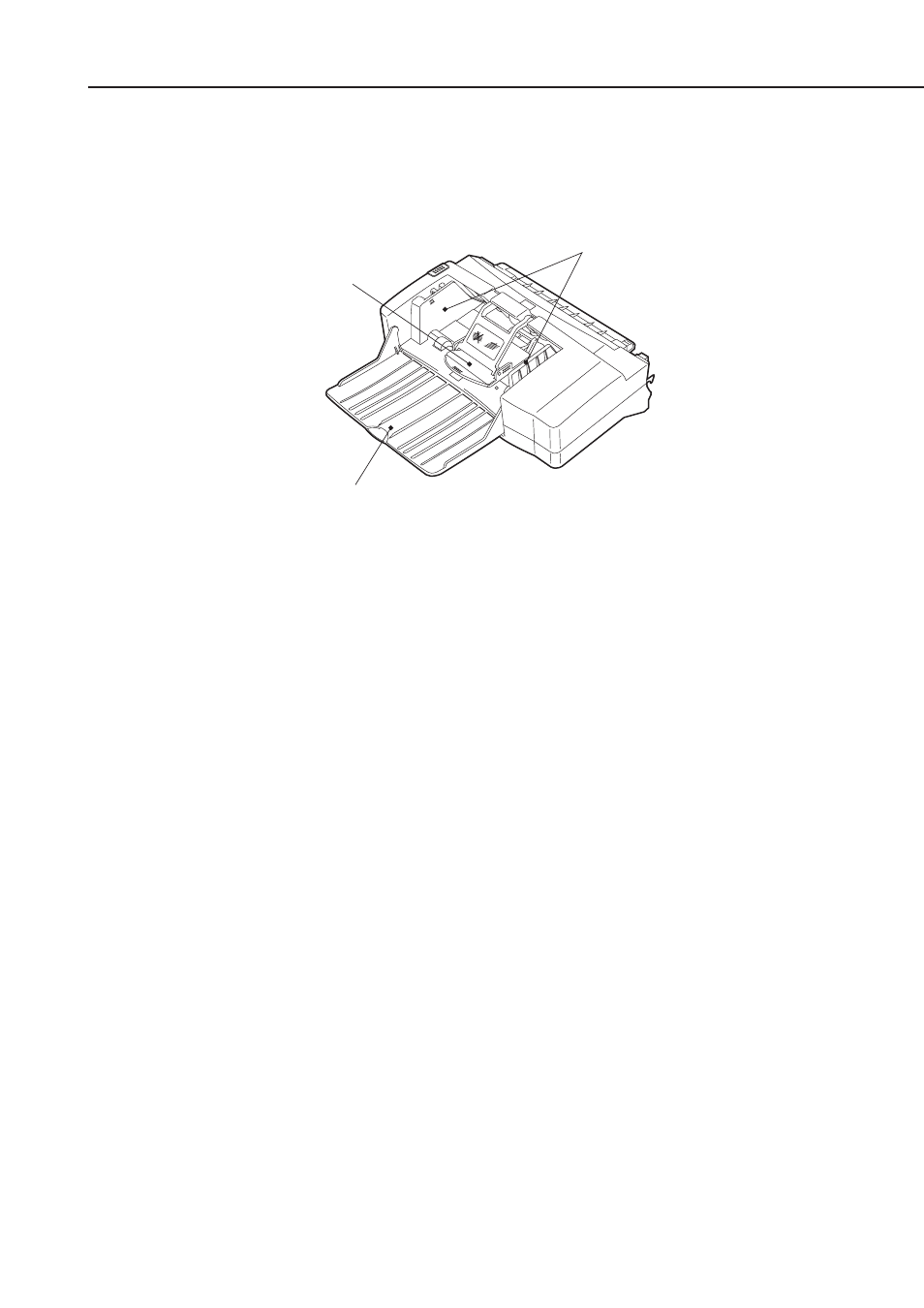

Figure 5-29 External View
b) Installtion
b-1) Unpacking
Check that the box contains the envelope feeder.
b-2) Attachment to main unit
(1) Open the envelope feeder packaging.
(2) Take off the plastic bag and peel the tape off. Confirm that none of the covers were
scratched or deformed during shipment.
(3) Remove the packing materials from the envelope feeder.
(4) Open the multi-purpose tray of the fax, remove the envelope entrance cover, and
open the envelope feeder gear cover.
(5) Holding the envelope feeder with both hands, install it into the fax.
Envelope guide
Weight
Extension tray
