3

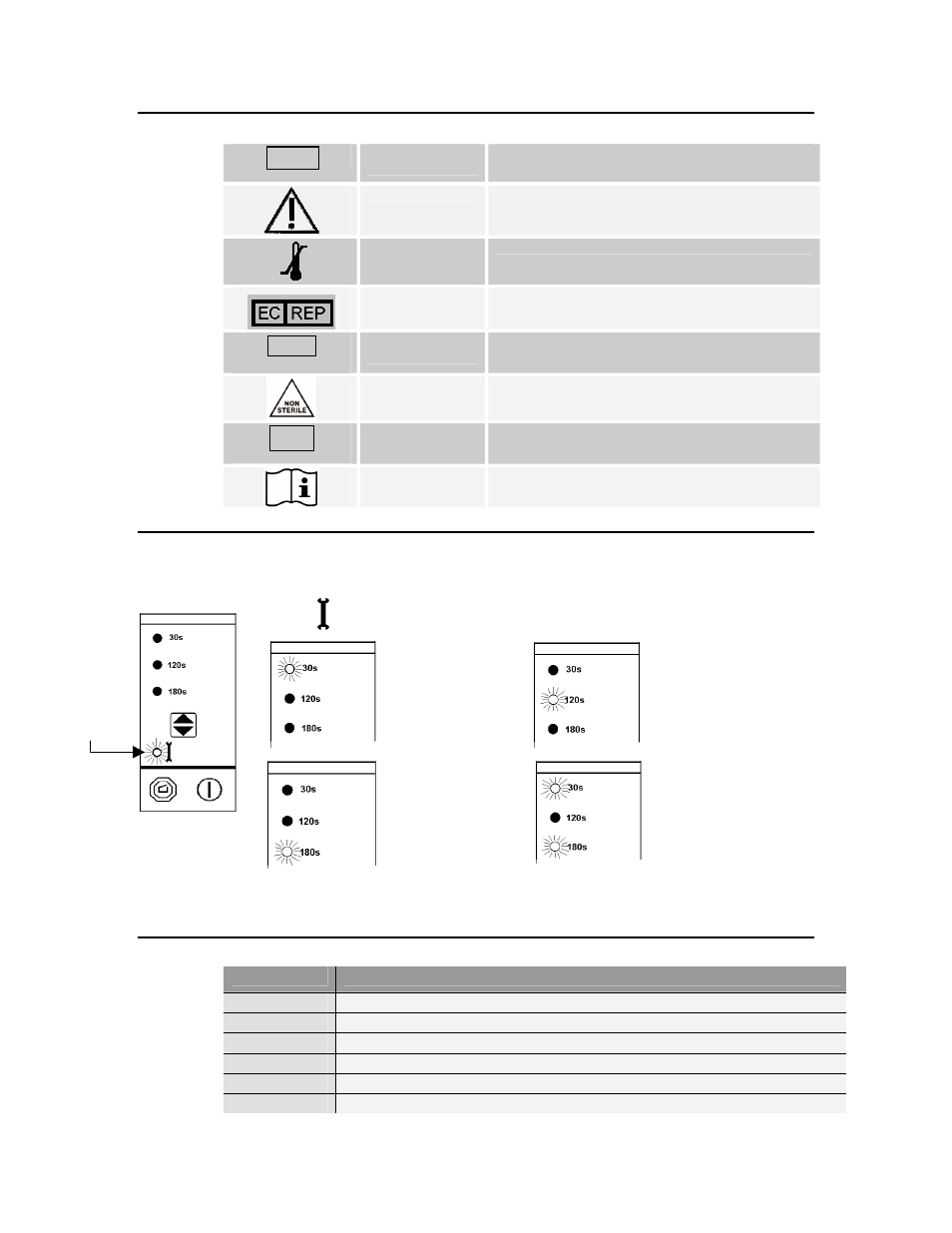

Symbols and Definitions (cont.)

REF

Product/Reference
Number

Indicates the StatSpin product/catalog number

Caution

Statement of caution/warning, read instruction
carefully

Temperature
limitation

Indicates storage requirements range

EC Representative

European Community Authorized Representative

IVD

For in vitro
diagnostic use

Clarifies for use as in vitro diagnostic only

Non sterile

Indicates non-sterile product

S N

Serial Number

Indicates instrument serial number code

Consult
Instructions

Consult instruction manual or insert sheet for further
explanation

Error Indicators

Error codes for the Express 2 are specified by a combination of the Error/Service LED flashing or
continuous and any combination of the cycle LEDs on the front panel.

Error/Service =

Quick Spin = 30 s Normal

Spin

=

120 s

Hard Spin = 180 s



Error/Service light will continuously illuminate when the centrifuge has achieved a total cycle count of 18,000, which
is the useful life of the drive system. Drive mechanism needs replacing. Contact an authorized service center.

Accessories

Product No.

Description

SV01

Inserts for 5 mL tubes (13 x 75 mm or 10.25 x 82 mm) 4/pk. Included with centrifuge

SV02

Inserts for 3 mL tubes. (10.25 x 64 mm) 4/pk.

SV03

Inserts for 2 mL tubes. (10.25 x 47 mm or BD Microtainers) 4/pk.

SV04

Inserts for 1.5-2 mL Microtubes (e.g. LipoClear) 4/pk.

DL01

Disposable chamber liners. 10/pk.

RTX4

Express 2 Rotor. Includes four SV01 inserts.

Error/Service

light flashing

or continous

Rotor failed
to reach rpm
within 30 s

Cover opened
or cycle
changed during
operation

Insufficient
power to
maintain
rpm

Rotor spun
backward
direction during
reverse braking
