Run Screen
User Guide | 45
The Run Screen in LP/Econo Mode
In LP/Econo mode the Run screen shows the current diverter valve status and
drophead position (see Figure 17 and Table 10 ). This screen has a Stop function key
that causes the fraction collector to stop listening for fraction advance and diverter
valve signals and returns the drophead to the home position.

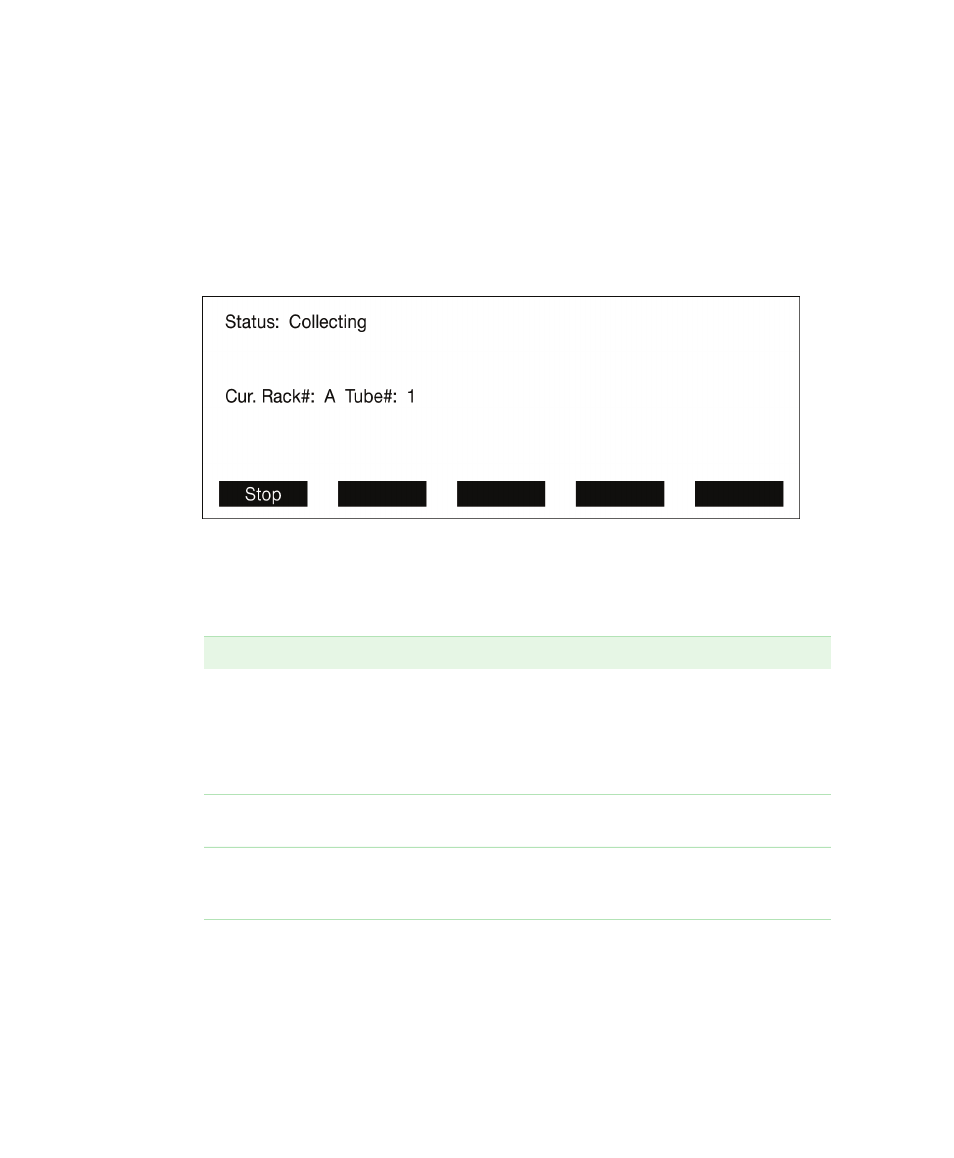

Fig. 17. Run screen (LP/Econo mode).
Table 10. Run screen parameters (LP/Econo mode)
Parameter Function
Status Displays the current fraction collection status.
Collecting – the diverter valve is in the Collect
position.
Diverting – the diverter valve is in the Divert to
Waste position.
Cur. Rack # Tube # Displays the current rack position and tube
number.
Overlay Cycle The number of times that the fraction collector
has overlaid fractions in the current set of runs.
(Displayed only in Overlay mode).
