Bio-Rad BioFrac™ Fraction Collector User Manual
Page 28
3
| System Configuration and Plumbing
20
| BioFrac Fraction Collector
Connecting to the Econo Gradient Pump and a Chart
Recorder
The following configuration shows the fraction collector set up with an Econo
gradient pump and a chart recorder. This system allows full use of the fraction
collector’s advanced programming features.

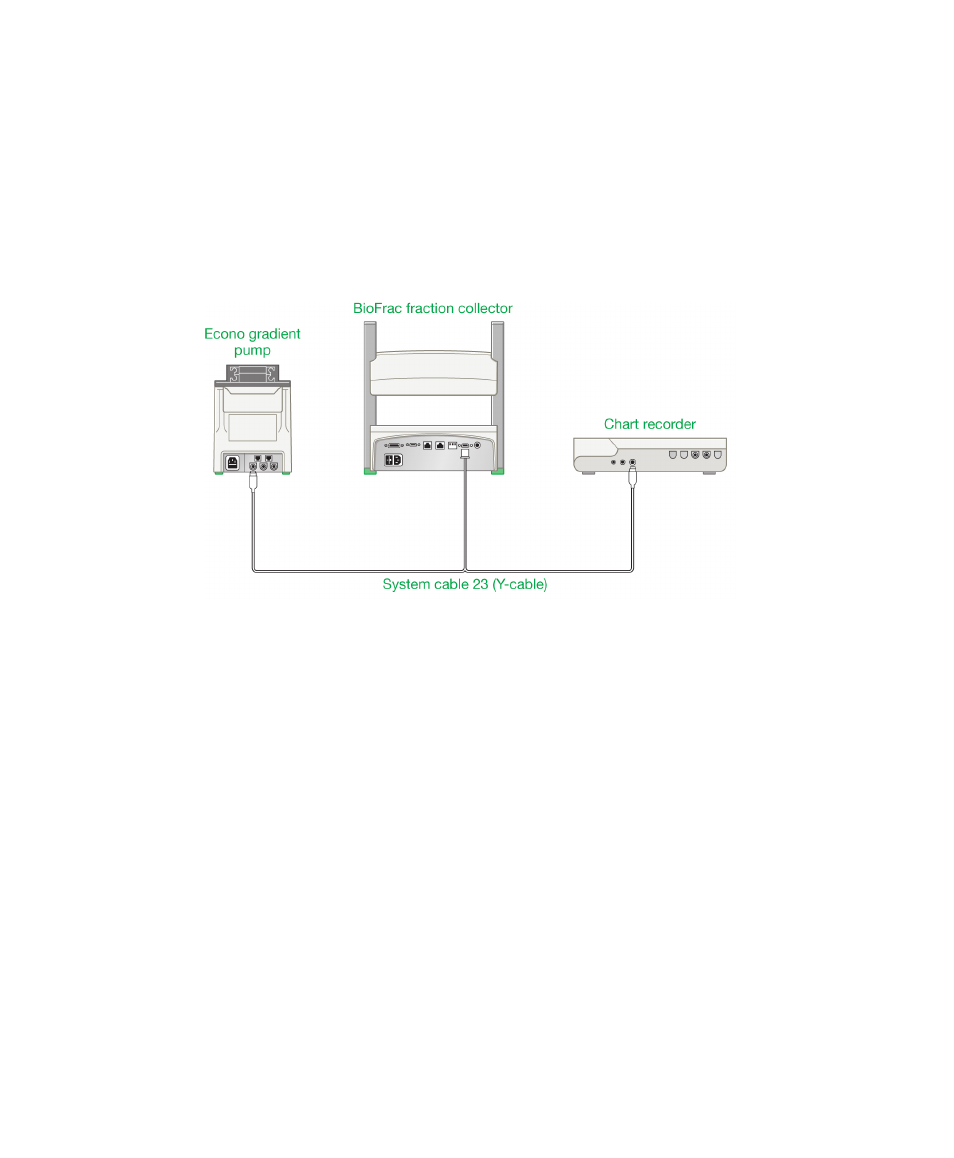

Fig. 9.
Connecting the fraction collector, Econo gradient pump, and chart
recorder.
To connect the fraction collector, Econo gradient pump, and chart
recorder
1.
Connect the mini-DIN connector to the I/O connector on the Econo gradient
pump.
2.
Connect the 15-pin D-connector to the I/O connector on the fraction collector.
3.
If a chart recorder is present, connect the cable’s remaining end to the chart
recorder DIN connector. If the chart recorder is not present, place this portion of
the cable aside.
4.
If collecting fractions by threshold, connect a detector to the fraction collector
and chart recorder as described in this chapter.
5.
