4 | The User Interface
42 | BioFrac Fraction Collector
Run Screen
The Run screen provides information about the progress of the current run. The
information displayed on the screen depends on the type of method being used and
whether the fraction collector is in Local or LP/Econo mode.
The Run Screen in Local Mode
In Local mode, the information displayed includes run status, run time, fraction
filled, fraction size, and drophead position. In addition, UV (%AUFS, that is,
absorbance units full scale) and threshold values are displayed during threshold
collection (see Figure 16 , Table 8 , and Table 9 ). Run volume is displayed when
collecting by volume. Four function keys are available during a run to stop or pause
an experiment, do tube advances, and control the diverter valve.

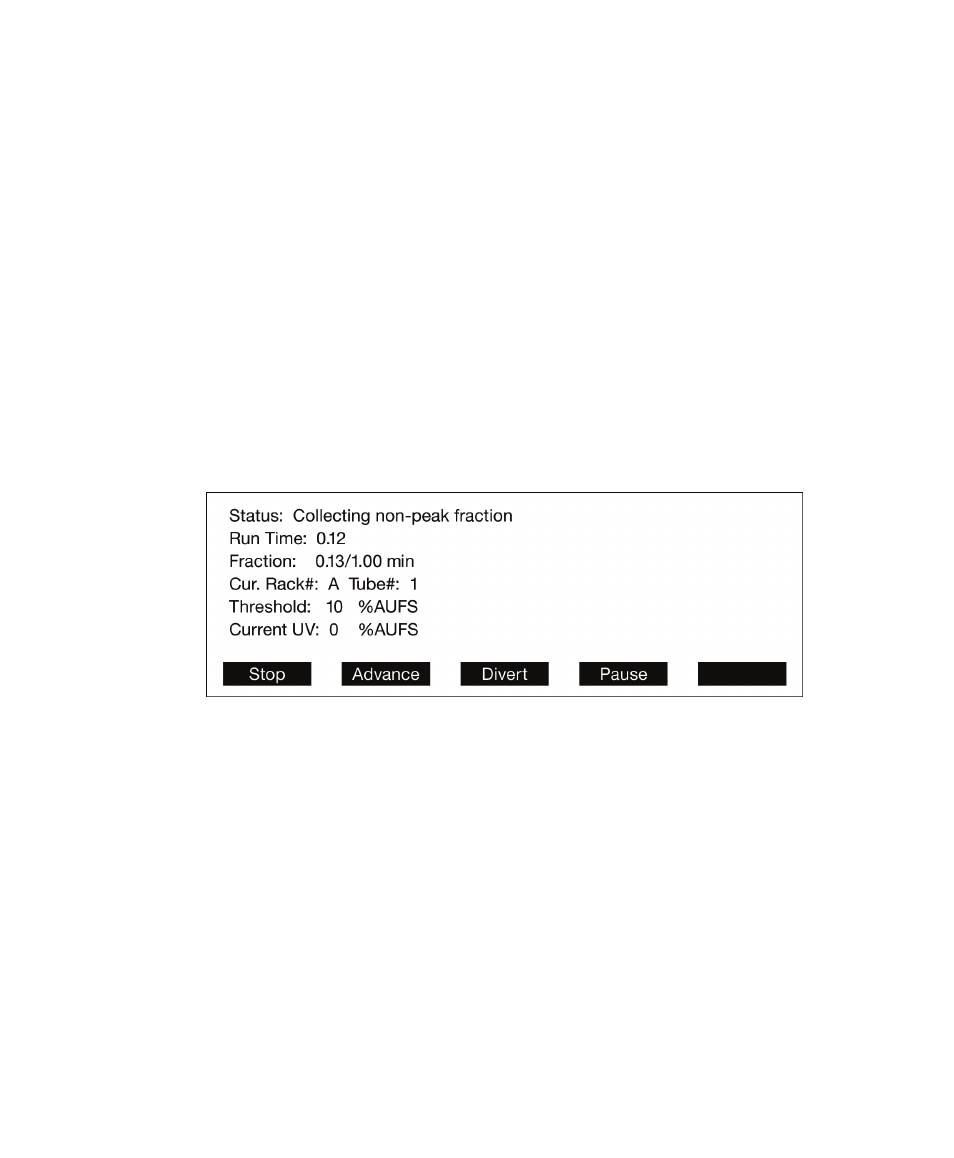

Fig. 16. Run screen (Local mode).
