TERMINAL SETUP / 55

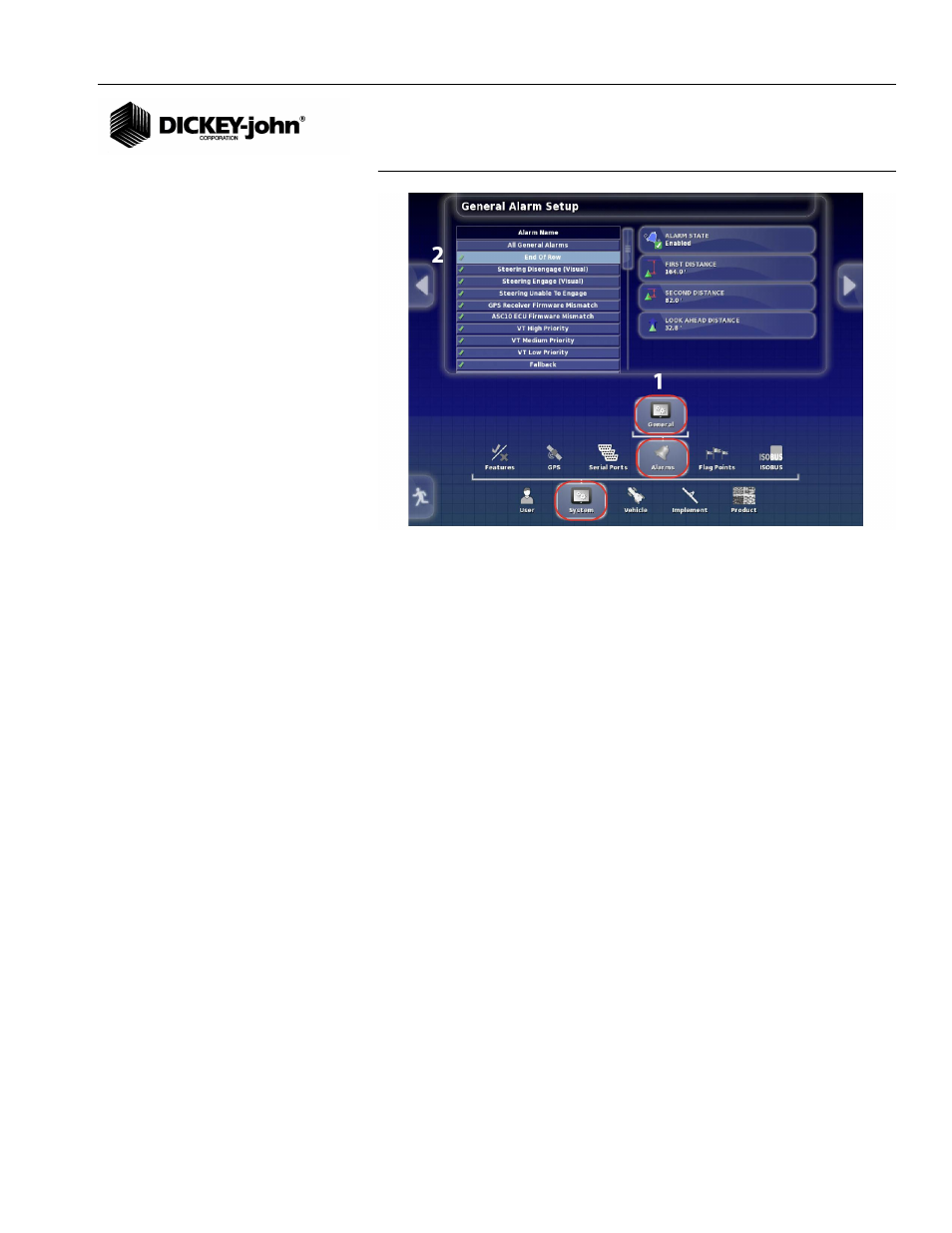

Figure 85
Alarm Menu Screen
ALARM DEFINITIONS:
END OF ROW--Three user-defined alarms alert of an end-of-row
occurrence. Any of these alarms set to a distance of 0 triggers the alarm
when the end of row is reached.
IMPORTANT: A boundary must be loaded and auto steering engaged
to use this alarm.
The End of Row alarm has three distance alarms to alert of an end of row
occurrence.
– First occurrence alarm triggers an early warning alarm indicating
that the first distance from the boundary edge has been reached to
begin slowing down the vehicle and soon take control. The distance
is measured from the tractor to the boundary along the AB line.
– Second occurrence alarm triggers an alarm indicating that the
second distance from the boundary edge has been reached and to
manually take immediate control of the vehicle to perform a turn.
– Look-ahead alarm visually displays on the console guidance screen
as the length of the indicator stick on the front of the vehicle when
auto steering is disabled. The end of row alarm will not sound when
auto steering is disabled so the indicator stick is used instead to
estimate the distance to the boundary edge when in guidance only
mode.
