OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
TERMINAL SETUP / 37

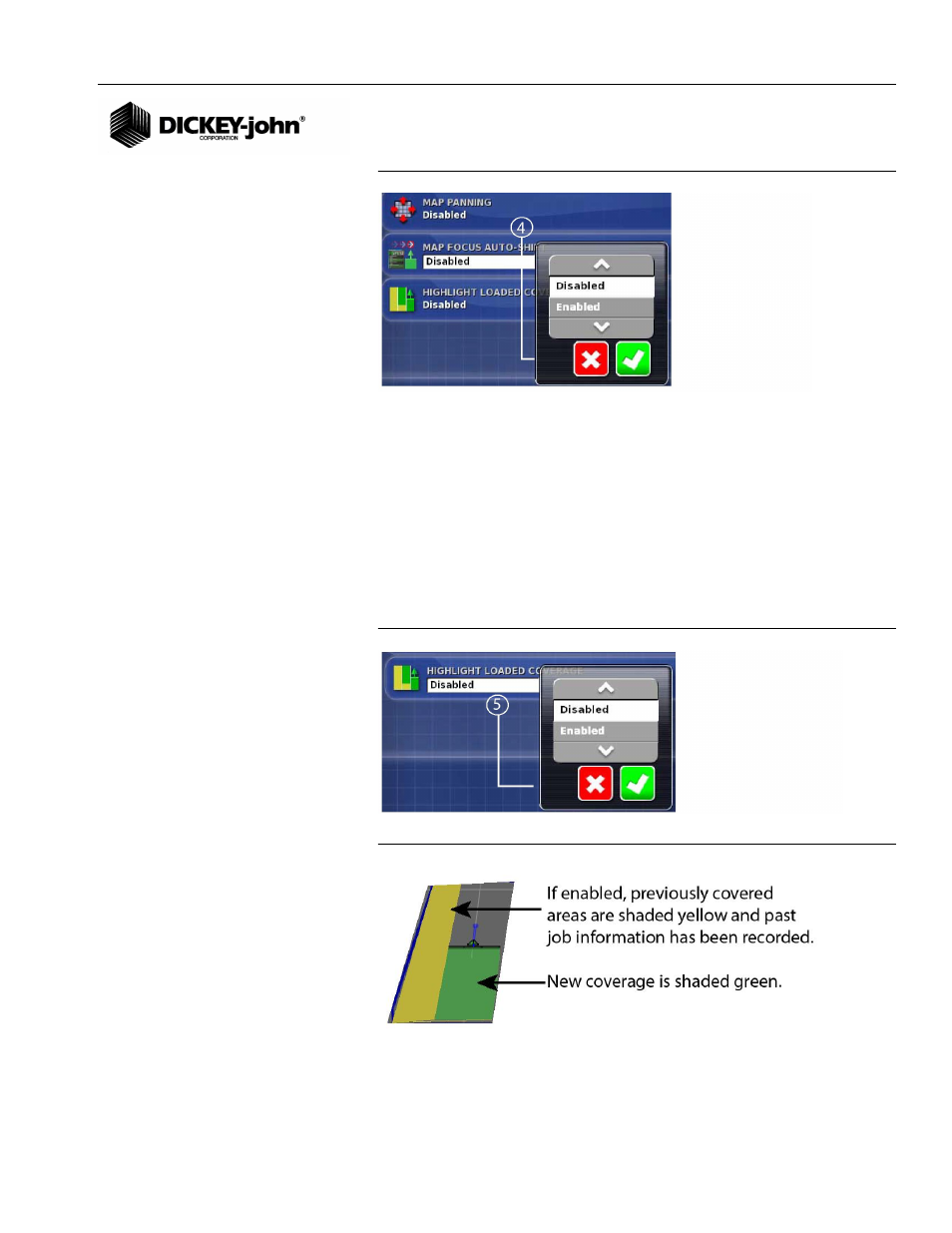

Figure 53
Map Focus
HIGHLIGHT LOADED COVERAGE
Highlight Loaded Coverage helps differentiate between coverage maps
previously created and the current recorded session.
5. Press the Highlight Loaded Coverage button to display menu
selections. Press the Check button to accept selection.
– Enabled displays the loaded coverage map as yellow and new
coverage mapping displays as green.
– Disabled displays the loaded coverage map as green and is
indistinguishable from any new coverage mapping.
Figure 54
Highlight Loaded Coverage
Figure 55
Highlight Loaded Coverage Example Map
