OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
108 / MAIN OPERATOR SCREEN

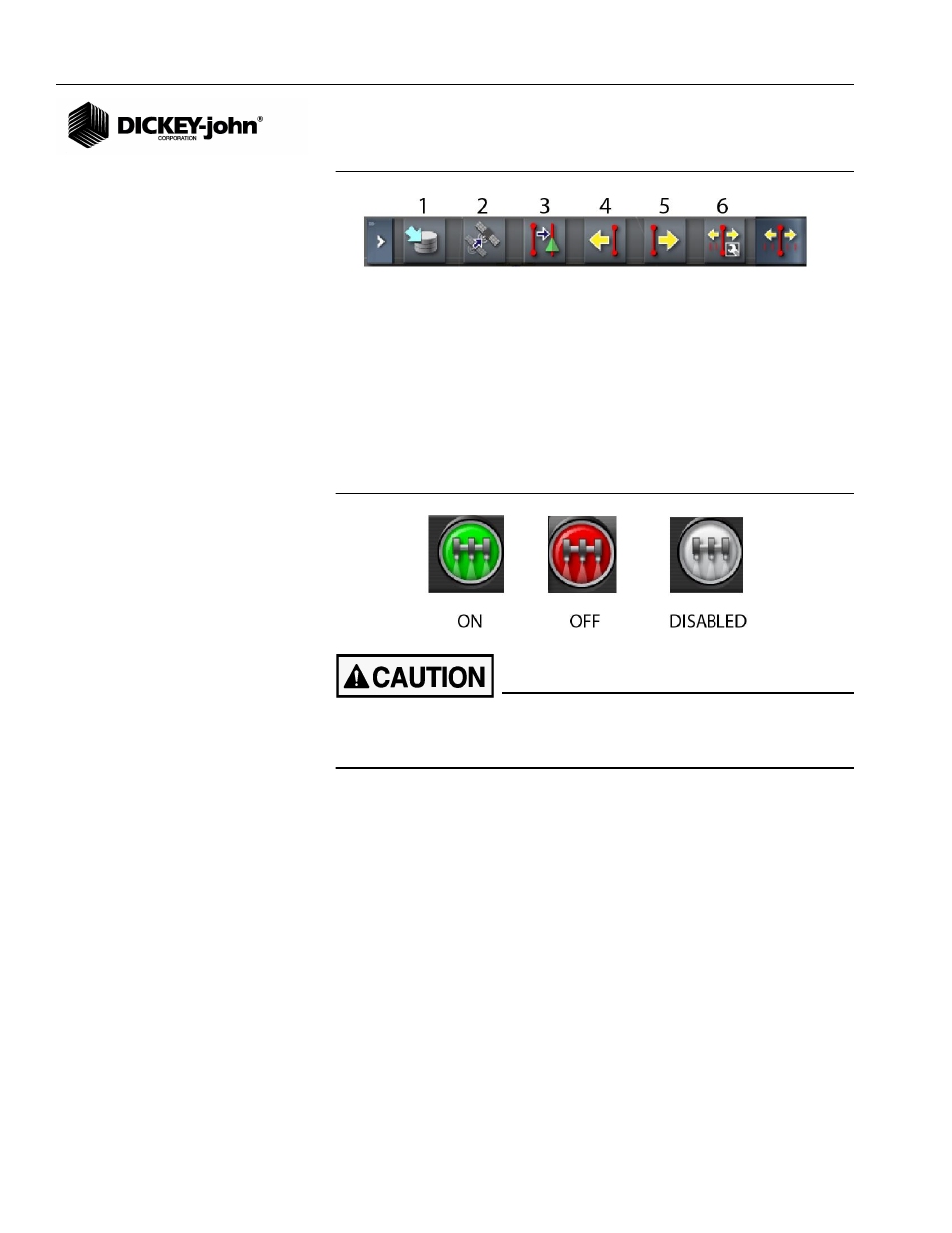

Figure 161
Nudge Buttons
MASTER SWITCH
The Master Switch button turns coverage mapping on and off during
operation. Master switch functionality requires a created job file, an
implement and vehicle loaded, and a GPS signal.
The Master Switch button has three states:
•
On
•
Off
•
Disabled
Figure 162
Master Switch
IntelliAg functions are still controlled with the IntelliAg master
switch. The virtual master switch on the AI-120 terminal only
controls swath control.
AUTOSTEERING BUTTONS
Autosteering functionality must be enabled at the Setup screen for the
Autosteering button to display. In standard guidance mode, the button is
hidden and inaccessible.
The Autosteering button has 3 states:
Red
Autosteering is in failure mode due to potential issues. Press the
Autosteering button to display the Steering status screen. Any item
preventing engagement displays in red.
Green
Autosteering is engaged and operating.
White
Autosteering is on standby and can be engaged at any time.
