CHAPTER 6 TROUBLESHOOTING
6–7
❏ ❏ ❏ ❏ Paper Jam near the Drum Unit
If a paper jam has occurred near the drum unit, open the top cover and
remove the drum unit. ( ➀ ) Then, pull the jammed paper upwards
slowly and out of the printer. ( ➁ ) Install the drum unit and close the
top cover.

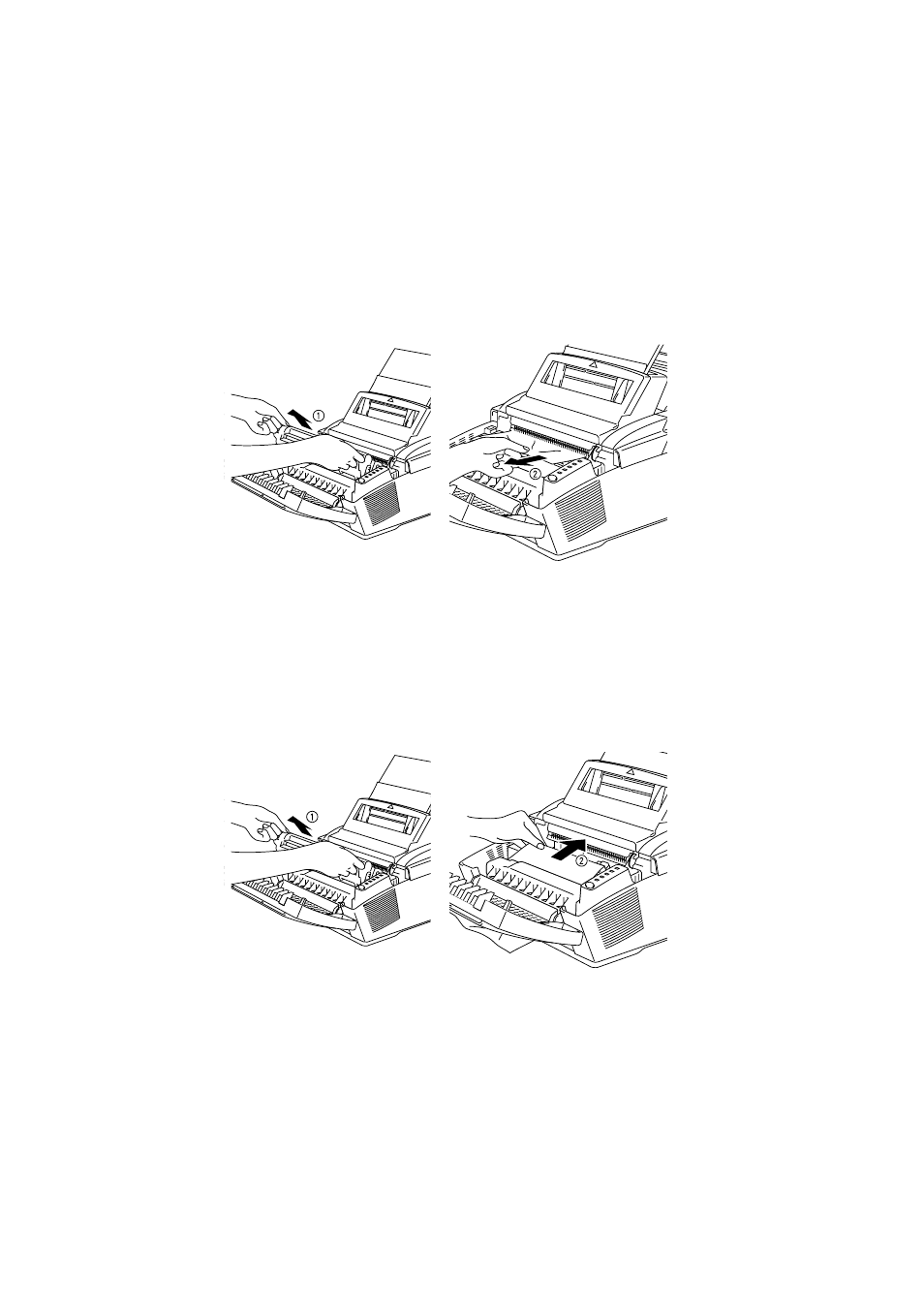

Fig. 6-5 Paper Jam near the Drum Unit
❏ ❏ ❏ ❏ Paper Jam in the Fuser Unit or at the Paper Output Tray
If a paper jam has occurred in the fuser unit or at the paper output
tray, open the top cover and remove the drum unit. ( ➀ ) Then, pull
the jammed paper slowly out of the fuser. ( ➁ ) Install the drum unit
and close the top cover.
Fig. 6-6 Paper Jam Inside the Printer
