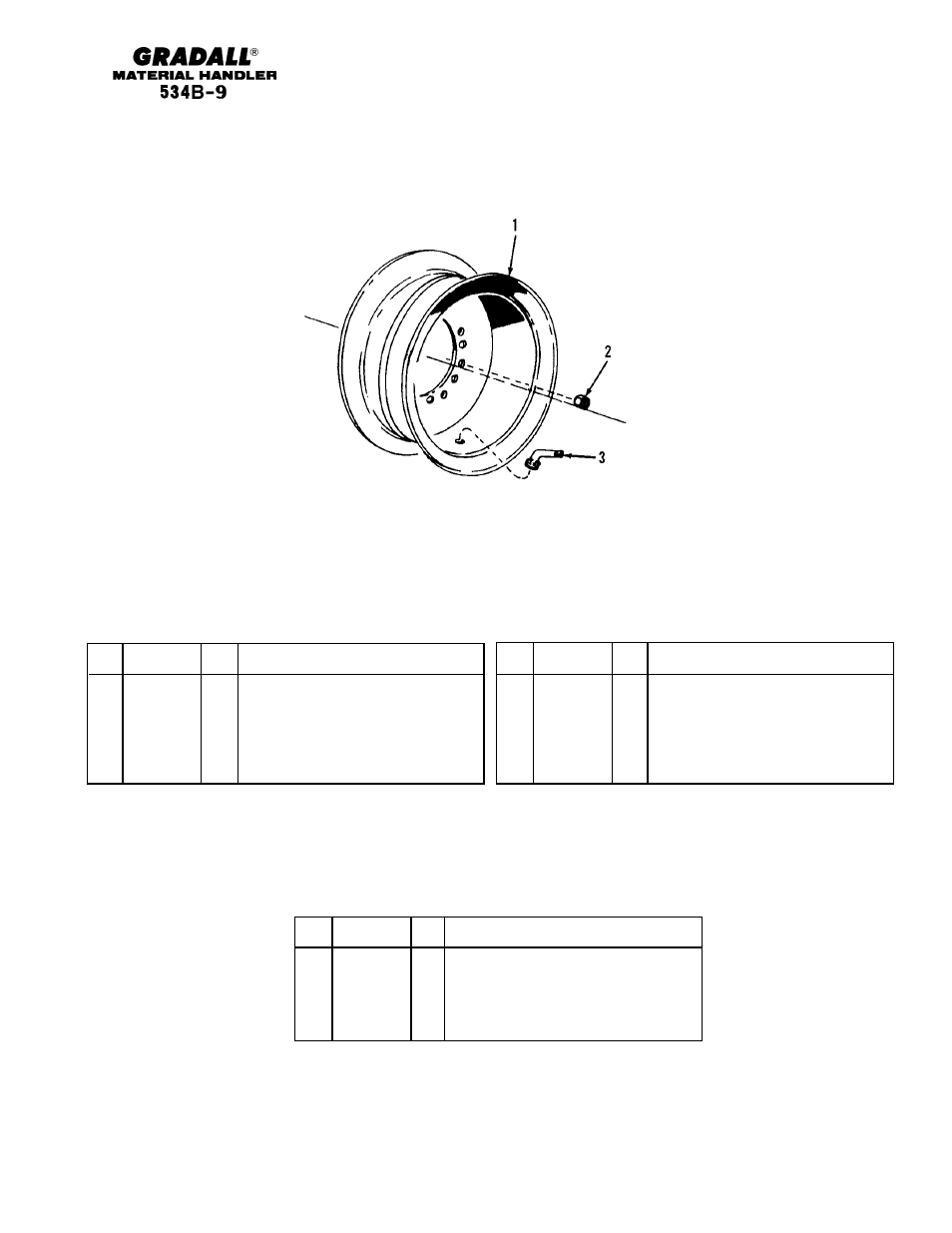

Item Part No. Qty. Description Of Part
1 9104-3292 1 RIM, 14.00 X 25
2 9104-3146 12 LUG NUT (lubricate and torque to
350-400 ft. lbs.)
3 9020-1452 1 VALVE
4 9103-3361 1 TIRE, 17.5 X 25, ( L-2 Michelin radial)
(not illustrated)
Item Part No. Qty. Description Of Part
1 9104-3298 1 RIM, 9.00 X 24
2 9104-3146 12 LUG NUT (lubricate and torque to 350-
400 ft. lbs.)
3 9108-3385 1 VALVE
4 9103-3104 1 TIRE, 13.00 X 24, 12 PLY (G-2 traction
regular tread) (not illustrated)
Item Part No. Qty. Description Of Part
1 9104-3298 1 RIM, 9.00 X 24
2 9104-3146 12 LUG NUT (lubricate and torque to 350-
400 ft. lbs.)
3 9108-3385 1 VALVE
4 9103-3104 1 TIRE, 13.00 X 24, 12 PLY (G-2 traction
regular tread) (not illustrated)
REAR-STANDARD FRONT-STANDARD
DRIVE TRAIN
Wheels & Tires
Starting Serial No. 0144900S
Original Issue 10-90
Revised 9-1-99
FRONT-FLOATATION
6-15 J J * Complete revision of the page numbers in section 6.
