13-6
OPTIONAL EQUIPMENT

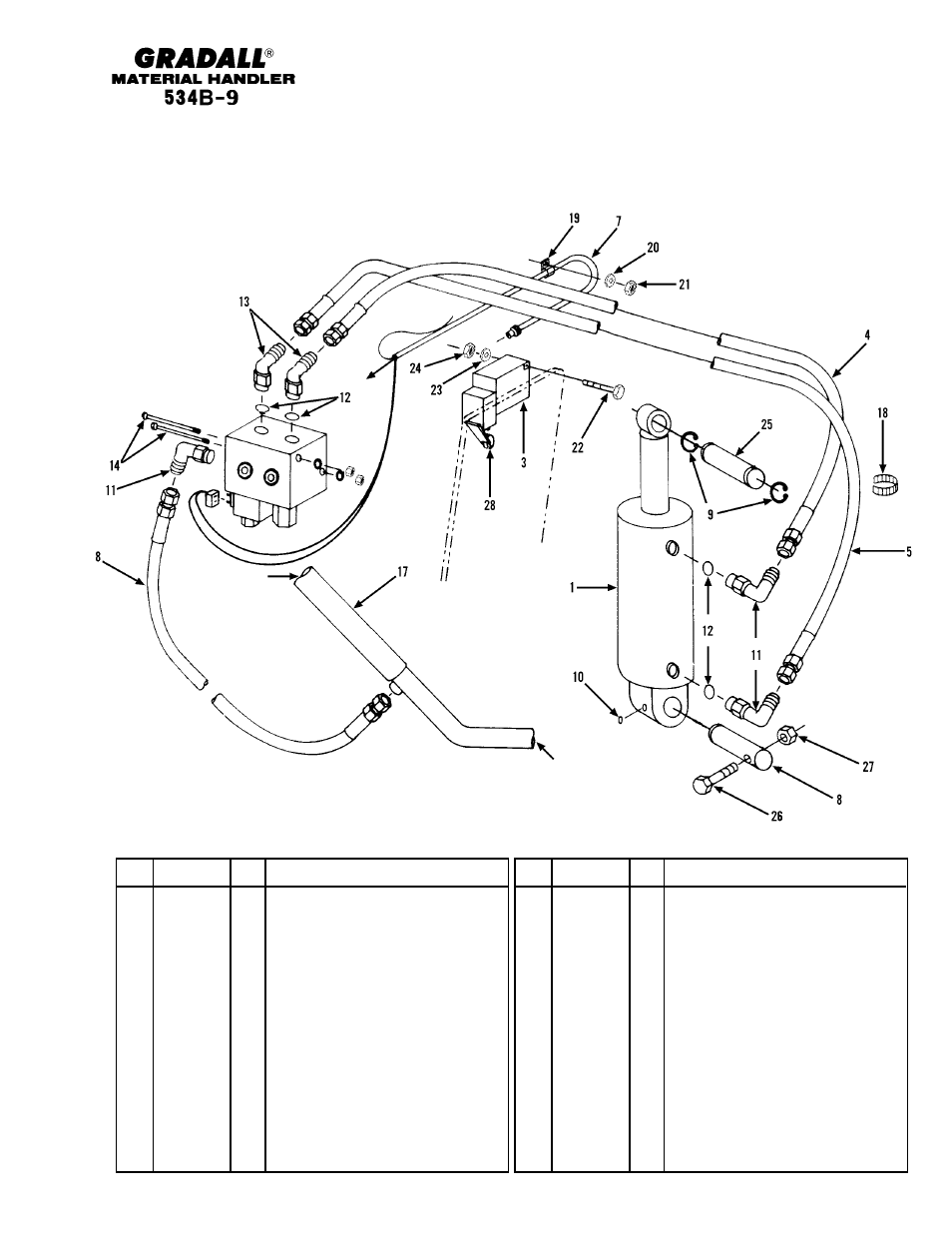

Stabilizer Option
Starting Serial No. 0144860S
Original Issue 10-90
Revised 10-26-93
Item Part No. Qty. Description Of Part
14 8320-1073 2 HEX HD CAPSCREW, 3/8-16 X 4-1/2
15 8855-1011 2 LOCKWASHER, 3/8
16 8850-1006 2 HEX NUT, 3/8-16
17 9104-3144 1 DUMP TUBE
18 9002-7187 6 TIE WRAP
19 9002-1705 1 TUBE CLAMP
20 8856-1002 1 FLAT WASHER, 1/4
21 8852-1204 1 HEX LOCKNUT, 1/4-20
22 8830-1099 2 ROUND HD MACHINE SCREW, #10-
24 X 1-3/4
23 8855-1007 2 LOCKWASHER, #10
24 9104-3199 2 SQUARE NUT, #10-24
25 9104-1227 1 PIN
26 8820-1044 1 HEX HD CAPSCREW, 3/8-16 X 3-1/4,
GR5
27 8852-1206 1 HEX LOCKNUT, 3/8-16
28 9104-4475 1 LEVER/ROLLER ASSY
Item Part No. Qty. Description Of Part
9103-5236 1 STABILIZER OPTION (includes all
items except #17)
1 1 STABILIZER CYLINDER ASSY (see
page 13-15 for details)
2 9111-3003 1 STABILIZER VALVE
3 9104-3123 1 SWITCH (includes item #28)
4 8471-7847 1 HOSE ASSY
5 8471-7848 1 HOSE ASSY
6 8471-6426 1 HOSE ASSY
7 9104-5034 1 BOOM SWITCH HARNESS
8 9112-1017 1 PIN
9 8858-1140 2 RETAINING RING
10 8867-1008 2 LUBE FITTING, STRAIGHT, 1/4-28
11 8866-2065 3 ELBOW, 90 DEGREES (includes item
#12)
12 8859-1205 5 O-RING
13 8866-2085 2 ELBOW, 45 DEGREES (includes item
#12)
TO HYDRAULIC
RESERVOIR
TO FORWARD/REVERSE VALVE
