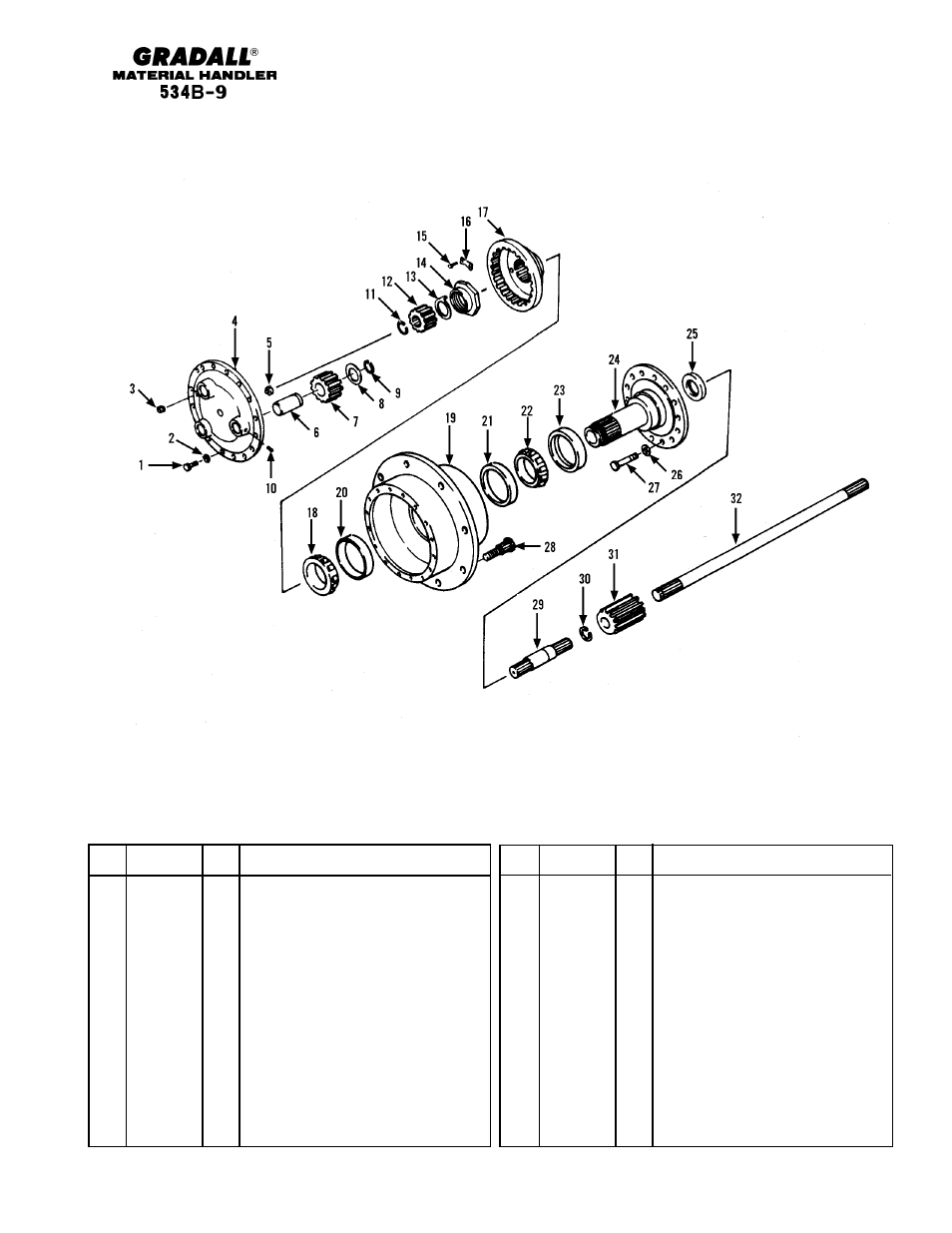

Drive train front axle shaft & planetary wheel end – Gradall 534B-9 Parts Manual User Manual
Page 78
DS
* Re-released page.
Item
Part No.
Qty.
Description Of Part
18
9104-4392
2
HUB BEARING, OUTER CONE
19
9104-4393
2
WHEEL HUB ASSY (includes items 20,
21)
20
9104-4394
1
HUB BEARING, OUTER CUP
21
7710-4444
1
HUB BEARING, INNER CUP
22
7710-4445
2
HUB BEARING, INNER CONE
23
9104-4395
2
OIL SEAL
24
9104-4396
2
SPINDLE ASSY (includes items 25)
25
9104-4397
1
OIL SEAL
26
8308-1182
28
WASHER
27
9104-4398
28
HEX HD CAPSCREW
28
9108-4126
24
WHEEL STUD
29
9104-4399
2
OUTER AXLE SHAFT
30
9104-4400
2
COUPLEING SNAP RING
31
9104-4401
2
AXLE SHAFT COUPLING ASSY
(includes item 30)
32
9104-4402
2
INNER AXLE SHAFT
Item
Part No.
Qty.
Description Of Part
1
9108-4112
48
HEX HD CAPSCREW
2
9108-4113
48
WASHER
3
7710-4343
2
OIL LEVEL PLUG
4
9104-4383
2
PLANET GEAR SPIDER ASSY (includes
item 5 thru 9)
5
9108-4106
2
THRUST BUTTON
6
9104-4385
6
PLANET PINION SHAFT
7
9104-4384
6
PLANET PINION
8
9104-4386
6
THRUST WASHER
9
9108-4107
6
SNAP RING
10
9108-4114
6
PINION SHAFT SET SCREW
11
9108-4107
2
AXLE SHAFT SNAP RING
12
9104-4387
2
PLANETARY SUN GEAR
13
9108-4109
2
SUN GEAR THRUST
14
9104-4388
2
HUB BEARING NUT
15
9104-4389
4
HEX HD CAPSCREW
16
9104-4390
2
WHEEL BEARING NUT LOCK
17
9104-4391
2
PLANET RING GEAR
6-14
DRIVE TRAIN
Front Axle Shaft & Planetary Wheel End
Starting Serial No. 0144900S
Original Issue 10-90
Revised 6-23-00
