HYDRAULIC COMPONENTS

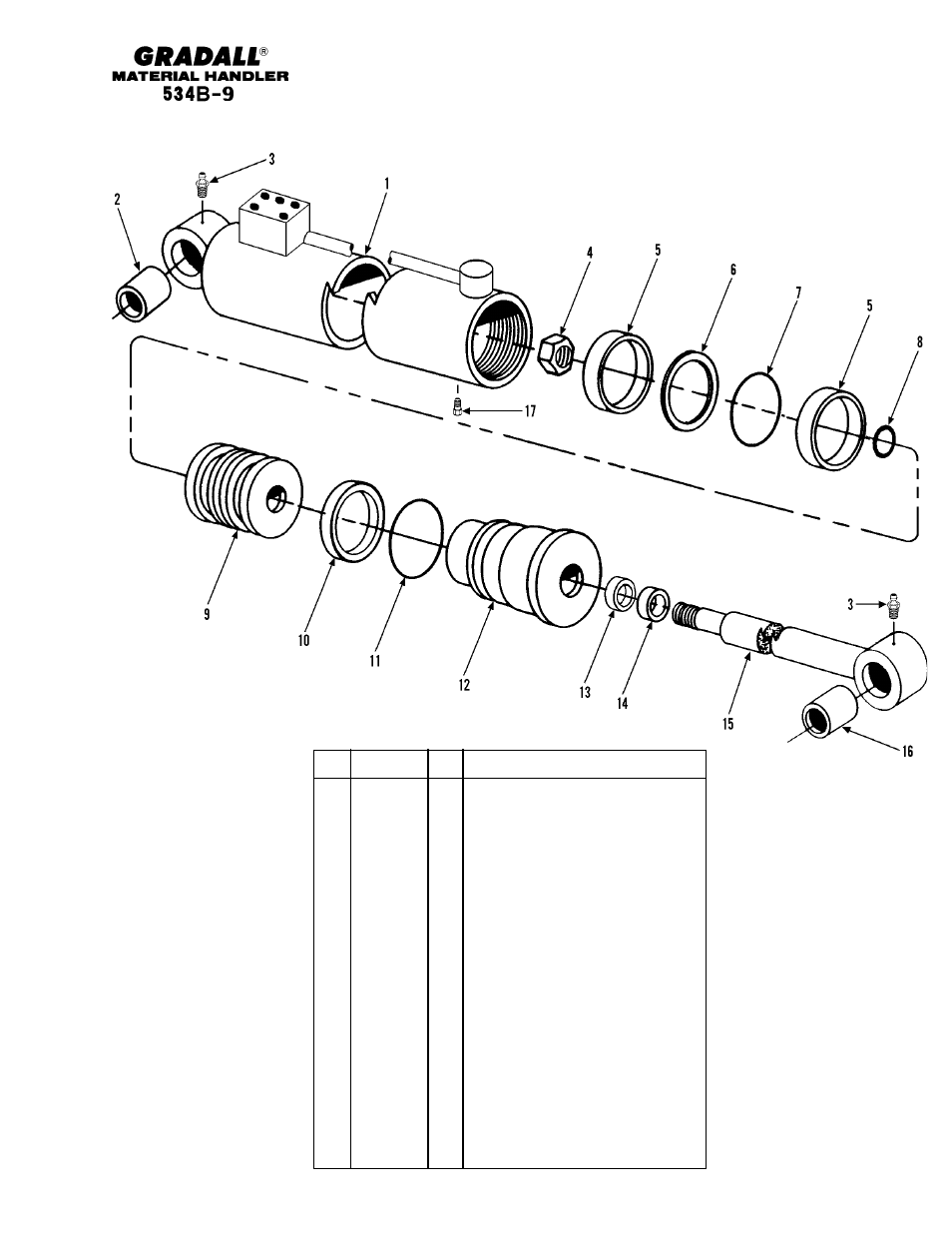

(9103-3367) Sway Cylinder
Starting Serial No. 0144860S
Original Issue 10-90
Revised 5-93
10-5
Item Part No.
Qty.
Description Of Part
9103-3367
1
SWAY CYLINDER ASSY (includes all
items)
9103-4297
AR
SEAL KIT (includes items 5, 6, 7, 8,
10, 11, 13, 14)
1
9103-4298
1
TUBE ASSY (includes item #2)
2
9108-4176
1
BUSHING
3
8867-1033
2
LUBE FITTING, STRAIGHT, 1/4-28
4
9103-4286
1
LOCKNUT (torque to 590 ft. lbs.)
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9103-4291
1
PISTON
10
1
BACKUP RING
11
1
O-RING
12
9103-4299
1
GLAND
13
1
SEAL
14
1
WIPER
15
9104-4300
1
ROD ASSY (includes item #16)
16
9108-4176
1
BUSHING
17
9103-4332
1
SET SCREW
NOTE:
ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
