CHAPTER 4

DISASSEMBLY AND RE-ASSEMBLY

4-26B

NOTE:

When re-assembling the paper eject actuator and the eject paper spring to the fixing unit
cover, ensure the paper eject actuator is seated correctly in the locating channel referring to
the figure below;

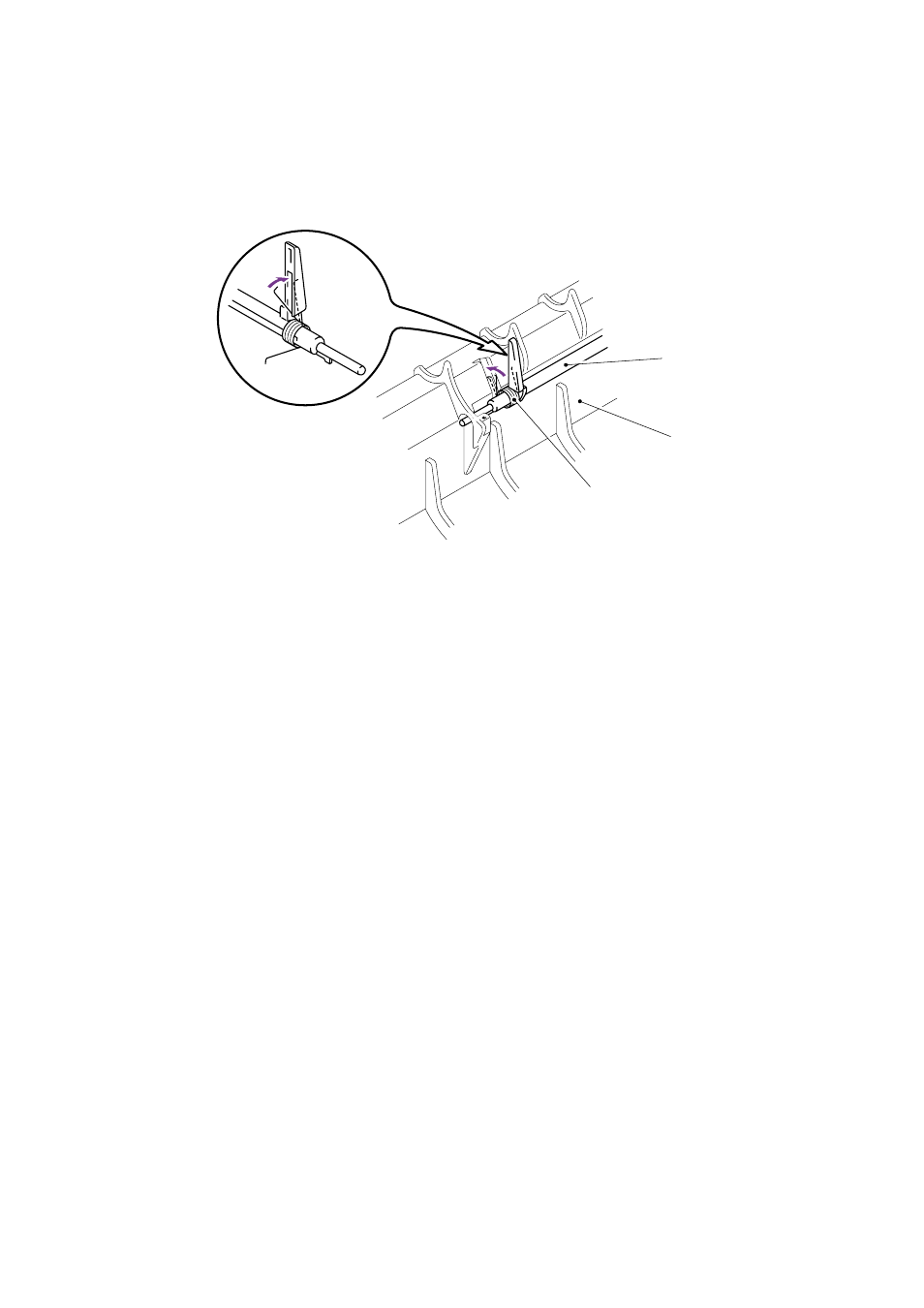

Fig. 4-48c

PR2000057

Paper eject actuator

Fixing unit cover

Eject actuator spring
