CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-25
NOTE:
•
When re-assembling the pressure roller cleaner complete with the cleaner spring onto the
fixing unit cover, ensure the direction of the roller is correct referring to the figure above.
•
Ensure also that the spring is seated correctly in the locating channel and does not protrude
from either end.

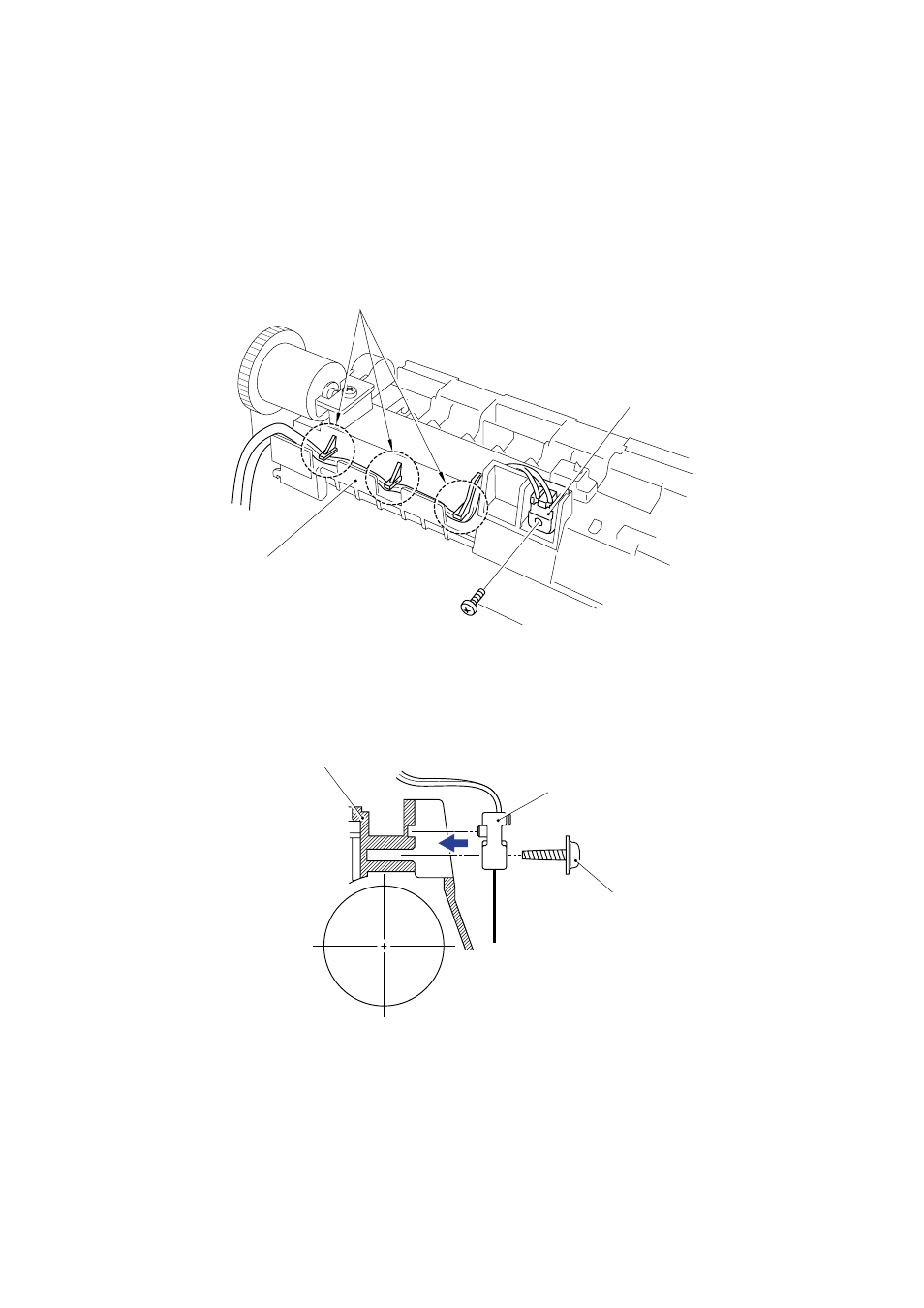

(21) Release the thermistor harness from the hooks on the fixing unit frame and then remove
the one M3x12 Taptite screw and remove the thermistor.
Fig. 4-45
NOTE:
When re-assembling the thermistor to the fixing unit frame, ensure the direction of the
thermistor is correct referring to the figure below;
Fig. 4-46
Thermistor
Taptite, cup M3x12
Fixing unit frame
(hooks)
Thermistor
Taptite, cup M3x12
Fixing unit frame
