Attaching the Monitor Arms

After you’ve figured out which screws to use for your TV, attach each Monitor Arm

(MA) to the back of the TV as shown in Figures 1 and 2. Make sure the the arms are

oriented properly, with the adjustment levers facing toward the outer edge of the TV so

you can reach them later.

Also make sure that each Washer (R for M4 or M5 screws, or S for M6 or M8 screws)

is placed between the screw and the monitor arm. Don’t place the washers between the

arms and the TV.

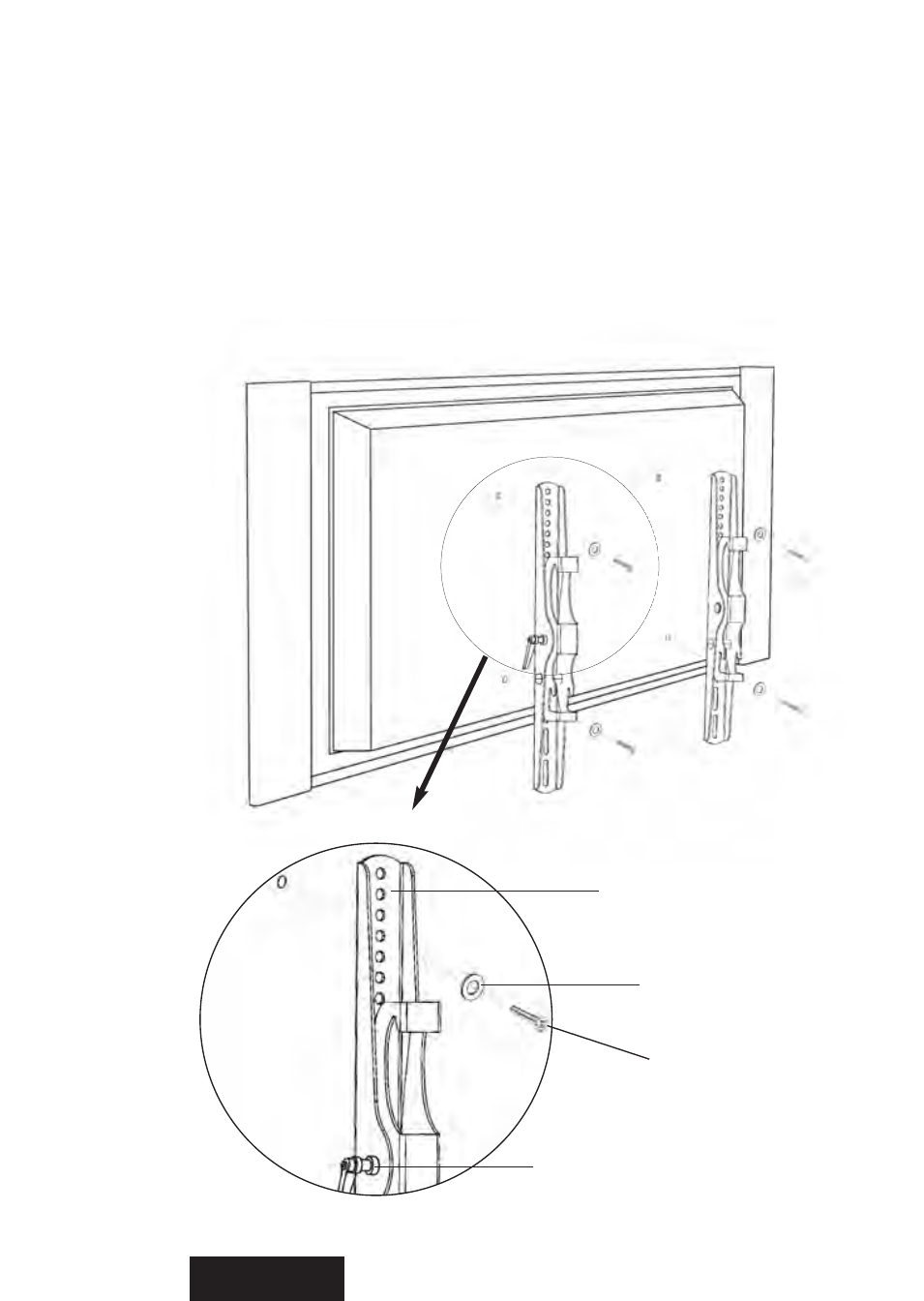

Figure 1

MA
