Using the tilting arm feature
After you’ve securely locked the TV with the monitor arms securely onto the wall plate,
you can safely adjust the tilting feature on the arms. The arms can tilt up to 15° downward
or up to 5° upward, depending on your optimum viewing position. Have your assistant hold
the TV steady before you start to adjust the tilt. To adjust the tilt of your TV, simply reach
behind the TV and turn the lever in the center of the arm to loosen. It works like a ratchet
so that you can loosen the lever easily in a very confined area. To disengage the lever, rotate
it away from the monitor arm and reposition as shown in Figure 16. Push it in again to turn
and adjust the arm’s tension as shown in Figure 15. Repeat this procedure for the lever on
the other arm also before attempting to position the TV.
After the TV is in the desired tilted position, you need to tighten the levers. Turn the levers
clockwise to tighten, pulling out to disengage the rachet mechanism.

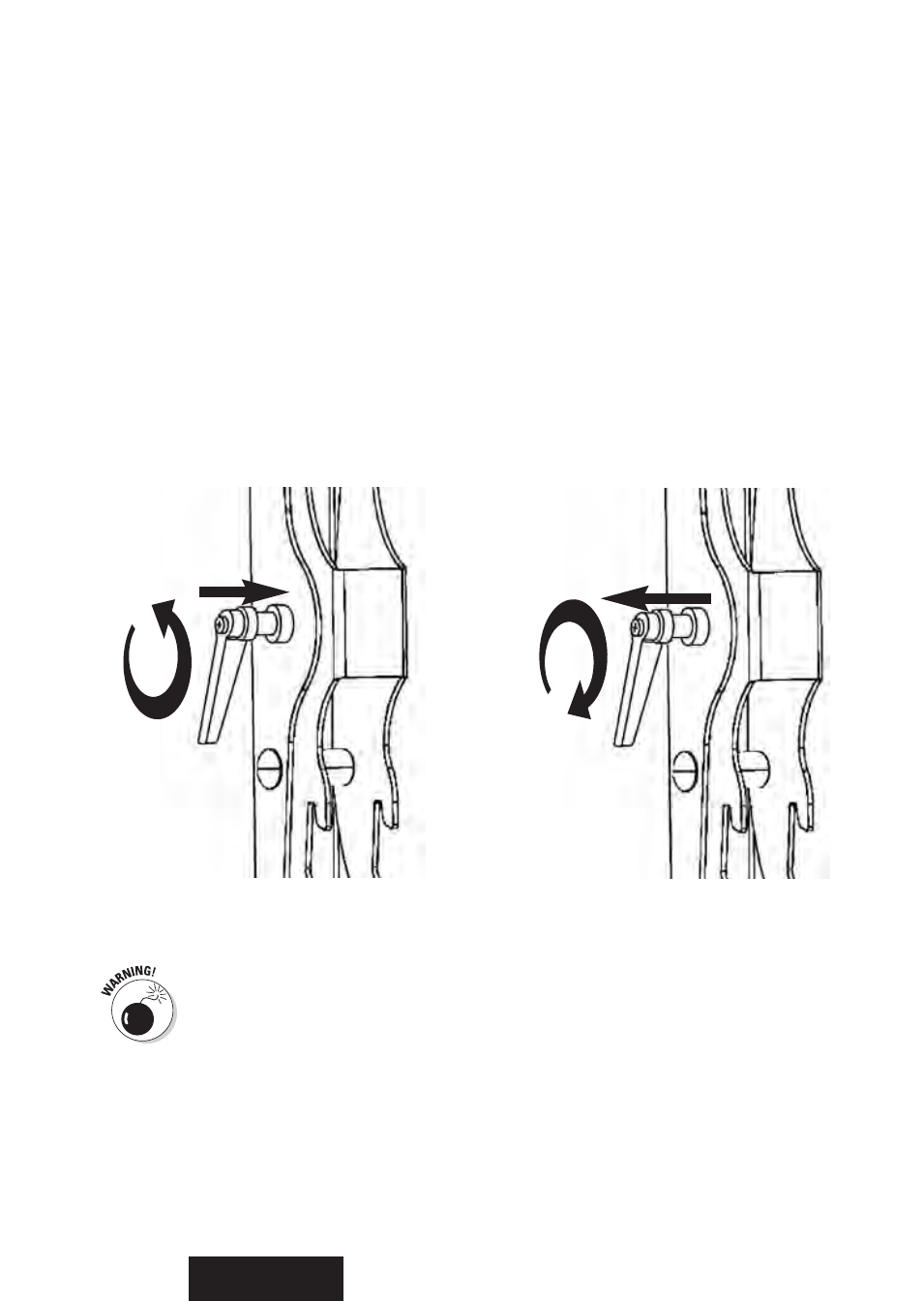

Figure 15
Push In to
Turn Lever
Turn
Counter-
Clockwise
to Loosen
Figure 16
Pull Out to
Disengage Lever
Turn
Clockwise
to Tighten
If you need to remove the TV
Flat screen TVs are very heavy and extremely fragile. Exercise caution when
removing the display from the mount to avoid equipment damage or personal injury.
If your cables are accessible, disconnect all power and A/V cables before removing the
TV with the Monitor Arms (MA) from the Wall Plate (WP). If cables are not
accessible, have an assistant remove the cables as soon as the TV is lifted off the mount.
Have an assistant hold the TV in place as you unlock the locking mechanism as
described in Figure 12. After the locking mechanism has been disengaged fully, you can
lift the TV off of the bracket and away from the wall.
