This kit includes the TOGGLER ® brand ALLIGATOR ® Anchors (U) for mounting in
concrete walls, brick, or cinder block. These patented anchors are the finest solid wall
anchors on the market and offer excellent holding ability when properly installed.

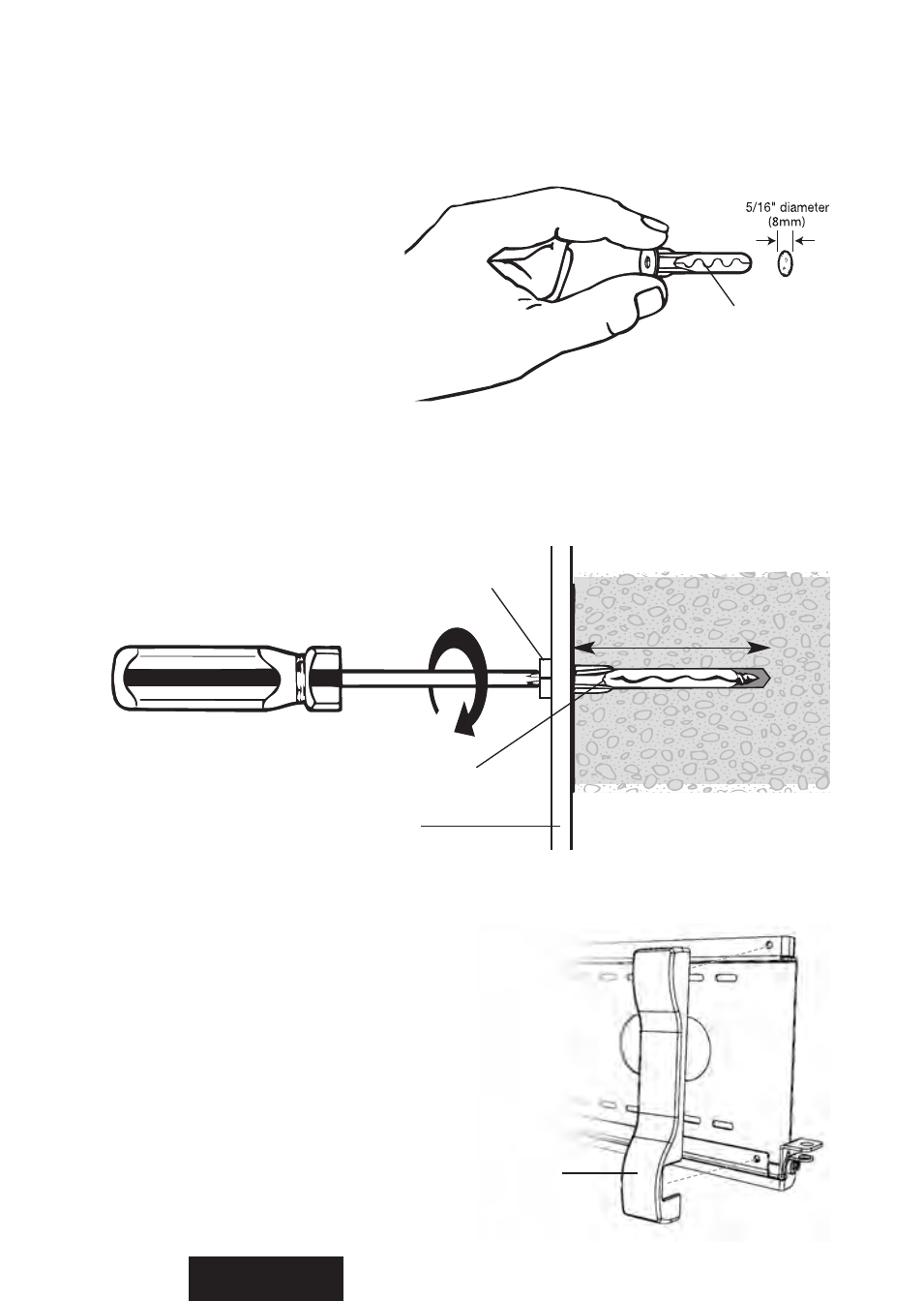

After the holes are drilled,
remove the template and
place four ALLIGATOR ®
Anchors into the concrete
wall as shown in Figure 9.
Figure 9
U
After you have prepared the holes for mounting the Wall Plate (WP), install the wall plate
by inserting the four Lag Bolts (T) through the mount and into the ALLIGATOR ®
Anchors (U) as shown in Figures 7 and 10. After checking that the wall plate is level,
tighten all lag bolts fully, but be careful not to over-tighten.
Figure 10
WP
U
T
Concrete
3" (76mm)
minimum hole depth
Installing the decorative End Covers
Even though your TV hides most of your
wall mount from view, from the sides you
can probably still see the ends of the
bracket. This kit includes decorative End
Covers (EC) to make your bracket
installation look clean and finished. To
install the end covers, simply line up the
cover with the end of the bracket, and
press into place. Look for two holes in the
frame of the bracket, which the end cover
inserts into, as shown in Figure 11.
WP
EC
Figure 11
