Front view of the server
This topic provides information to help you locate the parts on the front of the server.
The front view of the server varies by model. The illustrations in this topic show the server front views
based on the supported hard disk drives:
• Front view of server models with 3.5-inch hard disk drives
• Front view of server models with 2.5-inch hard disk drives
Note: Depending on the model, your server might look slightly different from the illustrations in this topic.
Front view of server models with 3.5-inch hard disk drives
The following illustration shows the front view of server models with 3.5-inch hard disk drives.

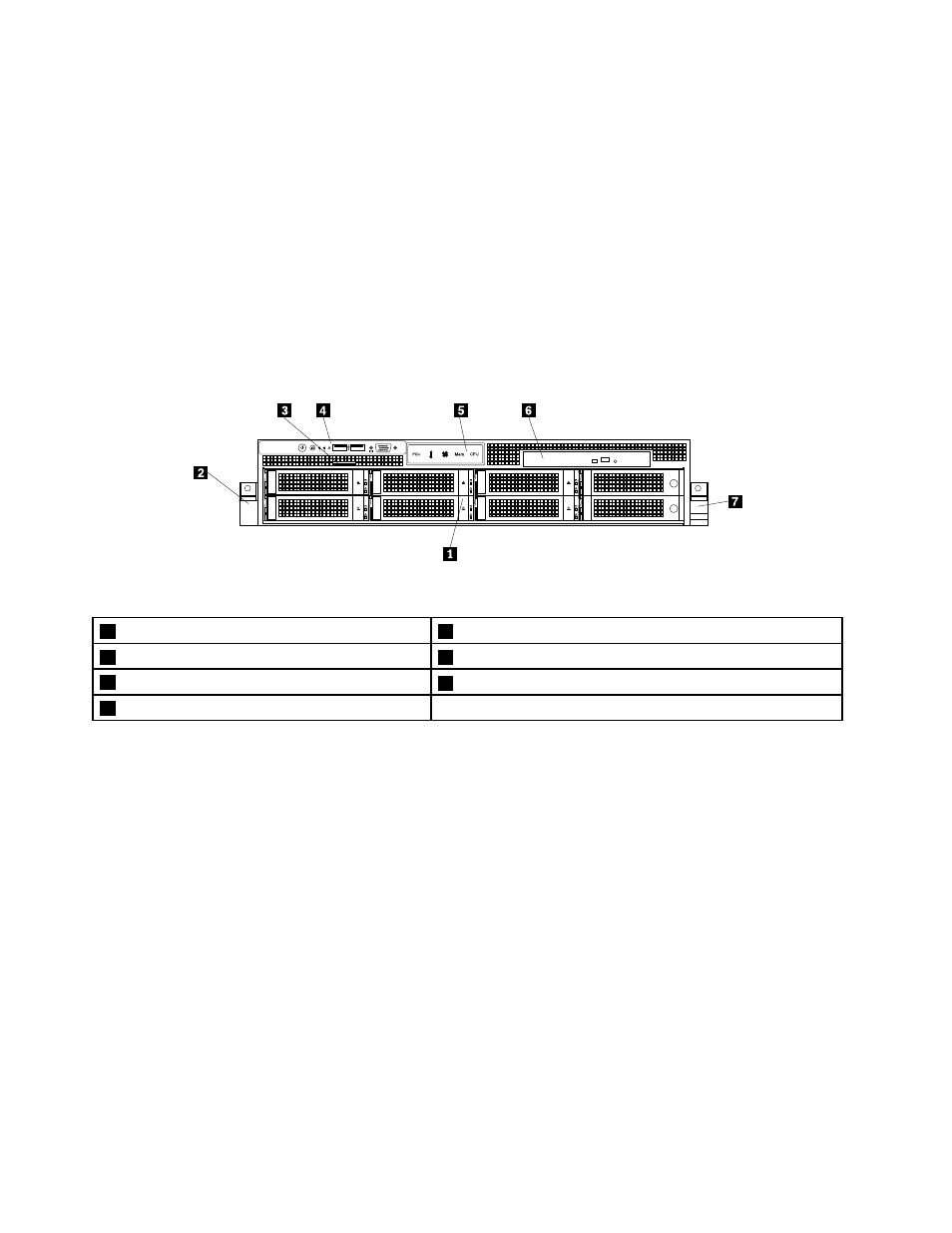

Figure 4. Front view of server models with 3.5-inch hard disk drives
1 3.5-inch hard disk drive area 5 Diagnostic panel (varies by model)
2 Rack handle (left) 6 Slim optical drive (available in some models)
3 Pull-out information card 7 Rack handle (right)
4 Front panel
