Changing the torque cylinder – Hawk Industries Hawkjaw Sr. Manual 100K-2GSR Serial Numbers 121 to 140 User Manual

Page 58

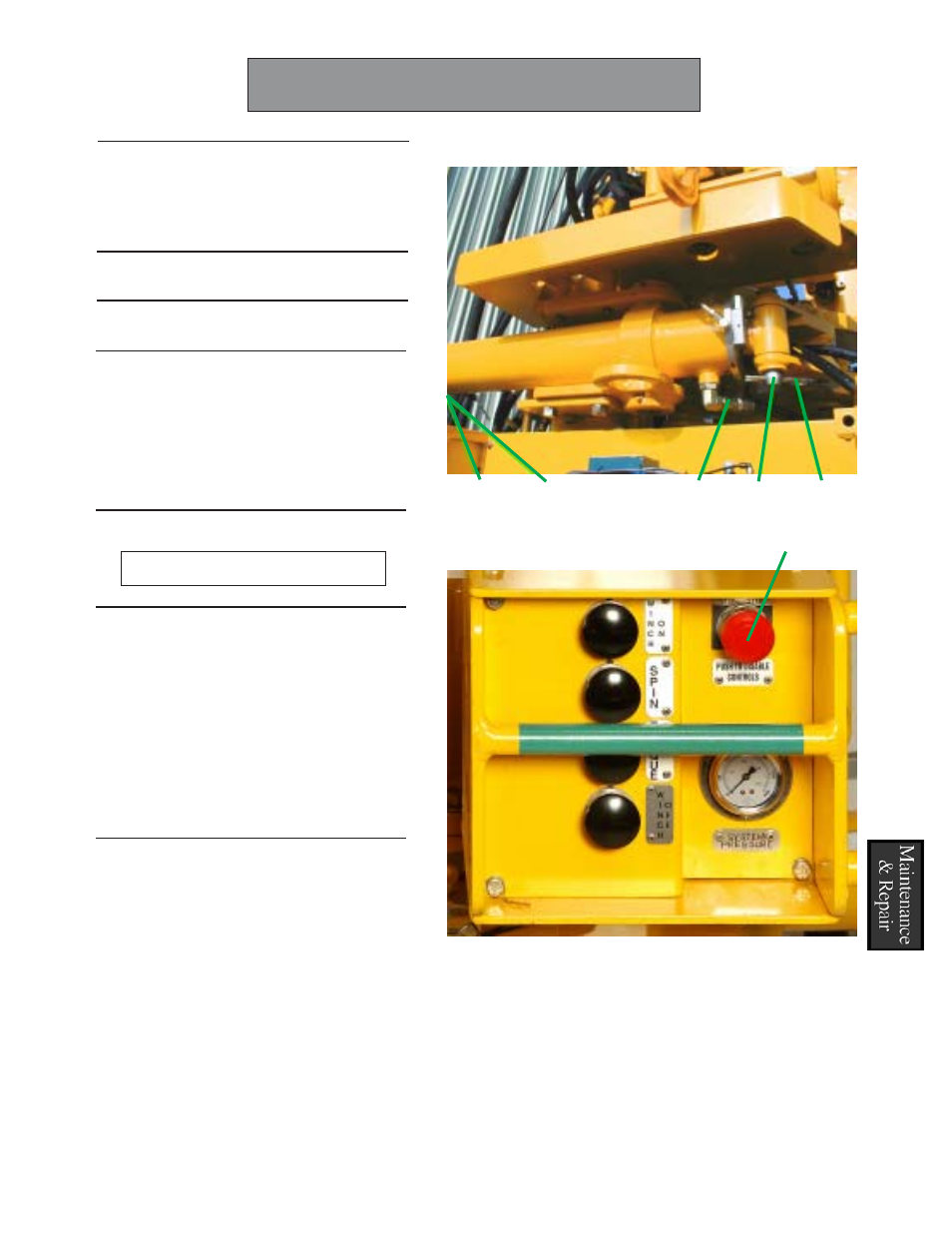

21. Use the 1" and 1 1/8" wrench to

connect the Rod side Hose (RH)

and the Cap side Hoses (CH1),

(CH2).

22. Insert the Torque Cylinder Rod

Pin (P).

23. Insert the Torque Cylinder

Safety Clip (SC).

24. Make sure no bodily parts are

in the retract path of the Torque

Cylinder. Turn on the

hydraulic power unit. Pull out

the “E” stop. The Middle

wrench will retract.

Part Numbers

Part Name

Part #

Mount Bolt (TBH)

999-806542-1

Mount Bolt (TBA)

999-806542

Mount Bolt (BB)

999-806529

Lock Washers

061- 91074A036

Safety Clip (SC)

061- 98335A114

Torque Cylinder Rod Pin (P)

061-20204A

Torque Cylinder (C)

061-H17

WARNING

Make sure the Torque Cylinder
Rod and Cap side Hoses are
properly connected.

WARNING

Make sure the Low Torque
Warning System Hydraulic Hoses
are securely connected.

Maintenance & Repair 57

Changing the Torque Cylinder

CH2

CH1
