42 Maintenance & Repair
Changing the Heel Dies Changing the Heel Dies
Part Numbers
Part Name Part #
Lock Washer 999-810703
Die Roller Bolt (B) 999- 806307
Die Roller (R) 061-20210
Die (D) 061-20194
Die Holder (DH) 061- 20192-1A
Heel Die Pin (P) 061-92384A092

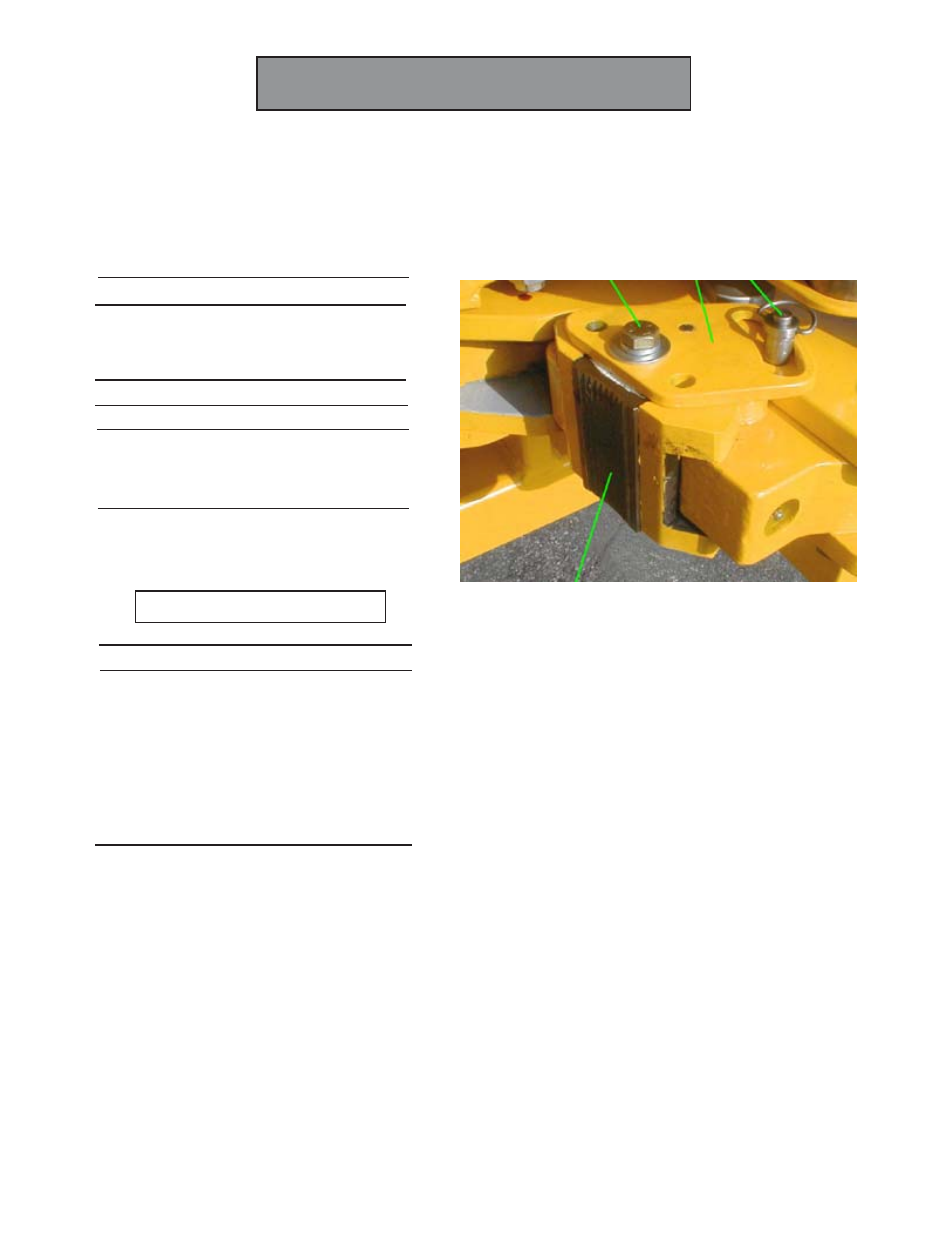

6. Grease the back of the new Die.
7. Insert the new Die into the Die
Holder (DH) with the teeth of the
Die facing out.
8. Replace the Top Die Retainer (DR).
9. Insert the Heel Die Pin (P).
10. Use the 3/4" wrench to replace the
Heel Die Bolts (B) and Lock
Washers.
B DR P
D
