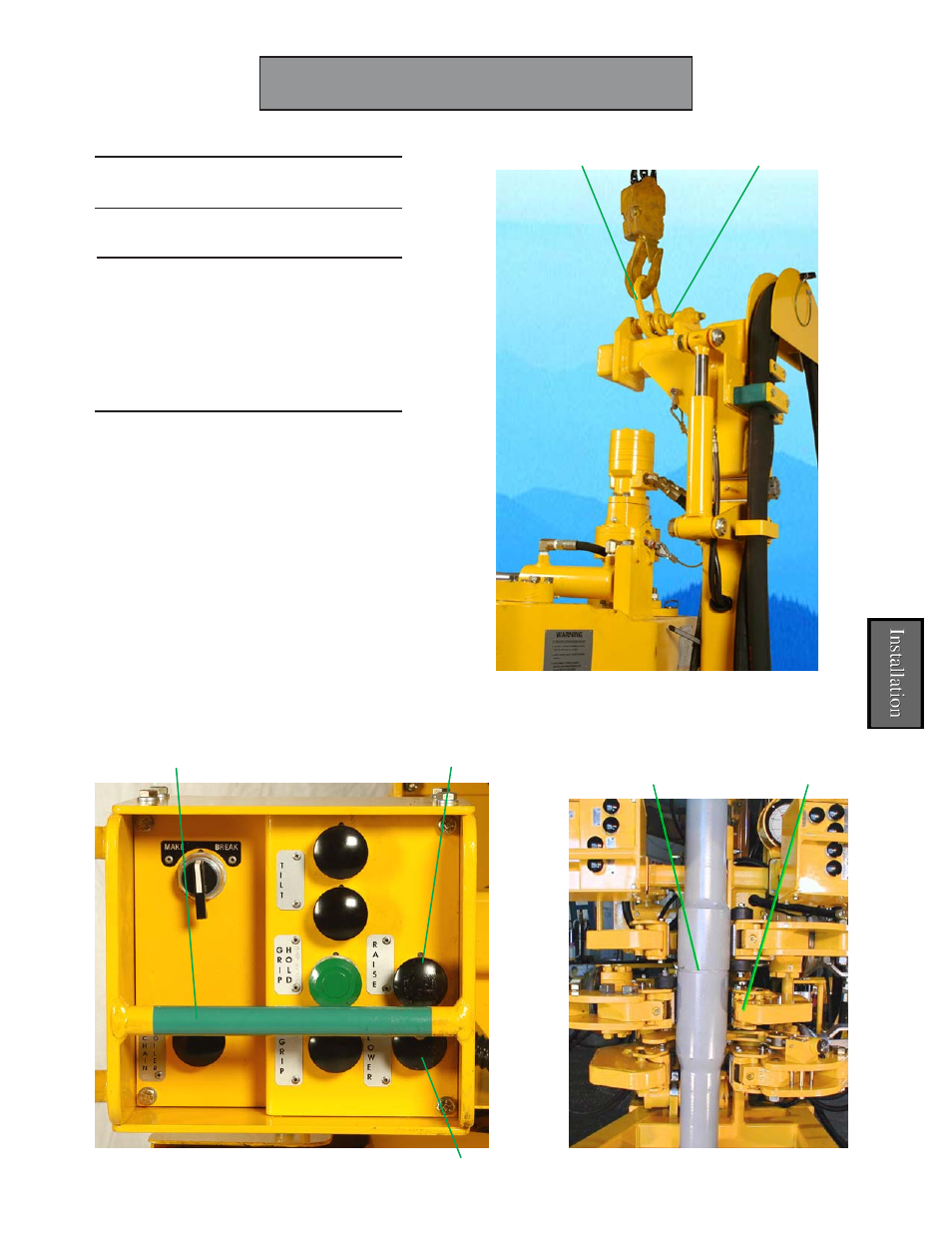

7. Center the Suspension Ring (SR)
on the Lateral tilt screw (LTS).
8. Use Raise (R) to raise the HawkJaw
1'- 2' ft. off the rig floor.
9. Use the Control Handle (CH) on
both Control Panels and Raise (R)
and Lower (L) to position the
HawkJaw middle wrench (MW)
near the drill pipe shoulder (S)
location.
Continued on next page...
Winch Hook-Up Winch Hook-Up
Installation 15
SR LTS
S MW
