Merrychef eikon e5 - Manual (Page 5)

Service & Parts Manual original Instructions
Part Number 32Z3814 US
Issue 1
5
Heater Element Catalytic Converter*
Convection Fan
(Top View)
PR
ODUC
T
DE
TAILS
PRODUCT OVERVIEW & FUNCTIONS 2
CONSTRUCTION
Stainless Steel. cavity and casework.
CONTROL SYSTEM
Colour touchscreen, icon driven.
Storage for up to 1024 programs with 6 stages per
cooking program providing a user instruction for
each stage.
USB memory stick data transfer.
Support for optional remote communications
Ethernet module.
Safety system: ensures control area temperature is
within limits.
MICROWAVE POWER
Two magnetrons.
Distribution system, rotating passive antennae.
Microwave settings, off or 5-100% in 1% increments.
Safety system: agency approved monitored
interlock door system, current monitoring and
overheat detection for magnetrons.
CONVECTED HEAT
Temperature settings 0°C off and from 100°C to
250°C in 1° C steps.
Distribution system, convection fan.
Safety system: oven cavity overheat detection.

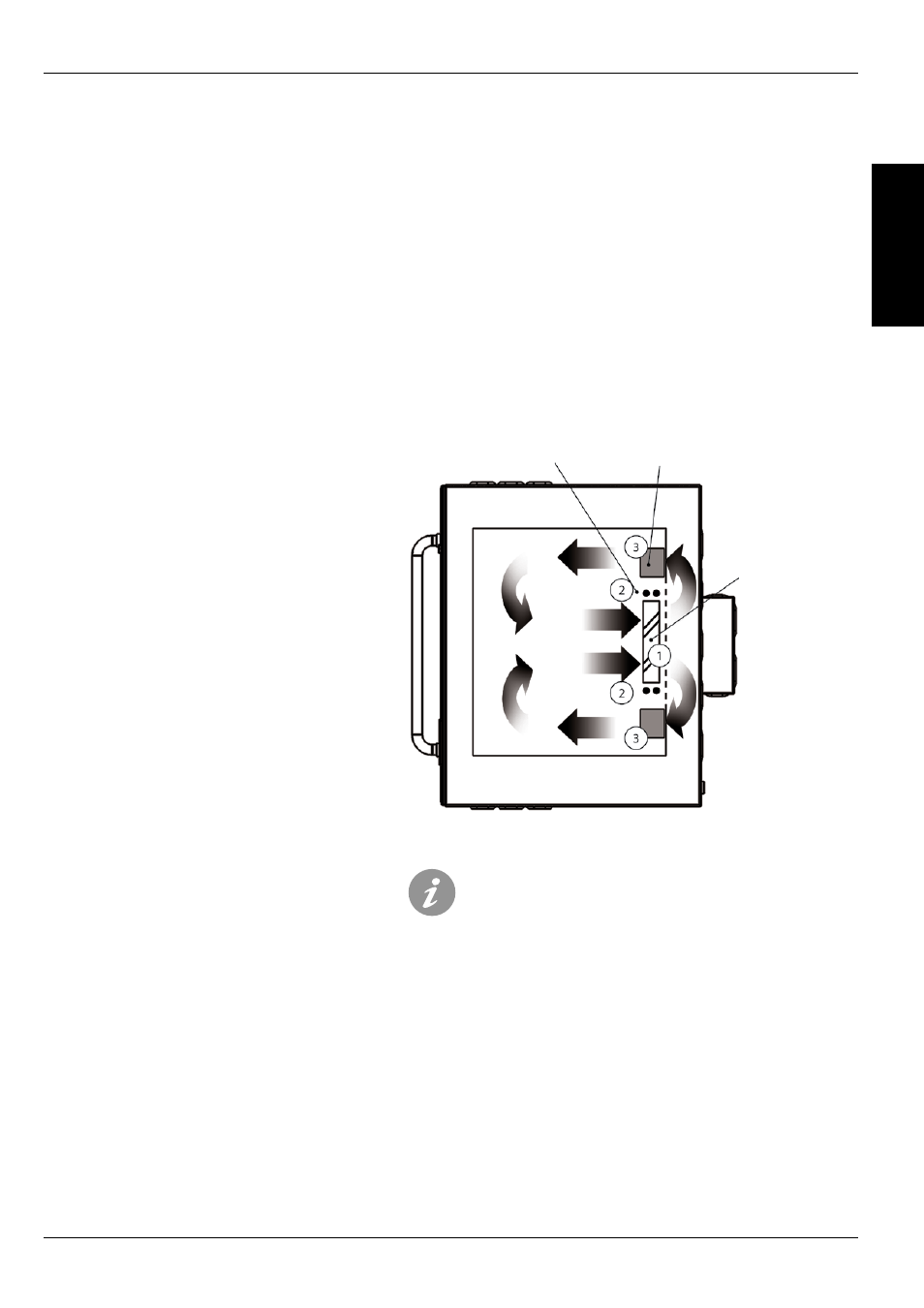

How it works:
The convection fan (1) draws air from the oven cavity,
circulating it over the heating elements (2) to obtain the set
temperature and through the catalytic converter (3)* to clean
the air before returning it to the oven cavity.
* e5C models only.
Start up Sequence
With the oven switch in the OFF position and the
mains power ON, the BTS & SRB boards boot up.
When the oven switch is turned ON the splash
screen briefly displays oven information and the
cabinet cooling fan is activated.
After completing a successful logic test, the safety
relay is energised and the oven preheats or displays
a preheat temperature choice. Once preheated the
oven displays the main menu if in FS mode or a
recipe selection if in QSR mode.
Shutting Down Sequence
When oven switch is turned OFF the screen displays
‘Shutting Down’ and the cooling fan operates until
the cabinet temperature has been sufficiently
reduced (cavity temperature of 50C).
The safety relay is de-energised and the BTS & SRB
boards remain active.
