Merrychef eikon e5 - Manual (Page 30)

30 Service & Parts Manual original Instructions
Part Number 32Z3814 US
Issue 1
TESTING
COMPONENT
S
A
Microwave Leakage Test 15.6
Note before measuring.
Make sure that the survey meter you are using ●
has been calibrated and is suitable for measuring
frequencies of 2,450 MHz.
Do not exceed meter full scale deflection, ●
leakage meter should initially be set to the
highest scale, then adjusted down as necessary
to ensure that low readings are measured on the
most sensitive range.
To prevent false readings, hold the probe on the ●
grip provided and move at 2.5cm/second.
Always hold the probe at right angles to the ●
oven and point of measurement, ensuring the
probe is reading 50mm from the test area.
With any casework removed the leakage should ●
not exceed 5mW/cm².
Procedure
Add 275ml of cold water into a 600ml 15.6.1
microwave safe container.
Place the 600ml container in the centre of oven 15.6.2
and close the door.

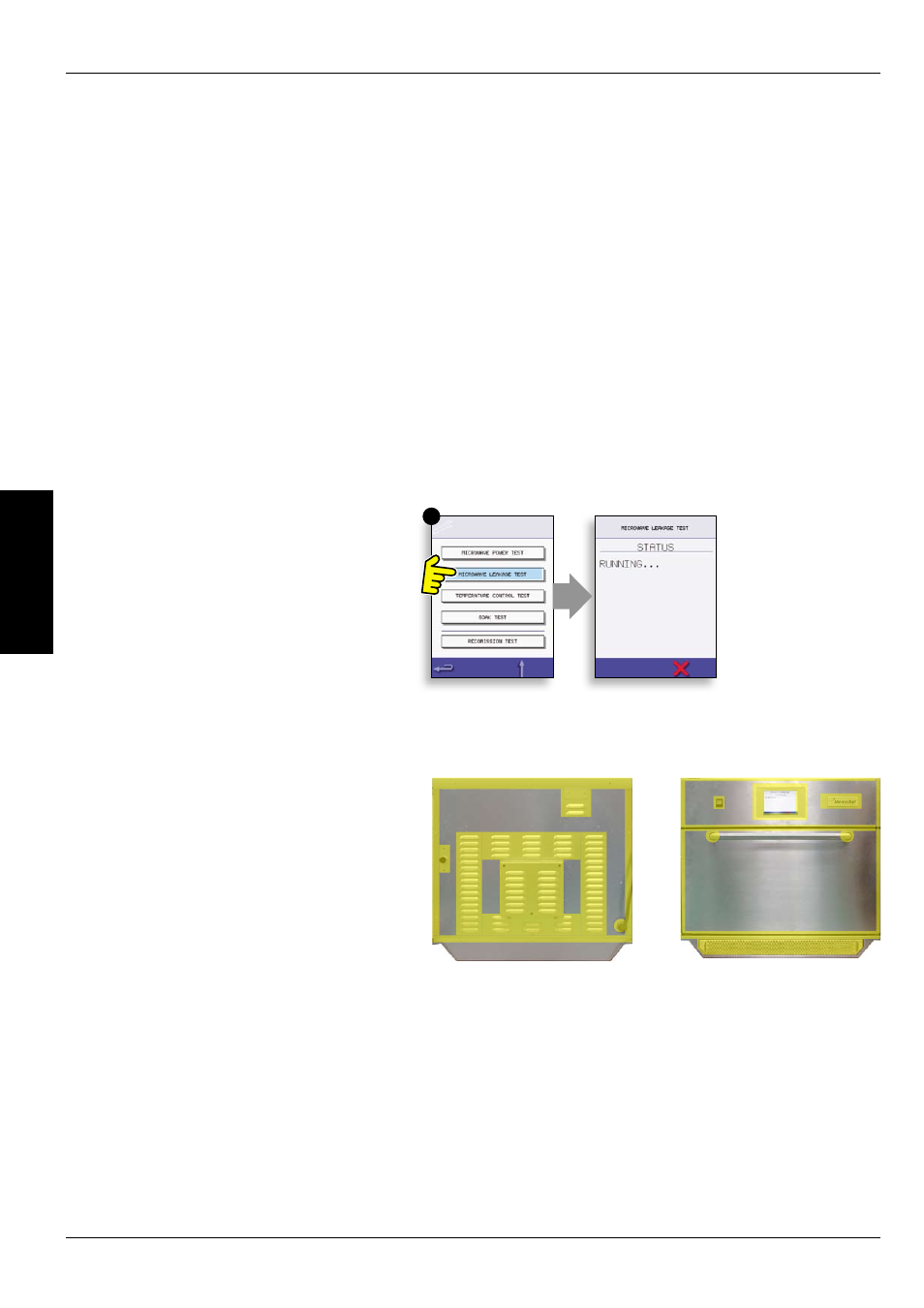

Enter Service mode and select ‘Microwave 15.6.3
leakage test’ (A) from the oven tests.
Set the leakage meter to the appropriate scale/ 15.6.4
range.
Move the survey meter probe across all 15.6.5
casework joins and vent areas including those marked
in yellow, shown opposite.
When the Magnetron circuit stops after 30 15.6.6
seconds, change the water and re-select the test to
continue.
Select the red ‘X’ on the display to stop the test 15.6.7
at any time.
Readings must be below 5mW/cm². If a level 15.6.8
greater than 5mW/cm² is observed, this should
be reported to Merrychef Service Department
immediately.
Notes should be kept of any leakage that is 15.6.9
observed in terms of the level and position on the
oven. This information should be kept with the service
documentation.
