Sp ares & repl a cement – Merrychef eikon e5 User Manual
Page 37
Service & Parts Manual original Instructions
Part Number 32Z3814 US
Issue 1
37

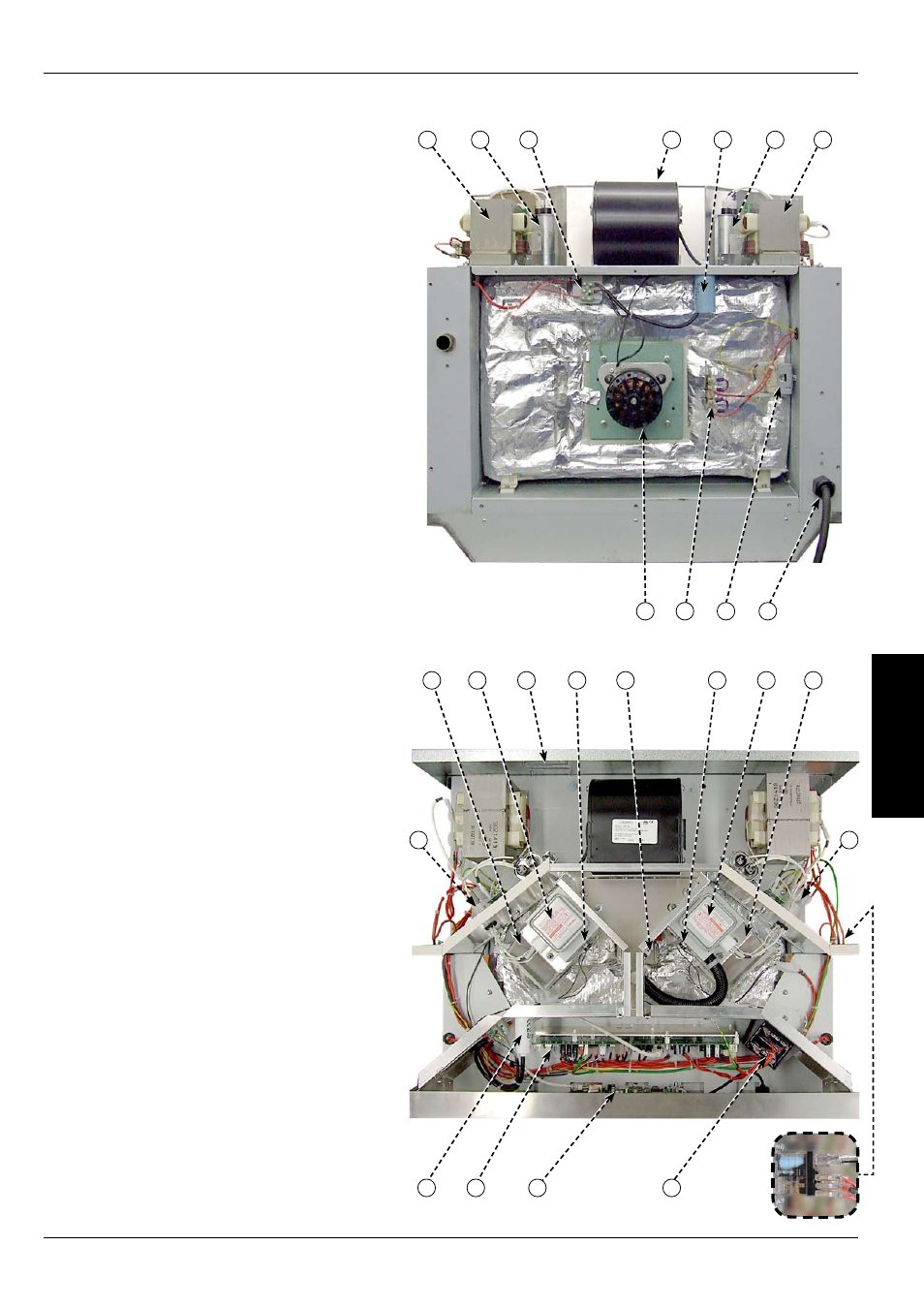

SP
ARES &
REPL
A
CEMENT
94
83
21
13
83
8
94
74
58
67
28
53
12
66
15
A
17
18
19
14
15
12
53
11
11
94 Transformer
83 HV capacitor
21 Connector block convection motor
13 Cooling fan motor
8 Capacitor 2μF (Blue) motor start
74 Motor assembly convection fan
58 Heater element x2 (connectors shown)
67 Overheat stat oven cavity
28 Gland Power supply cable
53 Wave guide LH
12 Magnetron LH
66 Speaker unit
15 Overheat stat Magnetron LH
A (Detail A) Stirrer motor assembly
15 Overheat stat Magnetron RH
12 Magnetron RH
53 Wave guide RH
17 Motor start capacitor 2.5µF
18 SRB Smart Relay Board with in-built 1.25A fuse
19 BTS Touch Screen PCB
14 Transformer 24v
11 Filter HT Transformer
