Innovate Motorsports LM-2 User Manual
Page 36
Document # 31-0008
LM2_Manual_1.3.doc
36
5.3.3
Wiring Analog Outputs

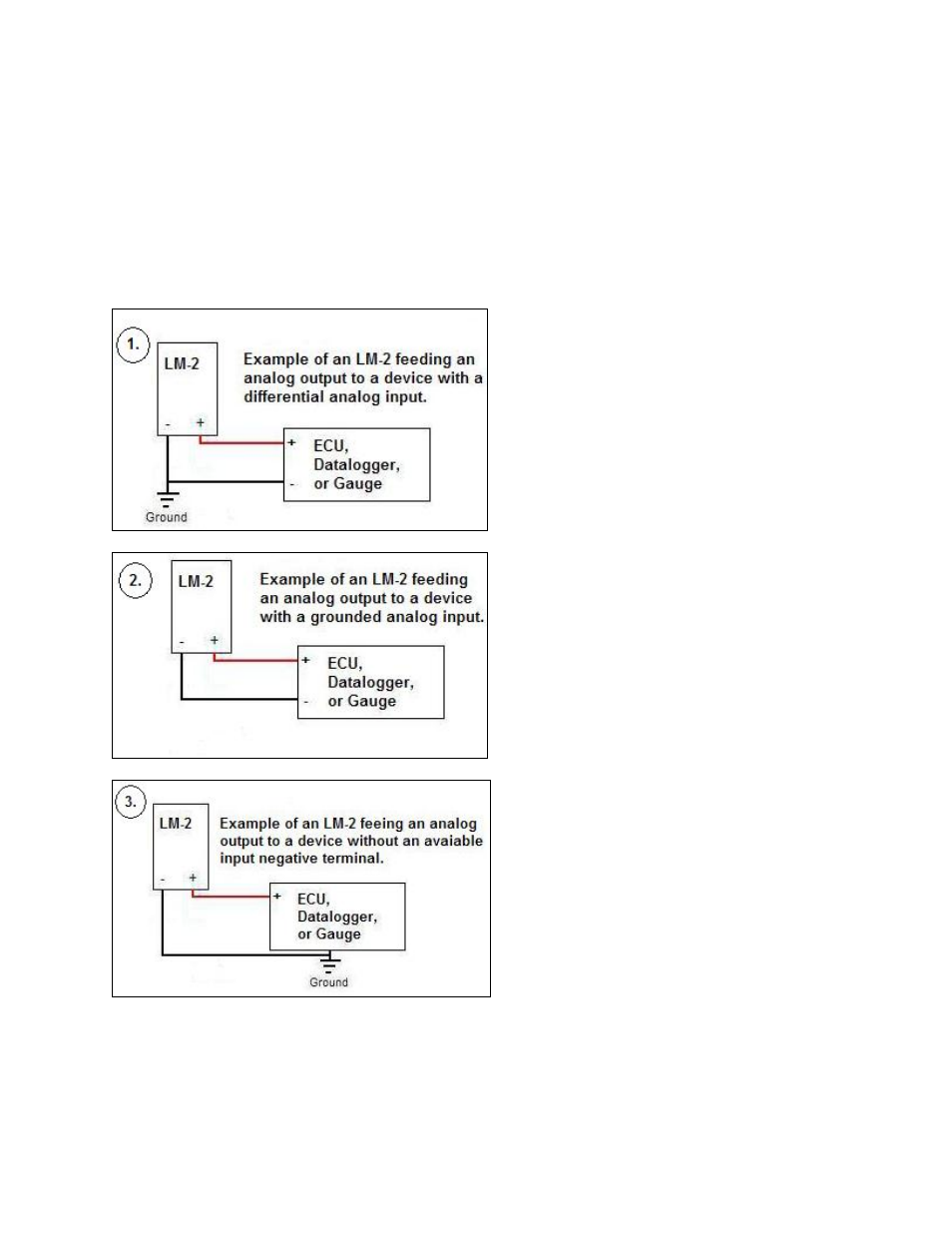

The analog outputs on the LM-2 are differential. As with the analog inputs, the negative
lead (-) must be connected to ground for the readings to be accurate. Below are the
three different ways the analog outputs of the LM-2 can be wired. If you are unsure
whether your analog input is differential or not you may wire the analog output as shown
in diagram 1.
