4.2 Selecting Channels on the LM-2
1. Press and hold the Mode button to go into the Configuration Menu Screen.
Select OBD-II and press the Enter button.
2. Select Configure OBD-II.

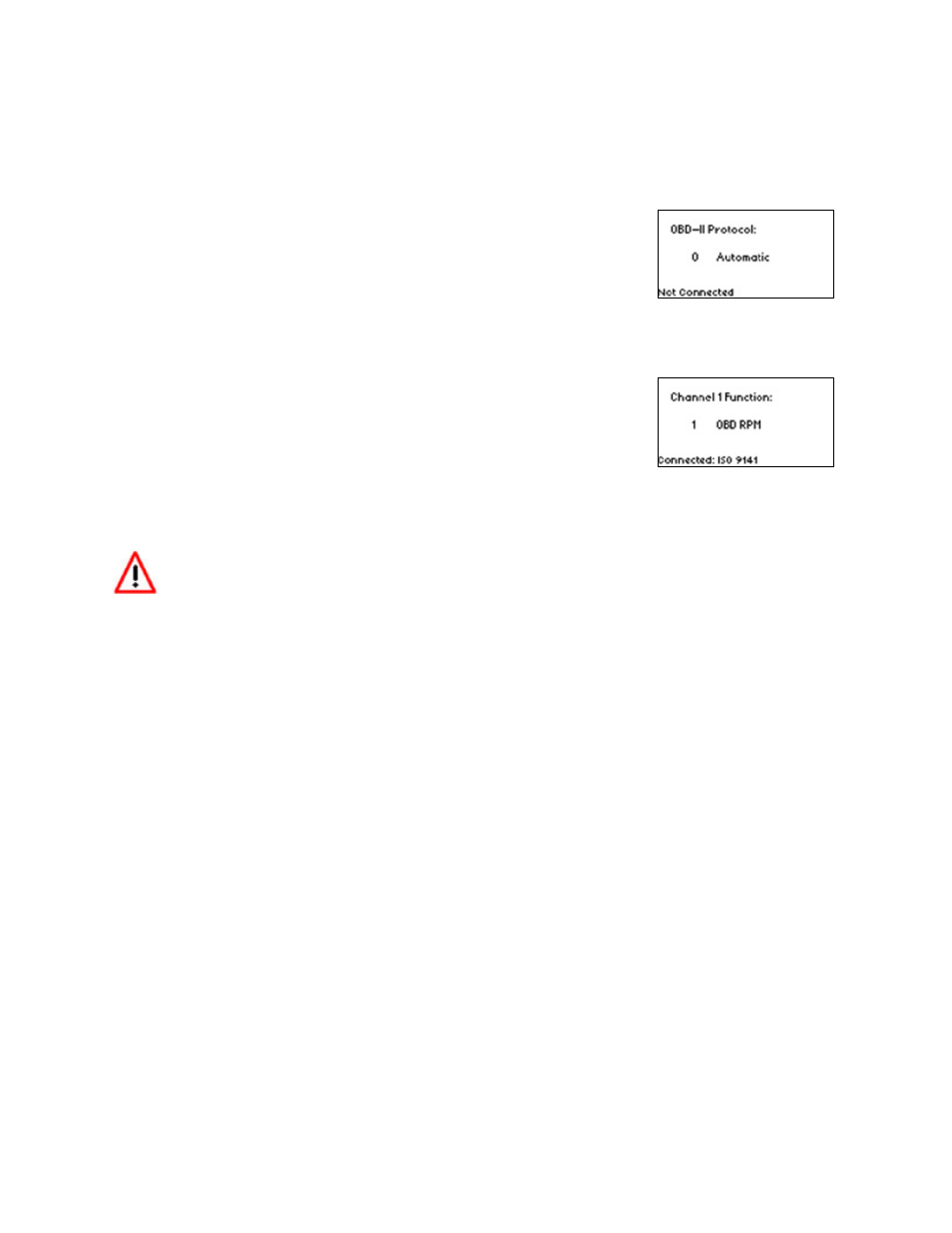

3. You will now be given the option to select a particular
OBD II protocol or you can leave it on ‘Automatic’ which
will scan all available protocol until it connects. Press
Enter.
4. Select the number of OBD II channels to read (A maximum of 16 channels can
be selected). It is recommended to start off with 2 to 3 channels to evaluate the
speed at which the ECU delivers data. Press Enter.
5. You will now be able to scroll through all available
channels and make your selection. Note: If you are
connected the unit will filter and only display the available
channels available by the ECU. Press Enter.
6. Chose if the channel is Low or High Priority. Please see
section 3.5 of the manual. Press Enter to move to the next channel.
7. After all channels have been selected the unit will return to the main screen.
If a PID (channel) is not available for the particular vehicle, the data will read 0)
