KH1508 / KH1516 User Manual
8

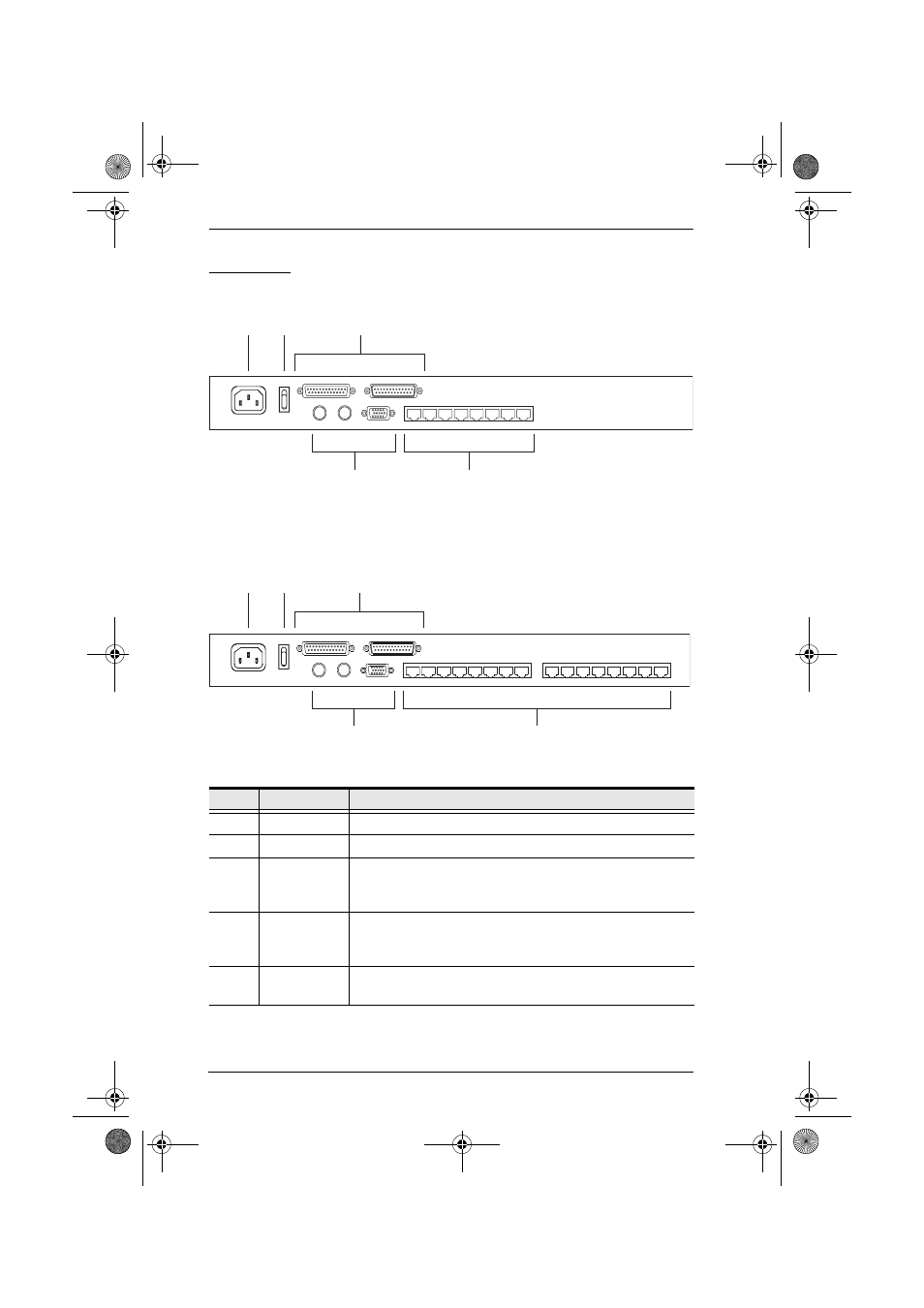

Rear View
KH1508
KH1516
No. Component Description
1 Power Socket
2 Power Switch
3 Daisy Chain
Ports When Daisy Chaining Units (see Daisy Chaining, page 15),
the daisy chain cables plug in here. The port on the left is the
Chain In port; the port on the right is the Chain Out port.
4 Local Console
Port Section If this is a Single Station installation, or if this is the First
Station of a daisy chained installation, the keyboard, monitor,
and mouse that make up the Local Console plug in here.
5 KVM Port
Section The Cat 5 cables that link to the KVM Adapter Cables (which
link to the computers) plug in here.
1 2 3
4 5
1 2
5 4
3
