ACT-IR100SL and IR100SL-M User’s Manual
Version 1.20
May 27, 2002
75LV4737
IR8200IC IR220VACF
TXDO
/RXDI
/MODE
/RESET
/RXD0
/TXD0
Optical
Transceiver
/TXD1
/RXD1
/RTS1
/CTS1
/DSR1
/DTR1
/CD1
/RI1
/RTS0
/DTR0
/RXDO
/TXDI
EEPROM
RTS
CTS
DSR
DTR
CD
RI
TXD
RXD
SEL0
SEL1
SEL2
:
:
/RTS1
/CTS1
/DSR1
/DTR1
/CD1
/RI1
/TXD
/RXD
2. Overview
The ACT-IR100S-L/LM is a IrDA-Ready intelligent adapter. This enables the host system with IrDA
communication capabilities. The host system may be a serial printer, a modem, an industrial
controller, a data collector, a medical instrument, or any other device, that may benefit from being
IrDA enabled.
The interface between ACT-IR100S-L/LM and the host is via a traditional asynchronous serial data
port (RS232C). Figure 2.1 shows the system block diagram.

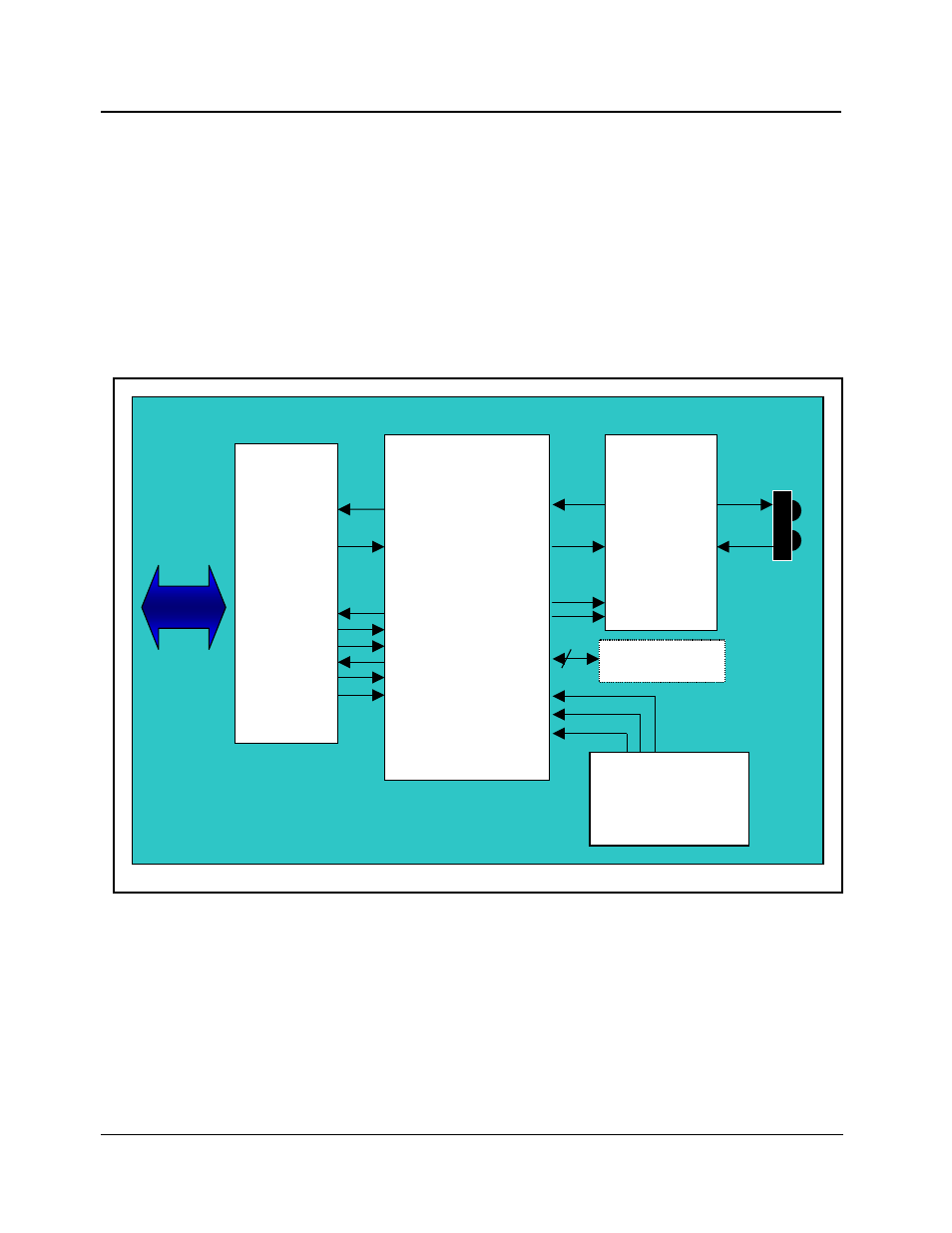

Figure 2.1 System Block Diagram
ACT-IR100S-L
Jumpers for Host
baud rate setting
and flow control
etc.
RS232C
