- 14 -

ACT-IR100SL and IR100SL-M User’s Manual

Version 1.20

May 27, 2002

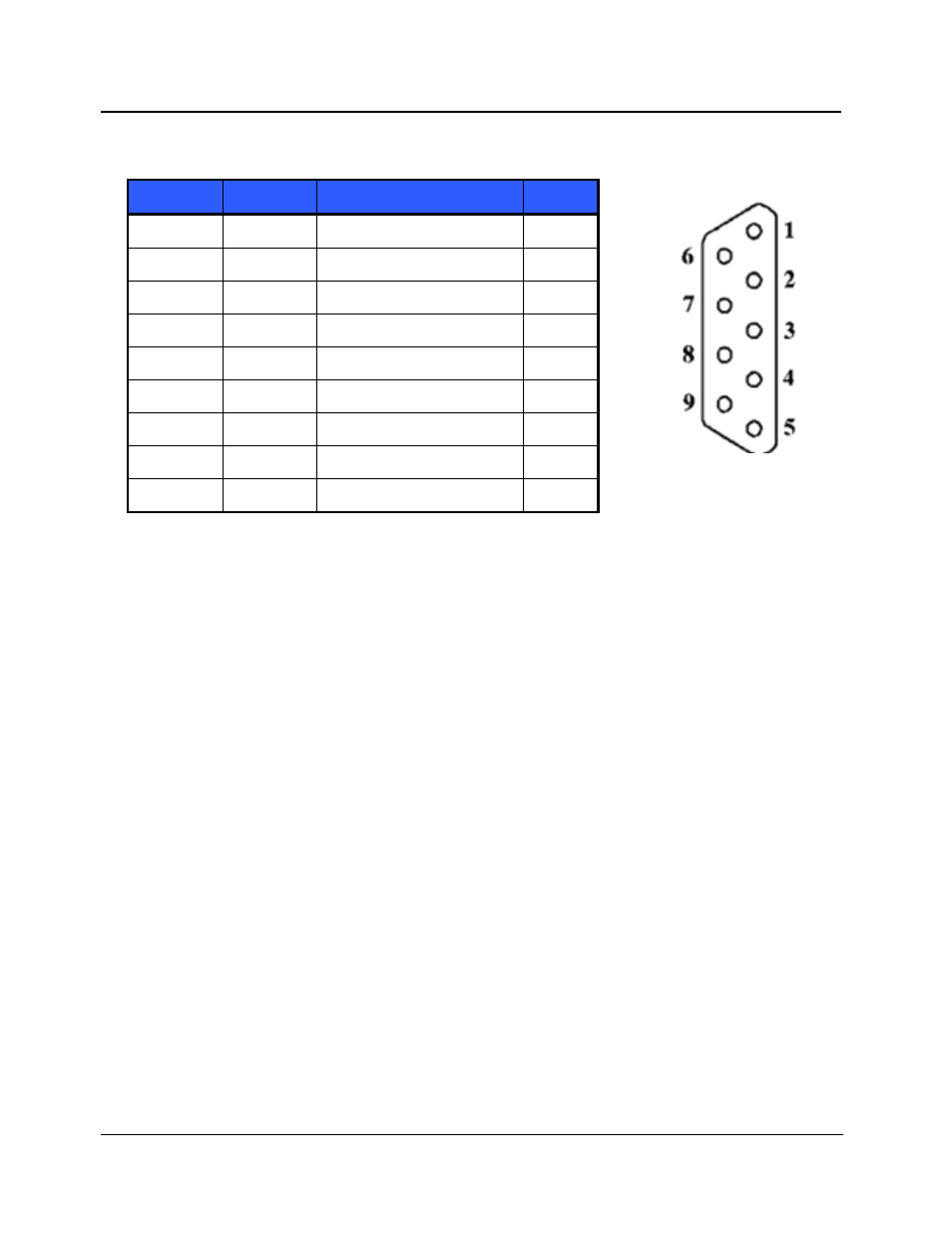

4.7 RS-232C DTE DB-9P Connector

Pin No.

Name

Descriptions

I/O

1 CD

Data Carrier Detect

I

2

RXD

Receiver

Data

I

3 TXD

Transmitter

Data

O

4 DTR

Data

Terminal

Ready O

5 GND

Signal

Ground

GND

6

DSR

Data Set Ready

I

7 RTS

Request

to

Send

O

8

CTS

Clear to Send

I

9 RI

Ring

Indicator

I

Front View
