- 16 -
ACT-IR100SL and IR100SL-M User’s Manual
Version 1.20
May 27, 2002

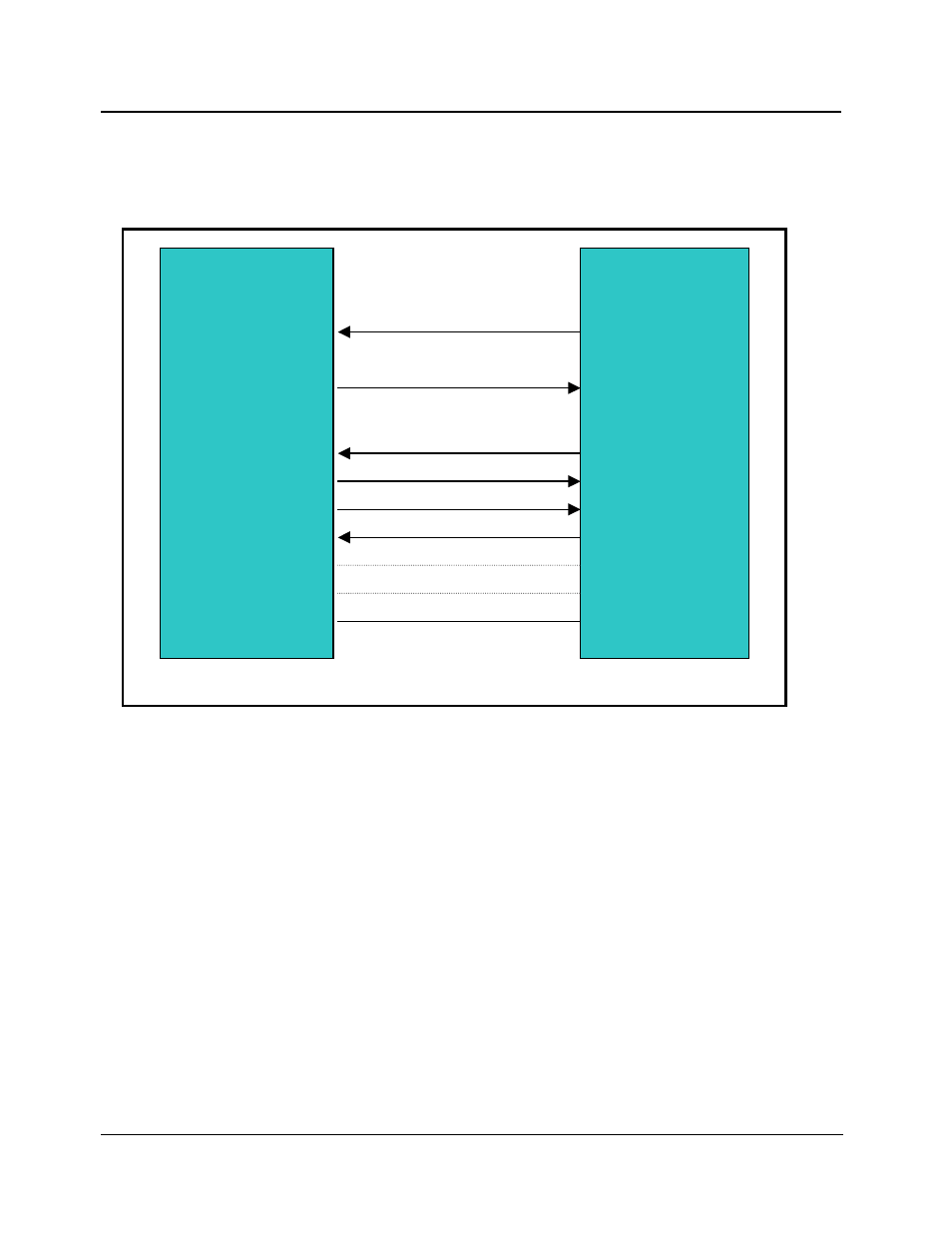

IR100S-L
TXD
RXD
RTS
CTS
DSR
DTR
CD
RI
GND
DTE
RXD
TXD
CTS
RTS
DTR
DSR
CD
RI
GND
If the host device is a PC like device and has a RS232 DTE port too, then you need to use a "Null
Modem" connection between the two. That is, in/out signal pairs need to be crossed.
