HT9012
EN - 6
4 OPERATING INSTRUCTIONS
4.1 INSTRUMENT DESCRIPTION
4.1.1 Commands description

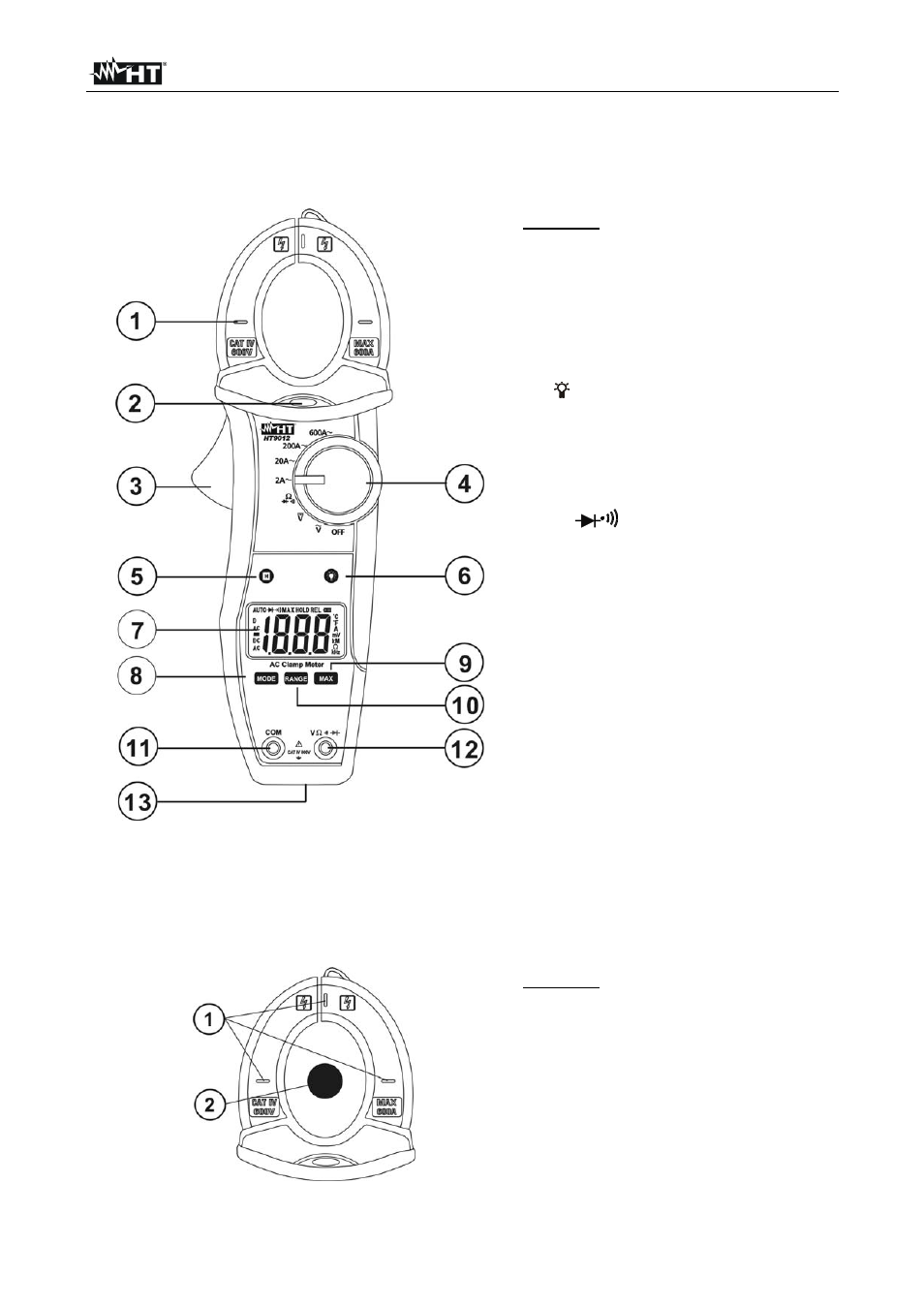

LEGEND:
1. Clamp jaw
2. Red LED for AC voltage
detection without contact
3. Clamp trigger
4. Rotary function selector
5. HOLD key
6.
backlight key
7. LCD display
8. MODE key
9. MAX key
10. RANGE key
11. COM input jack
12. V
Ω input jack
13. Battery cover
Fig. 1: Instrument description
4.1.2 Alignment
marks
Put the conductor within the jaws on intersection of the indicated marks as much as
possible (see Fig. 2) in order to meet the meter accuracy specifications
LEGEND
1. Alignment marks
2. Conductor
Fig. 2: Alignment marks
