Spectra Precision SP80 - Manual (Page 54)

English
48
Configuring the
UHF Module

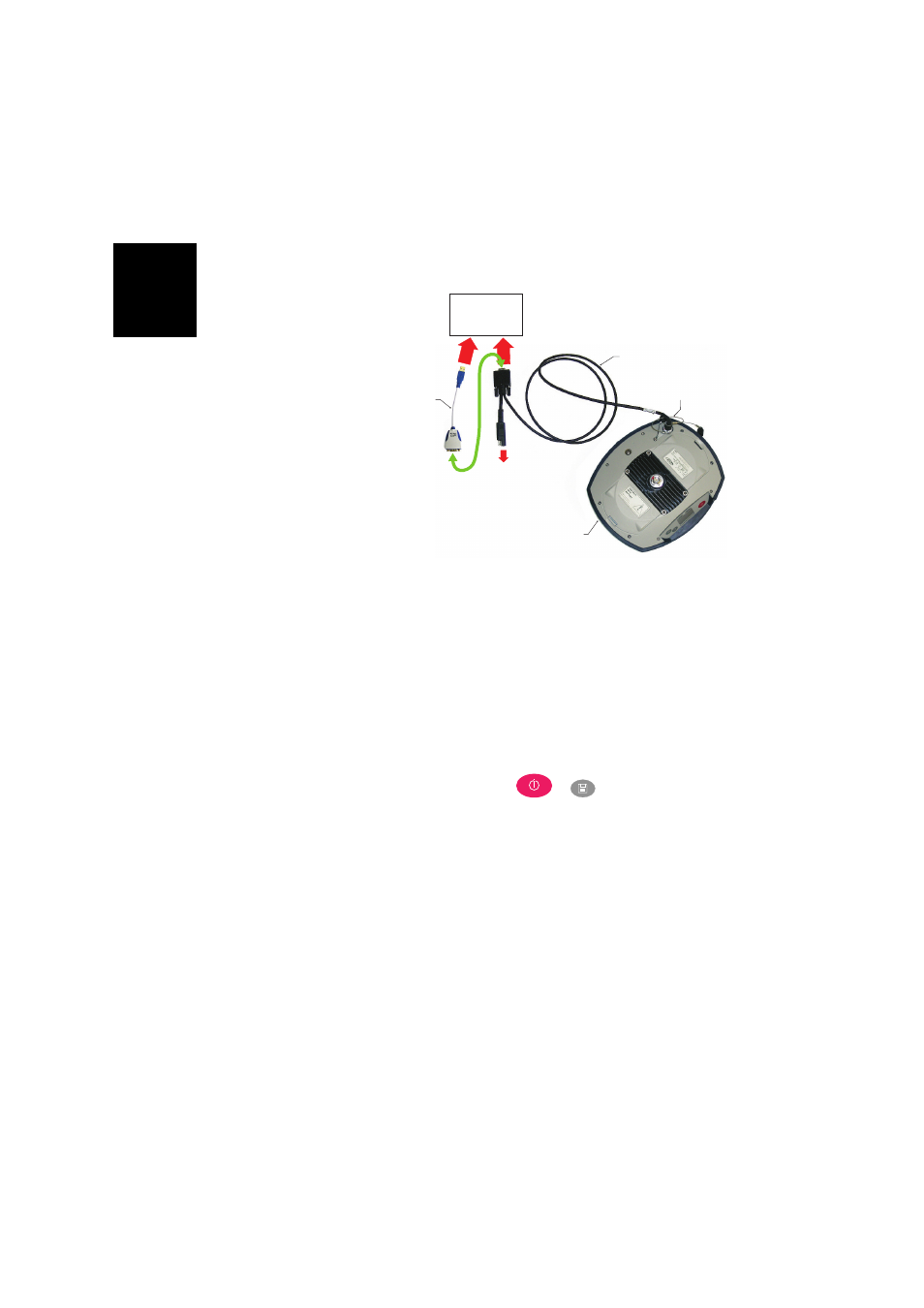

• Use cable P/N59044-10-SPN from the SP80 Office
Power Kit to connect the receiver to the computer (see
diagram below).
*: All these items are part of the SP80 Office Power Kit P/N 94336 (option).
Use the RS232-to-USB adapter cable if your computer is fitted with USB
connectors (and no DB9 connector).
NOTE: Cable P/N59044-10-SPN is a Y-shaped cable also
allowing you to power the receiver from an AC outlet (via
the AC/DC power block) rather than from the receiver
batteries (see also Charging Batteries, Scenario #2 on
page 36). When applied to the receiver’s DC input, the
external power source has priority over the internal
batteries, which means the battery or batteries can be left
safely inside the receiver (none of them will be drained).
• Press simultaneously + to switch the receiver
to Service mode. Through this mode, the receiver offers
direct access to the UHF module via the receiver’s port A.
• Run Pacific Crest ADLCONF software on the computer
and configure the radio to meet your requirements. Refer
to ADLCONF instructions to complete this step.
Power/Data Cable *
SP80
To Office
Computer
(If required, may be
connected to AC/DC
power block via
SAE/Jack Adapter Cable *)
RS232-to-USB
Adapter Cable *
RS232
Serial Port A
and DC Input
Via USB or DB9
